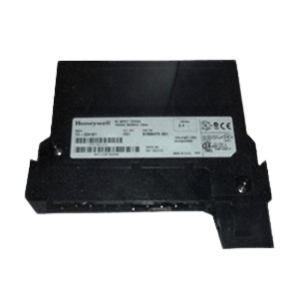

Honeywell TC-OAH061 Analog Output Module
Brand: Honeywell
Model Number: TC-OAH061
Type: Analog Output Module
Product Origin: China
Payment: T/T, Western Union
Dimensions: 96 x 96 x 48 mm
Weight: 1.1 kg
Certificate: CE, RoHS
Warranty: 1 year
Product Description
The HONEYWELL TC-OAH061 is a 6-channel, galvanically isolated analog output module that provides a high-precision, high-reliability solution for a wide range of industrial automation applications.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Honeywell |
| Product No. | TC-OAH061 |
| Product type | Analog Output Module |
| Number of points | 6 galvanically isolated channels |
| Output current range | 0 to 21.0 mA |
| Current resolution | 13 bits across 21 mA |
| Output overvoltage protection | 24 VAC/VDC continuous at room temperature |
| RFI immunity | Error of less than 2.0% of range at 10 V/m, 27 to 1000 MHz |
| Module update rate for all channels | 25 ms |
| Power dissipation | 6.7 W max |
| Isolation voltage (channel to channel) | 100% tested at 2546 V DC for 1 second |
| Isolation voltage (user to system) | 100% tested by 2546 for 1 second |
| Connection terminal blocks | TC-TBNH, 20-position terminal block |
| Shipping weight | 1.1 kg |
