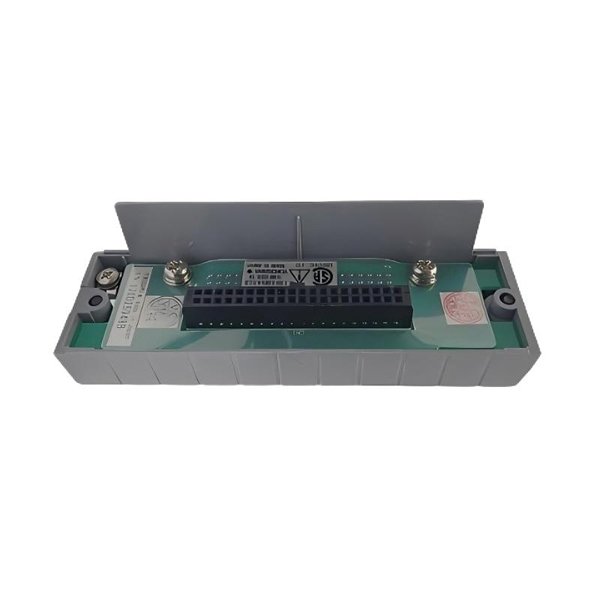

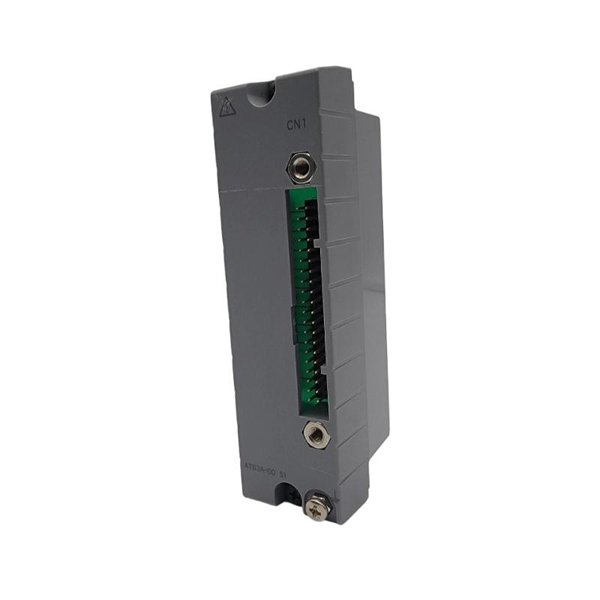

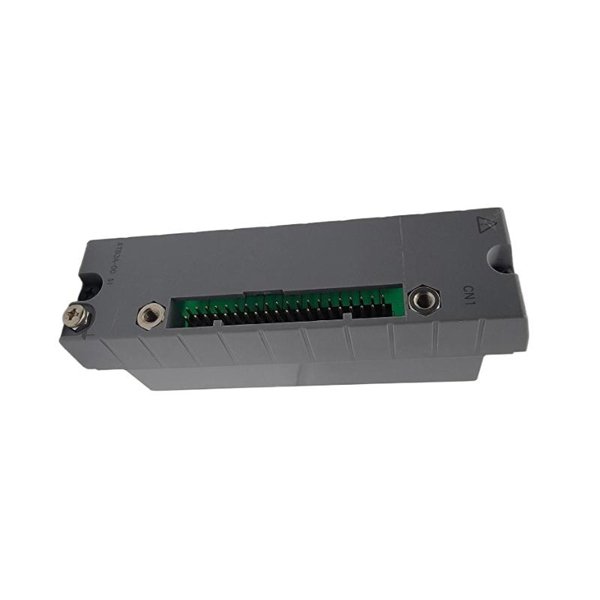

The Yokogawa ATB3A-00 pressure terminal block is designed to provide precise and reliable pressure measurement and monitoring in industrial environments. Built with durability and ease of integration in mind, the ATB3A-00 is a compact solution for controlling and monitoring pressure in pipelines, reactors, and other critical systems. This terminal block is ideal for applications where high performance and operational continuity are required. Its advanced design minimizes system downtime and ensures high-accuracy measurements in a variety of industrial settings, making it a valuable addition to automated control systems.

The ATB3A-00 is engineered to operate seamlessly in harsh industrial environments, offering a robust and space-efficient design. Its minimal size and low weight make it suitable for tight spaces while maintaining performance in temperature extremes and electrically demanding conditions.

Product Parameters

Applications

The ATB3A-00 is used in a wide range of industrial applications, providing an essential solution for pressure measurement in systems that require accuracy and reliability. Common applications include:

• Oil & Gas: It is used for monitoring pressure in pipelines, tanks, and pressure vessels, ensuring safe and efficient operations.

• Chemical Processing: Ideal for pressure measurement in reactors, tanks, and chemical transportation systems, where accuracy is crucial for safety and efficiency.

• Power Generation: The ATB3A-00 is employed in turbines, boilers, and cooling systems to monitor pressure levels and optimize energy production.

• Manufacturing & Automation: It is integrated into industrial automation systems to help regulate pressure in production processes and ensure consistent performance.

• HVAC Systems: Used in HVAC systems for pressure regulation, ensuring consistent airflow and energy-efficient heating and cooling operations.

Advantages

1. Compact and Lightweight: With a size of 114 x 32.6 x 38.8 mm and a weight of just 0.1 kg, the ATB3A-00 is easy to install in space-constrained environments without compromising performance.

2. Precise Pressure Measurement: The ATB3A-00 offers accurate pressure readings with minimal contact resistance (<1 ohm), ensuring stable and reliable data transmission for control systems.

3. Durable Design: The polycarbonate enclosure ensures the terminal block is resistant to chemical exposure and mechanical stress, making it suitable for demanding industrial environments.

4. Wide Operating Temperature Range: It can operate effectively within a temperature range of -40°C to 85°C, making it ideal for use in both hot and cold industrial settings.

5. Safety Features: With an insulation voltage rating of 500 VAC, the ATB3A-00 provides a high level of electrical safety, preventing faults in sensitive systems.

6. Easy Integration: The ATB3A-00 is designed for easy installation and quick integration into existing industrial control systems, reducing setup time and system downtime.

FAQ

1. What is the maximum pressure that the ATB3A-00 can handle?

   The ATB3A-00 is rated to handle up to 1000 psi, making it suitable for high-pressure applications in industries such as oil and gas and chemical processing.

2. What input voltage is required for the ATB3A-00?

   The ATB3A-00 operates on 24 VDC, which is a standard voltage used in most industrial control systems.

3. How does the ATB3A-00 ensure accurate pressure measurements?

   The ATB3A-00 provides accurate pressure readings with minimal contact resistance (<1 ohm), ensuring stable and reliable transmission of data to control systems.

4. What materials are used in the construction of the ATB3A-00?

   The ATB3A-00 is built with a polycarbonate enclosure, providing excellent resistance to chemicals, temperature extremes, and mechanical stress.

5. Can the ATB3A-00 be used in hazardous environments?

   Yes, the ATB3A-00 is designed to withstand harsh industrial environments. However, it’s essential to ensure compliance with local safety standards for specific applications.

6. What is the insulation voltage rating of the ATB3A-00?

   The ATB3A-00 is rated for an insulation voltage of 500 VAC, providing a high level of electrical safety, particularly in industrial environments.

7. What is the temperature range in which the ATB3A-00 operates?

   The ATB3A-00 can operate in temperatures ranging from -40°C to 85°C, making it suitable for both cold and hot industrial environments.

8. How is the ATB3A-00 installed into a system?

   The ATB3A-00 is designed for easy installation with clear and simple wiring connections, making it easy to integrate into existing control systems.

9. What safety features does the ATB3A-00 offer?

   The ATB3A-00 features high insulation resistance and durable construction, providing protection against electrical faults and ensuring safe operation in critical systems.

10. Is the ATB3A-00 suitable for outdoor use?

    Yes, the ATB3A-00 is suitable for outdoor use, as long as it is protected from extreme weather conditions and moisture to ensure optimal performance.
