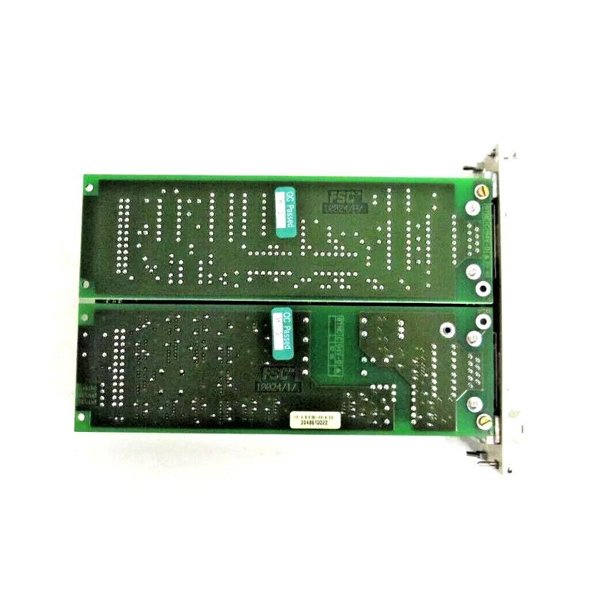

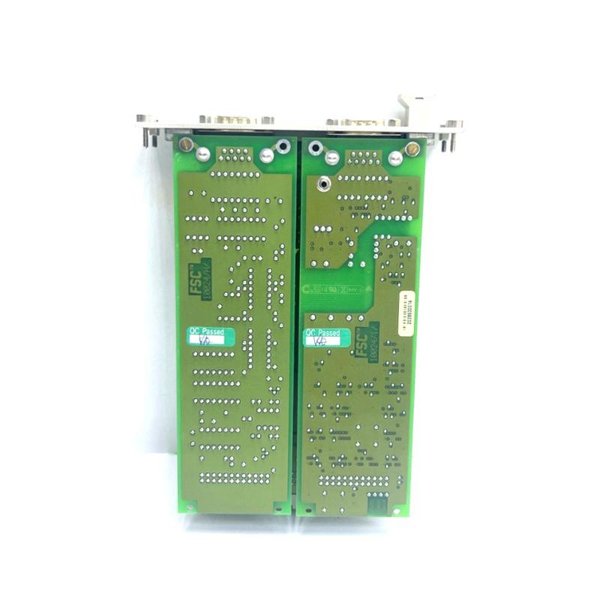

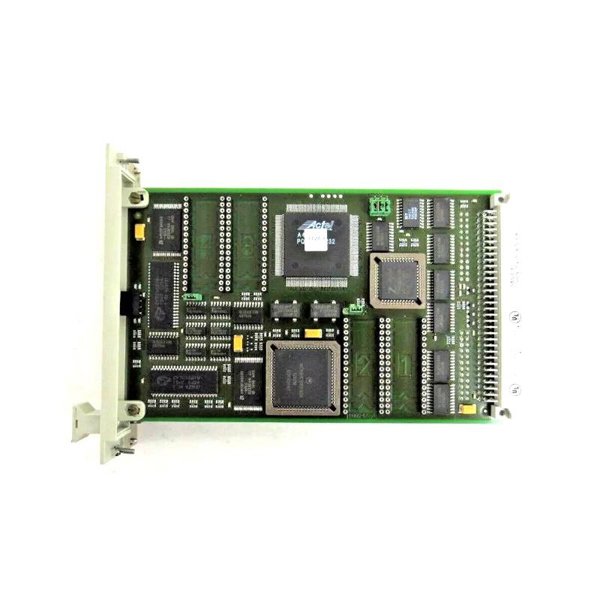

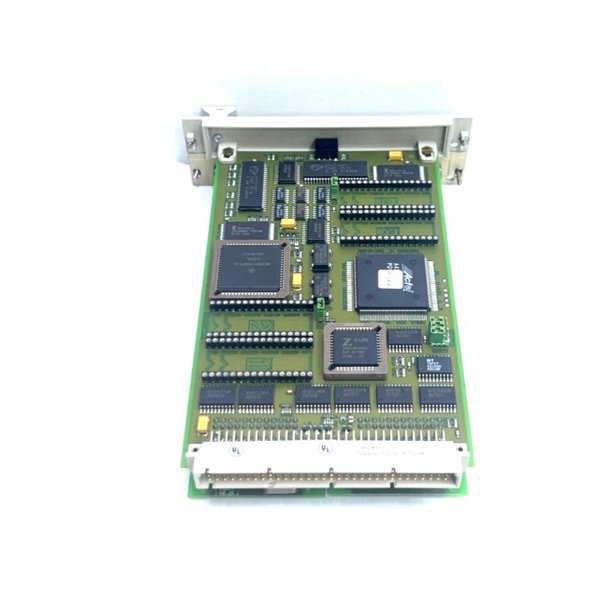

The Honeywell 10024/H/I is a communication module designed for the FSC (Fail Safe Controller) system. It provides reliable serial communication using RS422/485 protocols and includes internal computing capabilities for protocol handling. It is widely used in safety-critical industrial applications, ensuring secure and deterministic communication between control system elements.

Technical Specifications

Applications

• Emergency Shutdown Systems (ESD)

• Burner Management Systems (BMS)

• High Integrity Pressure Protection Systems (HIPPS)

• Distributed Control Systems (DCS) interface

• SIL-rated safety systems

• Critical infrastructure monitoring and communication

Advantages

• Integrated RS422/485 support for long-distance, noise-resistant communication

• Internal computing resources for protocol management reduce controller load

• Compact form factor fits into standard FSC chassis

• Designed for harsh industrial environments with robust build

• Ensures deterministic communication required for safety applications

• Fully compatible with Honeywell FSC and Safety Manager platforms

FAQ

Q1: What type of communication does the 10024/H/I support?

A1: It supports RS422 and RS485 serial communication protocols.

Q2: Can this module be used in safety-critical applications?

A2: Yes, it is specifically designed for use in Honeywell’s FSC safety systems.

Q3: Does the 10024/H/I include internal processing capability?

A3: Yes, it features an internal computing processor for protocol handling.

Q4: What are the physical dimensions of the module?

A4: 40 × 130 × 160 mm.

Q5: What is the weight of the module?

A5: 0.5 kg.

Q6: Is this module hot-swappable?

A6: No, it should be installed during system maintenance with power off.

Q7: What Honeywell system is this module compatible with?

A7: It is compatible with the FSC (Fail Safe Controller) system.

Q8: What is the operating temperature range?

A8: It operates reliably between 0°C and 60°C.

Q9: Is the module compliant with industrial safety standards?

A9: Yes, it complies with SIL-rated safety system requirements.

Q10: Can this module be replaced with other variants in the 10024 series?

A10: Yes, depending on interface requirements (e.g., RS232, dual RS485).
