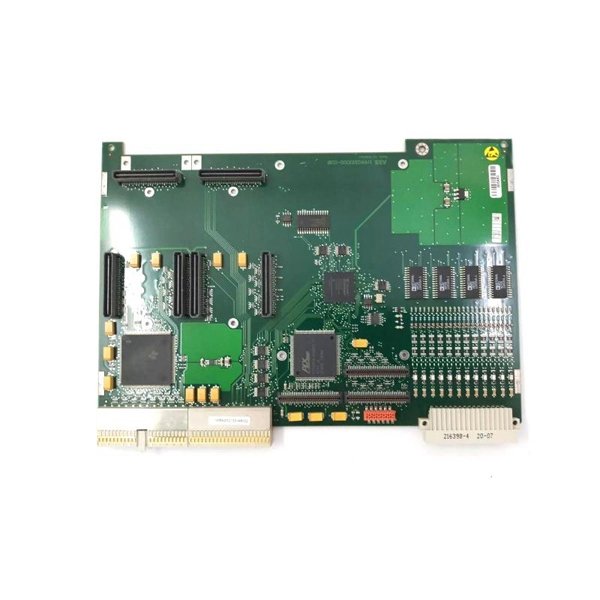

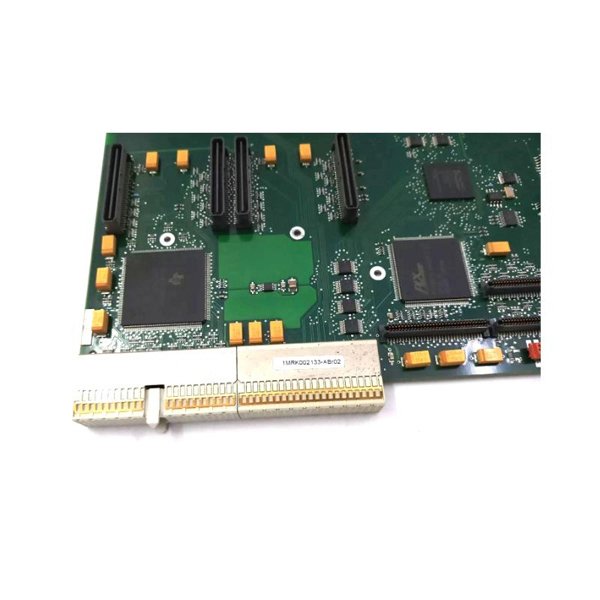

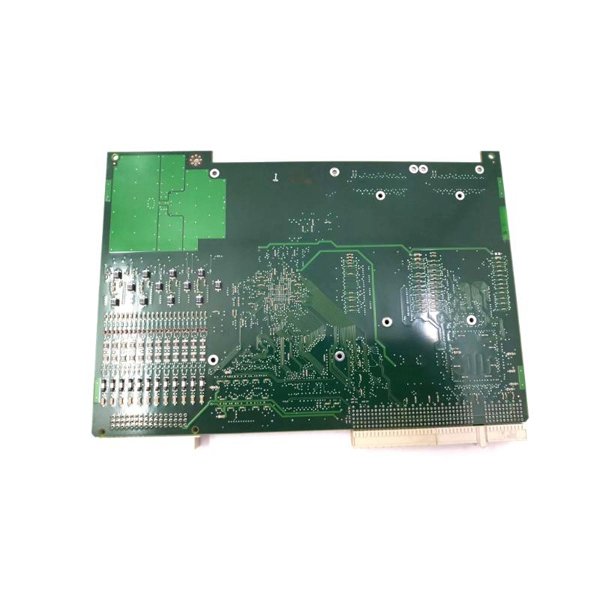

The ABB 1MRK002133-ABR02 Binary I/O Module is a versatile and high-performance component designed to handle binary input and output signals within industrial automation systems. It is a part of ABB’s extensive range of I/O modules, specifically engineered to provide efficient, scalable, and reliable solutions for controlling machines and equipment in diverse industries. This module is commonly used in control panels, PLC systems, and process automation environments, where robust binary I/O management is crucial.

The ABB 1MRK002133-ABR02 is ideal for applications that require seamless integration, ease of installation, and high system reliability. It is particularly useful in industrial environments where space is limited but where I/O capabilities must be highly dependable.

Product Specifications

Product Applications

The ABB 1MRK002133-ABR02 Binary I/O Module is designed for use in a wide range of industrial and automation applications, including:

1. Industrial Automation: Widely used in manufacturing processes for controlling and monitoring machinery and automated systems.

2. Control Systems: Ideal for use in PLC-based systems where reliable binary inputs and outputs are required for system control.

3. Energy Management: Can be integrated with energy meters and power systems to monitor power usage and system health.

4. Building Automation: Perfect for controlling HVAC, lighting, and security systems in commercial and residential buildings.

5. Safety Systems: Utilized in critical applications such as emergency shutdown systems and alarm management.

Product Advantages

1. Compact Design: The small footprint of the module (120mm x 90mm x 60mm) ensures it fits into smaller control cabinets and spaces, making it ideal for installations with limited space.

2. Wide Operating Temperature Range: Capable of operating in temperatures ranging from -20°C to +60°C, the module is suitable for various industrial environments, including harsh conditions.

3. High Reliability: Designed for continuous operation in demanding applications, ensuring minimal downtime and optimal performance.

4. Cost-Effective: A cost-efficient solution for managing binary I/O functions, providing high performance at a reasonable price.

5. Easy Installation: The module can be easily mounted on DIN rails and has screw terminal connections for simple wiring and installation.

6. IP20 Protection: The module has an IP20 protection rating, which offers protection against dust and physical contact, making it suitable for indoor industrial environments.

7. Modbus RTU/ASCII Protocol Support: Allows easy integration with other industrial systems and devices, making it a flexible choice for a variety of control applications.

8. Scalable: This module can be easily expanded with additional I/O modules to meet the growing needs of larger systems.

FAQ

1. What is the input/output configuration of the ABB 1MRK002133-ABR02 module?

   • The module features 8 binary inputs and 8 binary outputs, enabling comprehensive control and monitoring capabilities.

2. What is the operating voltage for the ABB 1MRK002133-ABR02?

   • The module operates at a standard 24V DC voltage, which is commonly used in industrial automation systems.

3. How is the ABB 1MRK002133-ABR02 module mounted?

   • The module is designed for DIN rail mounting, which is the most common method for installing industrial automation components.

4. What is the temperature range for the module?

   • The module operates within a temperature range of -20°C to +60°C, making it suitable for most industrial environments.

5. What is the protection rating of the ABB 1MRK002133-ABR02?

   • The module has an IP20 protection rating, which provides protection against dust and physical contact but is not suitable for outdoor or wet environments.

6. What is the weight of the ABB 1MRK002133-ABR02 module?

   • The module weighs 0.4 kg, making it lightweight and easy to handle during installation.

7. Can this module be integrated with other ABB systems?

   • Yes, the module supports Modbus RTU and ASCII communication protocols, allowing for easy integration with other ABB control systems and devices.

8. What types of systems is the ABB 1MRK002133-ABR02 suitable for?

   • It is ideal for use in industrial automation, energy management, control systems, building automation, and safety-critical applications.

9. What are the connection types for the ABB 1MRK002133-ABR02 module?

   • The module uses screw terminal connections for simple wiring and installation in control panels.

10. How does the ABB 1MRK002133-ABR02 enhance industrial automation systems?

    • The module enhances automation systems by providing reliable, scalable, and cost-effective binary I/O control, ensuring efficient monitoring and control of machinery and processes.
