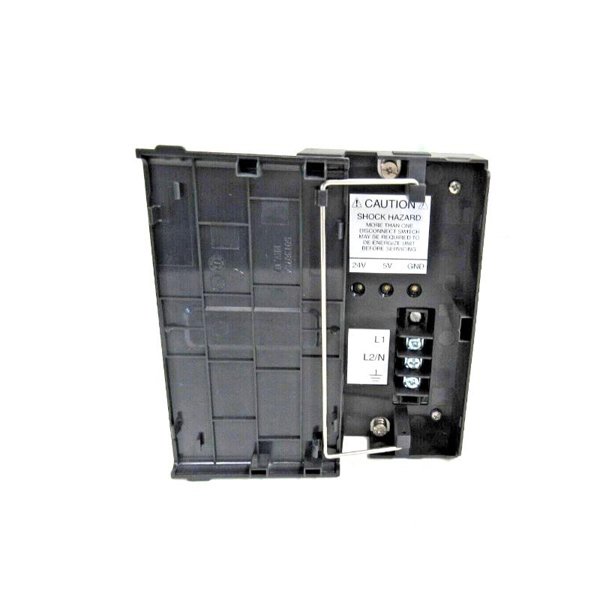

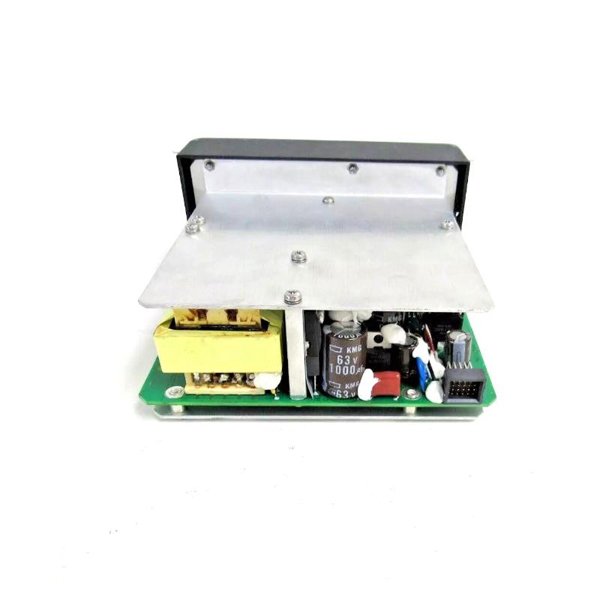

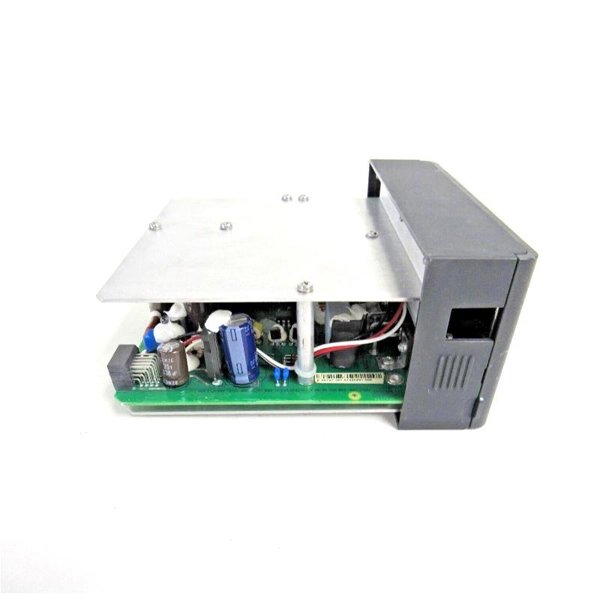

The Honeywell 900P02-0301 is a compact and efficient 28W AC power supply module designed for the HC900 process and safety controller systems. It provides regulated 5 VDC and 24 VDC outputs to the backplane, supporting low I/O capacity or redundant controller configurations. With reliable performance in industrial automation and control systems, it fits 4-slot, 8-slot, and 12-slot HC900 racks.

Technical Specifications

Applications

• HC900 Controller Systems: Ideal for low-load applications or as a secondary redundant power supply in HC900 CPU racks.

• Remote I/O Racks: Suits installations with minimal power requirements.

• Process Automation: Used in applications requiring compact, efficient, and reliable power supply within Honeywell’s HC900 platform.

Product Advantages

• Compact Size: Fits all standard HC900 rack sizes, making it easy to integrate.

• Redundant Support: Commonly used for redundant controller power supply applications.

• Reliable Power: Delivers regulated voltages with integrated protection.

• Easy Installation: Designed for simple rack mounting and integration.

• Robust Design: Suitable for harsh industrial environments.

FAQs

Q1: What is the primary function of the 900P02-0301 module?

A1: It supplies regulated 5 VDC and 24 VDC power to HC900 controller or I/O racks.

Q2: Can it be used in redundant power configurations?

A2: Yes, it is commonly used as a secondary power unit in redundant systems.

Q3: Is it compatible with all HC900 rack sizes?

A3: Yes, it fits 4, 8, and 12-slot HC900 controller and I/O racks.

Q4: What protection is built into the module?

A4: It includes an internal 5A non-replaceable fuse for current protection.

Q5: Does it support both 120V and 240V AC inputs?

A5: Yes, it accepts universal 120/240 VAC input.

Q6: What are its output voltage levels?

A6: The module outputs 5 VDC and 24 VDC for rack devices.

Q7: Is the power supply hot-swappable?

A7: No, it should be installed or replaced with power off for safety.

Q8: What is the recommended use case for this module?

A8: Low I/O systems or as part of a redundant power supply setup.

Q9: How is the module mounted?

A9: It mounts directly into the HC900 rack system.

Q10: Is there any visual status indication?

A10: Yes, it includes power status LEDs on the front panel.
