Manufacturer:Yokogawa
Product Number:SNB10D-425/CU2T
Product Type:Safety Node Unit
Origin:Japan
Dimensions:482.6 x 221.5 x 205 mm
Weight:5.9 kg
Views:23
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

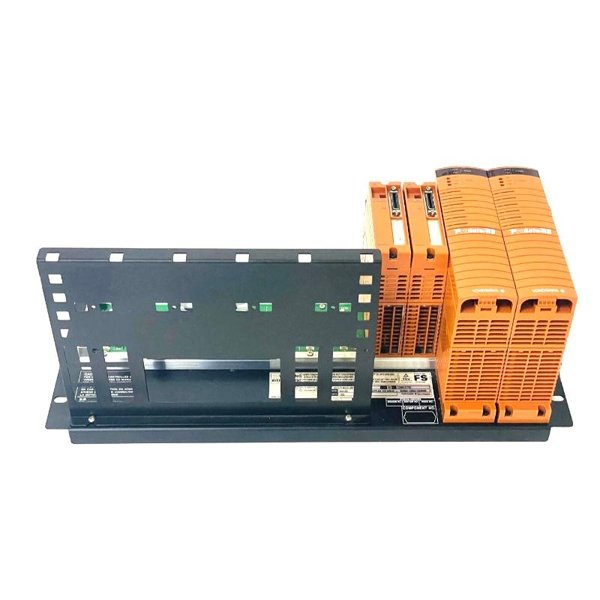

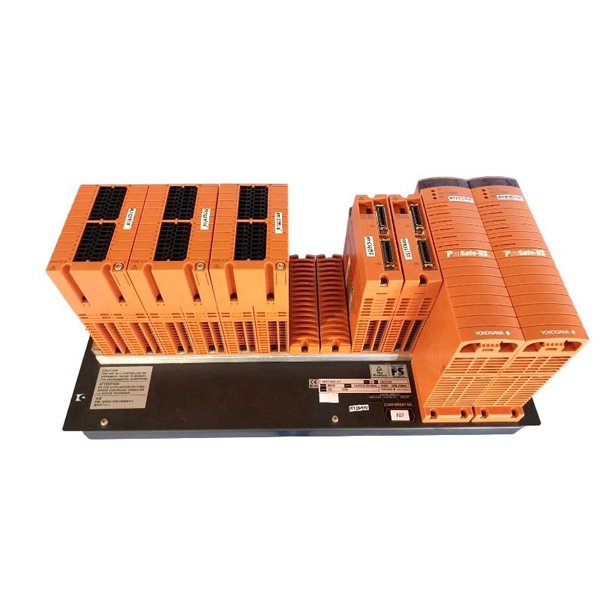

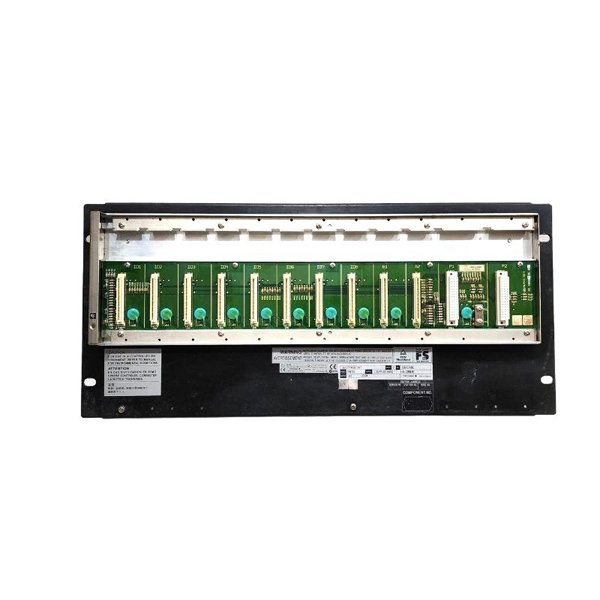

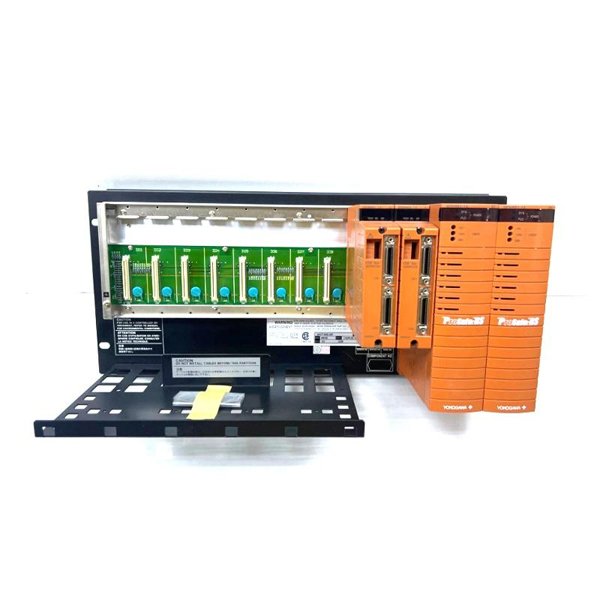

The Yokogawa SNB10D-425/CU2T Safety Node Unit is a rack-mountable module designed for integration into ProSafe-RS Safety Instrumented Systems. It facilitates reliable transmission of analog and discrete input signals from field devices to the safety control unit while providing stable power to connected I/O modules. Its robust design ensures compliance with industrial safety standards in critical applications.
| Parameter | Specification |
|---|---|
| Model | SNB10D-425/CU2T |
| Power Supply | 100–120 V AC / 220–240 V AC / 24 V DC |
| Power Consumption |
100–120 V AC: 200 VA
220–240 V AC: 230 VA 24 V DC: 5.5 A |
| Dimensions | 482.6 × 221.5 × 205 mm |
| Weight | 5.9 kg |
| Mounting | Rack-mounted (4 × M5 screws, insulation bushes included) |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Connectable Units |
Up to 13 (with SEC402 ESB bus coupler)
Up to 9 (with SEC401 ESB bus coupler) |
| Conformity | ProSafe-RS safety standards |
The SNB10D-425/CU2T is ideal for safety-critical industrial environments including:
Process automation plants
Power generation facilities
Chemical and petrochemical plants
Oil & gas installations
Manufacturing systems requiring SIL-compliant safety operations
It ensures secure and reliable communication between field devices and the central safety control system.
Redundant power supply support for high reliability
Rack-mountable design for space efficiency
Dual ESB bus interface modules for improved signal integrity
Supports multiple safety node units for scalable safety architectures
Wide operating and storage temperature range
Compliant with stringent industrial safety standards
1. What is the purpose of the SNB10D-425/CU2T?
It provides reliable signal transmission and power supply for safety I/O modules in ProSafe-RS systems.
2. Can multiple units be connected together?
Yes, up to 13 units can connect using the SEC402 ESB bus coupler and 9 units using SEC401.
3. What are the supported power supply types?
100–120 V AC, 220–240 V AC, and 24 V DC.
4. What is the operating temperature range?
-10°C to +55°C.
5. What is the unit’s weight and dimensions?
Dimensions: 482.6 × 221.5 × 205 mm; Weight: 5.9 kg.
6. Can this unit be mounted in a standard rack?
Yes, it is rack-mountable using four M5 screws with insulation bushes.
7. Does the SNB10D-425/CU2T comply with safety standards?
Yes, it meets ProSafe-RS safety standards.
8. What kind of I/O modules can it support?
It supports analog and discrete input I/O modules compatible with ProSafe-RS.
9. Is the unit suitable for hazardous environments?
Certain suffix options provide compliance with explosion-protection standards; check the model code for specifics.
10. How is the ESB bus interface configured?
It uses dual SSB401 interface modules to maintain secure communication between nodes.
