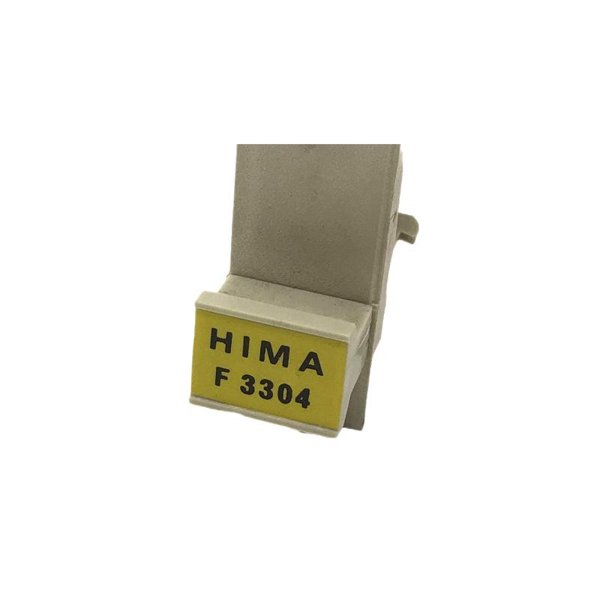

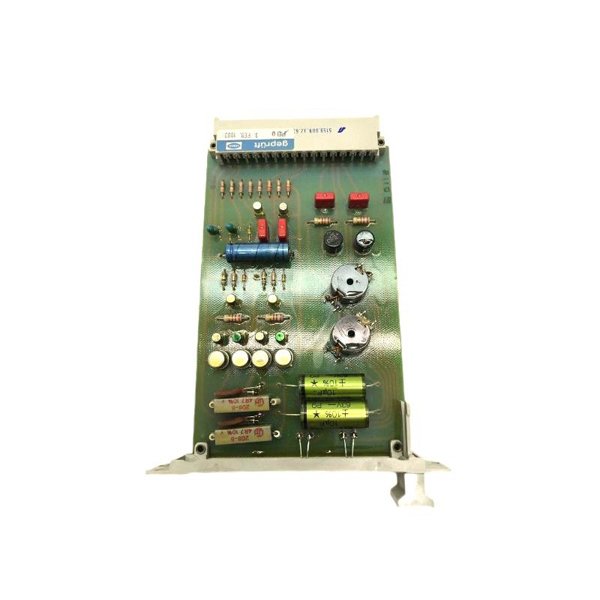

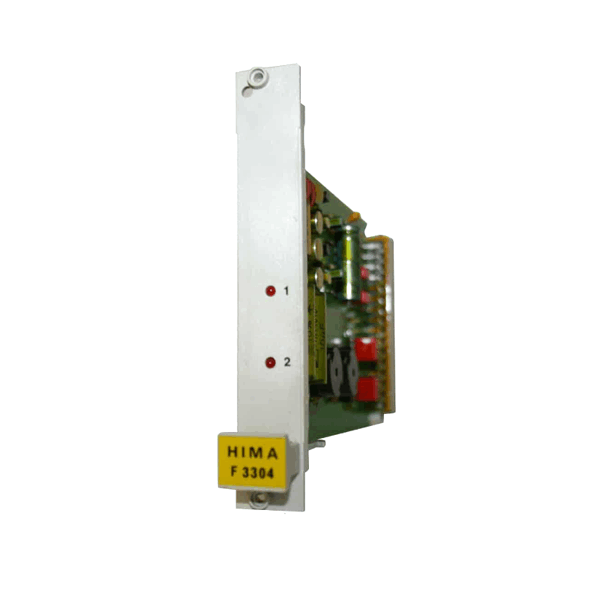

The HIMA F3304 Input Module is a vital component of the HIMA Safety System, primarily used for industrial safety applications requiring high reliability and precision. This module is specifically designed to offer a robust solution for monitoring digital input signals in safety-critical systems. It is suitable for applications in industries such as chemical processing, oil and gas, power generation, and pharmaceuticals, where safety and uptime are of paramount importance.

The F3304 Input Module is built with HIMA’s trusted fault-tolerant technology, providing exceptional performance and ensuring continuous, reliable system operation. It is part of the HIMA modular safety system, designed to be integrated easily into larger safety networks, offering scalability and flexibility for diverse industrial setups.

Product Specifications

Applications

The HIMA F3304 Input Module is widely used in industries where safety and operational efficiency are critical. Below are the common applications:

1. Chemical and Petrochemical Industry: Used for monitoring various digital input signals, such as pressure switches, flow meters, and temperature sensors, in hazardous process environments.
2. Oil and Gas: Ensures the safe operation of offshore platforms and refineries by continuously monitoring inputs from safety systems, such as emergency shutdown systems (ESD).
3. Power Generation: Monitors critical input signals from turbines, boilers, and generators, ensuring safe operation of power plants and preventing potential equipment failures.
4. Pharmaceutical Industry: Provides input monitoring for equipment and systems that control temperature, humidity, pressure, and other critical factors in pharmaceutical manufacturing environments.
5. Automated Manufacturing: In factory automation, the F3304 is used to monitor sensors, switches, and other inputs, ensuring accurate control of automated processes.

Advantages

1. High Fault Tolerance: The F3304 Input Module is built with Triple Modular Redundancy (TMR) technology, ensuring that it continues to function even if one of the modules fails. This high level of fault tolerance is crucial in safety-critical applications.
2. Flexible Integration: Designed for easy integration with HIMA’s HIMax Safety System, the F3304 Input Module supports a wide range of industrial applications and can be used in combination with other HIMA modules for scalable system setups.
3. High Reliability: Built with high-quality components, the F3304 offers exceptional reliability, making it ideal for mission-critical environments where failure is not an option.
4. Scalability: With its modular design, the F3304 allows for easy system expansion as more inputs are required, making it perfect for applications with growing or changing demands.
5. Optical Isolation: Each input is optically isolated, providing enhanced protection against electrical noise and other disturbances, which improves system longevity and operational efficiency.
6. Safety Certification: The F3304 complies with IEC 61508 SIL 3 and ISO 13849 PL e standards, ensuring it meets the highest safety requirements for industrial applications.
7. Ease of Installation: The module can be mounted easily on a standard Din rail, simplifying installation and reducing setup time in complex industrial environments.
8. Wide Operating Range: Capable of operating in temperatures between -20°C and +60°C, the F3304 is ideal for use in a variety of industrial environments, including harsh conditions.
9. Low Power Consumption: The module operates on a nominal 24 VDC power supply, ensuring energy efficiency while providing reliable input signal processing.
10. Long-Term Durability: The rugged design and high-quality construction make the F3304 Input Module highly durable, ensuring long-term service in demanding industrial applications.

FAQs

1. What industries use the HIMA F3304 Input Module?

   • The HIMA F3304 is used in various industries, including chemical, oil and gas, power generation, pharmaceuticals, and automated manufacturing.

2. What is the input voltage range for the HIMA F3304?

   • The F3304 supports an input voltage range of 20 VDC to 30 VDC.

3. How many inputs does the F3304 module support?

   • The module supports 8 digital inputs, designed to monitor digital signal devices.

4. Can the HIMA F3304 Input Module be integrated into an existing safety system?

   • Yes, the F3304 is compatible with the HIMA HIMax Safety System, making it easy to integrate into existing safety control networks.

5. Is the F3304 Input Module certified for safety?

   • Yes, the module is certified to IEC 61508 SIL 3 and ISO 13849 PL e, making it suitable for high-risk safety applications.

6. What kind of fault tolerance does the F3304 provide?

   • The F3304 uses Triple Modular Redundancy (TMR), ensuring that the system remains operational even if one module fails.

7. What is the operating temperature range of the F3304?

   • The F3304 operates in temperatures ranging from -20°C to +60°C, suitable for a variety of industrial environments.

8. How does the F3304 handle electrical interference?

   • Each input on the F3304 is optically isolated, reducing the risk of electrical interference and increasing system reliability.

9. How is the F3304 module mounted?

   • The F3304 module is designed for easy installation on a standard Din rail, simplifying setup and reducing installation time.

10. What is the power supply requirement for the F3304?

• The F3304 operates on a 24 VDC power supply, making it energy efficient for long-term industrial use.
