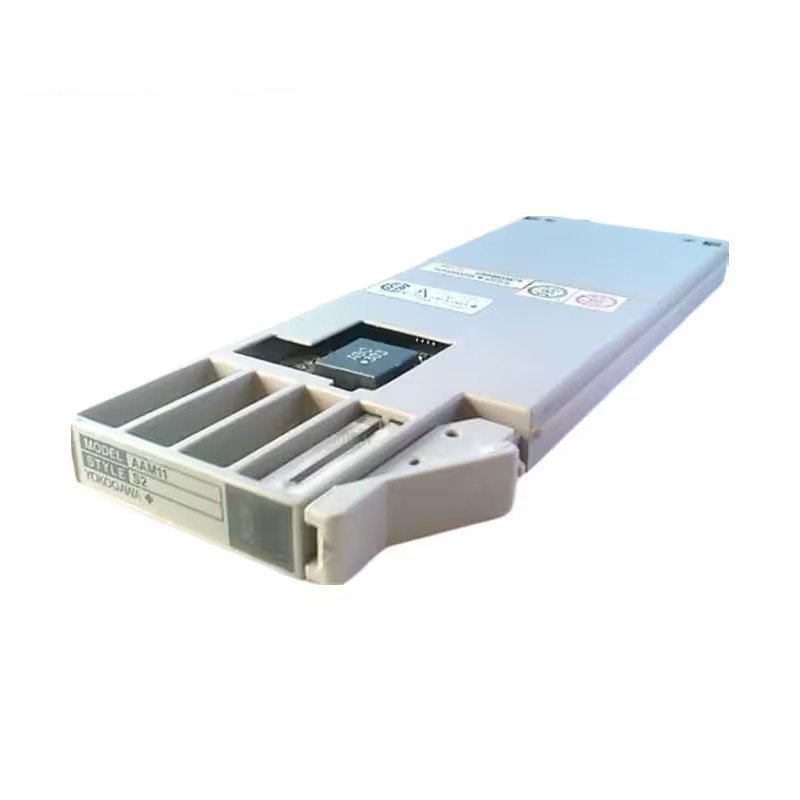

Yokogawa AAM11 Current Voltage Input Module

The Yokogawa AAM11 is an analog input module designed for industrial automation systems, particularly those utilizing Yokogawa Centum CS and Centum VP control systems. It serves the crucial role of converting analog signals (either current or voltage) from field instruments into digital signals, which are then processed by the control system. The module’s rugged design ensures reliable performance in harsh industrial environments, offering high accuracy and versatility across a variety of applications.

Technical Specifications

• Input Types:
  • Current (4-20 mA, 0-20 mA)
  • Voltage (0-10 V, 1-5 V)
• Signal Conversion: Analog-to-digital conversion for precise signal processing.
• Accuracy:
  • High accuracy in signal conversion ensuring data integrity for control systems.
• Operating Temperature Range:
  • Typically -20°C to 60°C (-4°F to 140°F).
• Power Supply:
  • 24 V DC (typical).
• Dimensions:
  • 3.0″ x 1.0″ x 7.0″ (7.6 cm x 2.5 cm x 17.8 cm).
• Weight:
  • 1.54 lbs
• Environmental Conditions:
  • Designed for use in industrial environments with a wide operating temperature range.
• Compatibility:
  • Integrates seamlessly with Yokogawa Centum CS and Centum VP control systems.
• Certification:
  • Complies with international standards for industrial automation systems.
