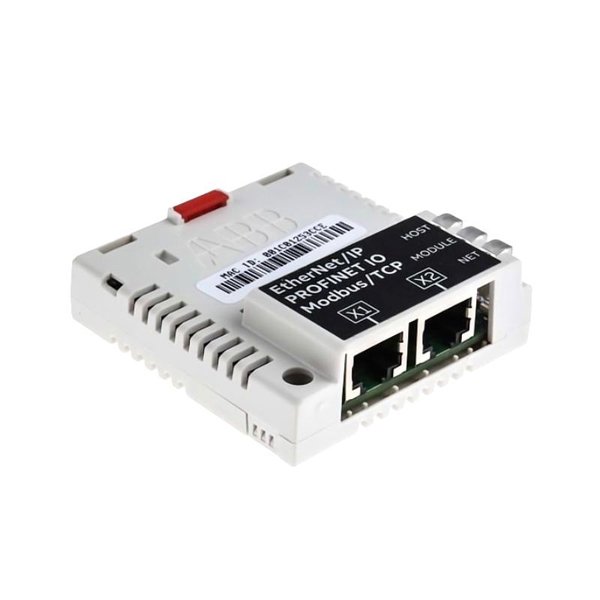

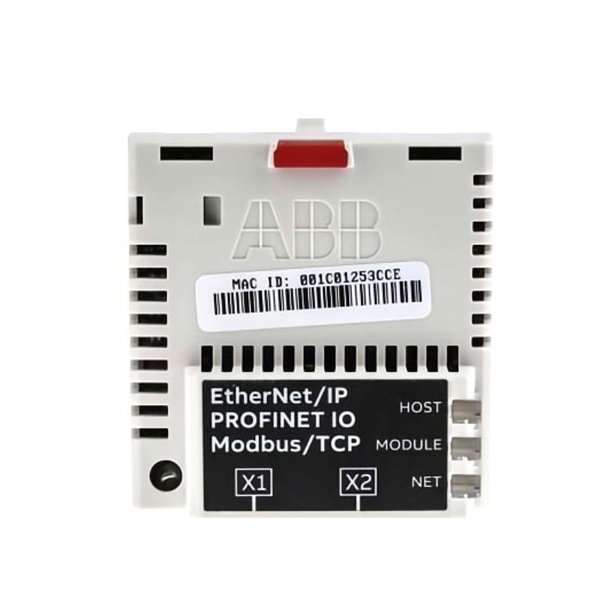

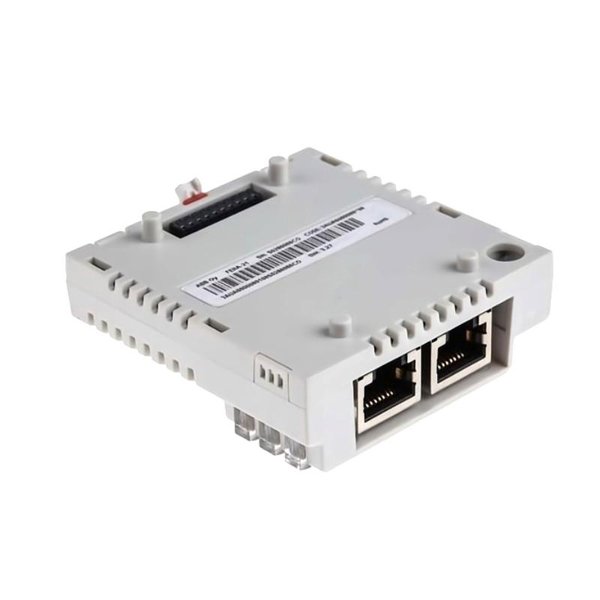

ABB FMBT-21 3AXD50000192717 Modbus/TCP Adapter Module
Manufacturer:ABB
Product Number:FMBT-21 3AXD50000192717
Product Type:Modbus/TCP Adapter Module
Origin:Sweden
Dimensions:405 × 140 × 450 mm
Weight:4.1 kg
Views:54
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB FMBT-21 is an advanced Modbus/TCP communication adapter module, designed to enable Ethernet-based industrial connectivity for ABB’s low voltage AC drives. This module allows ABB drives to seamlessly communicate over Modbus/TCP networks, making it an essential component for modern automation systems requiring reliable Ethernet-based fieldbus communication.
Engineered to plug directly into the drive’s fieldbus port, the FMBT-21 adapter provides efficient and deterministic control and monitoring capabilities in real time. It is fully compatible with Modbus/TCP protocol standards and integrates ABB drives into Ethernet-based architectures including SCADA, PLC, and DCS systems. The unit also supports easy commissioning and diagnostics with built-in web tools and LED status indicators.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | ABB FMBT-21 Modbus/TCP Adapter Module |
| Part Number | 3AXD50000192717 |
| Communication Protocol | Modbus/TCP (Ethernet-based) |
| Supported Network Types | 10/100 Mbps Ethernet (IEEE 802.3 compliant) |
| Connector Type | RJ-45 (x2, internal switch for daisy-chaining) |
| Drive Compatibility | ABB ACS355, ACS580, ACS880, and other ACS Series |
| Max Devices per Network | 247 devices (standard Modbus limit) |
| Status Indicators | Integrated dual-color LEDs for link, activity, error |
| Configuration Tools | Built-in web server (via browser), Drive composer |
| IP Address Assignment | DHCP / Static IP support |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | CE, RoHS, UL, cUL |
| Dimensions (H x W x D) | 405 × 140 × 450 mm |
| Weight | 4.1 kg |
| Enclosure Rating | IP20 (when installed in drive) |
Applications
The FMBT-21 Modbus/TCP Adapter is engineered for a wide range of industrial applications where Ethernet-based communication is required for drive integration. These include:
Building Automation Systems
Integrates HVAC systems and energy management components into central controllers using Modbus/TCP.
Process Industry Automation
Ensures stable communication between ABB drives and SCADA/DCS systems for oil & gas, chemical, and pharmaceutical sectors.
Water and Wastewater Treatment
Provides Ethernet connectivity for pump and blower control applications across treatment plants.
Material Handling and Conveyors
Enables seamless operation and status reporting of motors in automated warehouse and logistics systems.
Food and Beverage Production Lines
Allows precise speed control and real-time feedback for mixers, conveyors, and packagers.
Power Plants and Renewable Energy
Offers reliable and scalable Ethernet interfacing for motor-driven subsystems in turbines, solar farms, or biomass stations.
Key Advantages
Ethernet Modbus/TCP Connectivity
Provides standardized, high-speed communication over widely used Ethernet networks.
Built-in Web Configuration
Easily configure and diagnose the adapter using any standard web browser—no additional software needed.
Dual Ethernet Ports
Integrated Ethernet switch allows for daisy-chaining of multiple devices without needing an external switch.
Drive Compatibility
Fully plug-and-play with most ABB ACS drives, eliminating the need for additional mounting hardware.
High Data Throughput
10/100 Mbps support ensures rapid data transfer, ideal for real-time automation applications.
Diagnostic LEDs
Immediate visual feedback for link status, activity, and fault detection ensures fast troubleshooting.
Compact Form Factor
Space-efficient design fits within ABB drive enclosures while maintaining proper airflow.
Future-Proof Networking
Enables migration from serial to Ethernet infrastructure, aligning with Industry 4.0 initiatives.
Frequently Asked Questions (FAQ)
Q: Which ABB drives are compatible with the FMBT-21 adapter?
A: It supports various models including ACS355, ACS580, ACS880, and other ACS series drives.
Q: Does the FMBT-21 support DHCP for dynamic IP assignment?
A: Yes, it supports both DHCP and static IP configuration.
Q: Can I connect multiple devices using the built-in ports?
A: Yes, the adapter includes two Ethernet ports with an internal switch for daisy-chaining.
Q: Is additional software required for setup?
A: No, configuration can be done via a web browser through the built-in web interface.
Q: Does this adapter support redundant networking?
A: No, it supports basic Ethernet networking without redundancy protocols like RSTP.
Q: How do I know the communication status?
A: Status LEDs provide clear indicators for link status, communication activity, and error states.
Q: Is the adapter powered externally?
A: No, the FMBT-21 is powered directly from the drive it’s connected to.
Q: Can it be used in high-humidity environments?
A: It operates in 5% to 95% non-condensing humidity conditions and should be installed in a control cabinet.
Q: What is the default IP address of the adapter?
A: If not using DHCP, the default static IP can be set via the drive or web interface.
Q: What’s the maximum length of Ethernet cable I can use?
A: Standard Cat5e or Cat6 Ethernet cables can be used up to 100 meters per segment.
