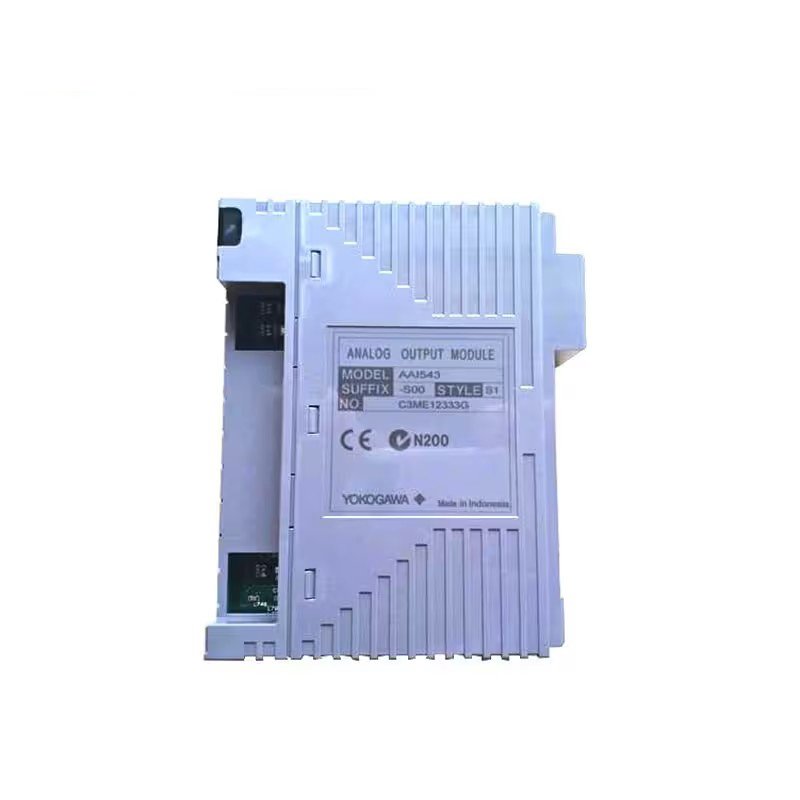

The Yokogawa AAI543-H00 is an advanced analog output module used in industrial automation systems, especially in the Yokogawa CENTUM VP distributed control system (DCS). It efficiently converts digital signals from the DCS into analog outputs, facilitating the control of devices such as actuators, valves, and other equipment. This module is designed for high reliability, precision, and safety in various industrial applications.

Technical Specifications

• Output Signal: 4 to 20 mA DC
• Channels: 16 independent analog output channels
• Conversion Accuracy: 0.1% of full scale
• Conversion Time: 0.5 ms
• Isolation: 1500 V RMS, ensuring safety and preventing signal interference
• Operating Temperature: 0 to 55°C
• Protocol Support: HART for advanced diagnostics and configuration
• Dimensions: 1.4″ x 5.4″ x 4.8″ (3.7 cm x 13.8 cm x 12.1 cm)
• Weight: 0.4 kg (13.3 oz)
