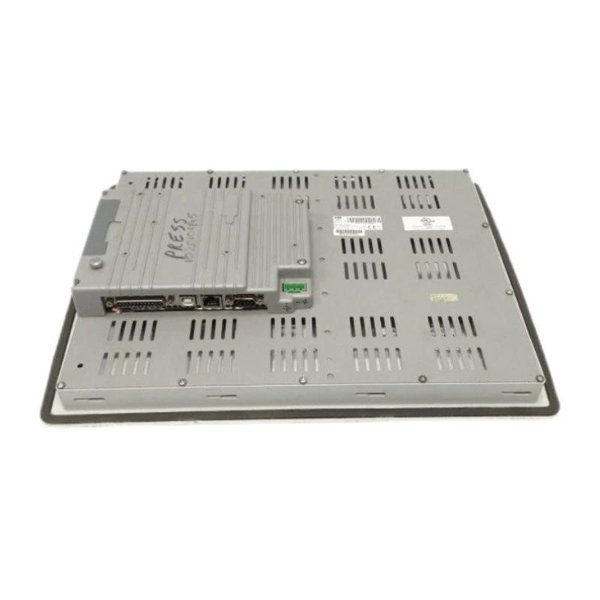

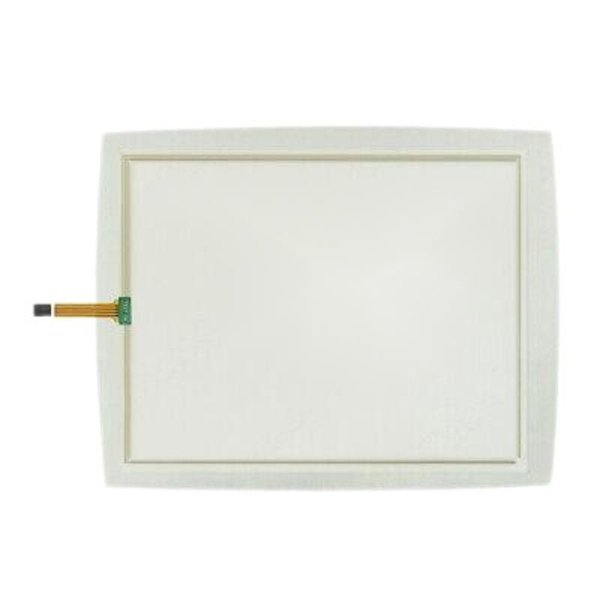

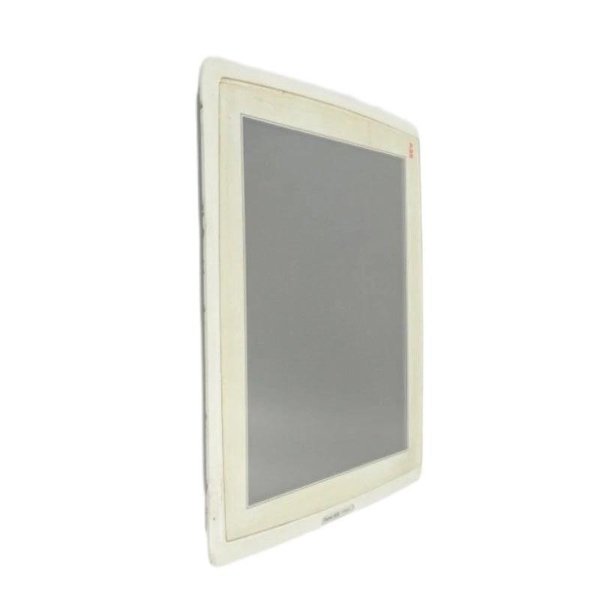

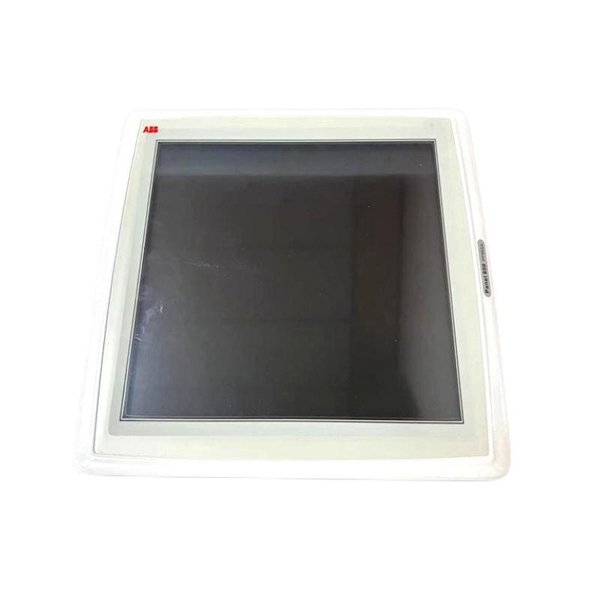

ABB PP865A 3BSE042236R2 Touchscreen

The ABB PP865A 3BSE042236R2 touchscreen is an advanced Human-Machine Interface (HMI) designed for industrial environments requiring precision, durability, and high performance. The touchscreen features a large, high-resolution display, enabling operators to interact with industrial systems easily and intuitively. The screen’s robust design is capable of withstanding the harsh conditions typical of manufacturing and control environments, offering real-time monitoring and control capabilities. Ideal for automation processes, the PP865A supports multiple industrial applications, making it a versatile solution for a wide range of industries.

Product Specifications

Below is a detailed table highlighting the key specifications for the ABB PP865A 3BSE042236R2 touchscreen:

Product Applications

The ABB PP865A 3BSE042236R2 touchscreen is versatile and can be used across a variety of industrial applications, providing real-time feedback and operational control. Some of its key uses include:

• Automation Systems: It is commonly used in automation systems for controlling and monitoring processes, offering operators a user-friendly interface.

• Manufacturing Environments: The touchscreen is perfect for controlling machinery and processes on manufacturing lines, ensuring high efficiency and reducing downtime.

• Energy and Utilities: It serves as an HMI for power plants and utilities, where it enables monitoring and adjusting critical operational parameters in real-time.

• Oil & Gas Industry: Ideal for controlling processes and managing machinery in oil refineries and offshore drilling rigs, helping to ensure safety and operational effectiveness.

• Water Treatment Systems: Provides essential control and monitoring capabilities for water treatment facilities, helping manage water quality and environmental compliance.

• Food and Beverage Industry: It is widely used in food processing systems where high levels of automation and real-time data visualization are required.

Product Advantages

The ABB PP865A 3BSE042236R2 touchscreen offers several advantages that make it a go-to choice for industrial applications:

1. High Resolution Display: With a resolution of 1024 x 768 pixels, the PP865A offers crisp, clear visuals for easy monitoring and control.

2. Durability: Built to withstand harsh environments, it offers robust protection against dust, moisture, and temperature variations with an IP65 rating.

3. User-Friendly Interface: The touchscreen interface allows operators to interact with systems efficiently, reducing the need for additional peripherals and providing a more intuitive user experience.

4. Wide Temperature Range: It can operate in extreme environments, from -10°C to +60°C, making it versatile for use in various industrial settings.

5. Multiple Communication Ports: The touchscreen supports Ethernet, RS232, and USB ports, ensuring compatibility with a wide range of industrial systems.

6. Compact Design: Despite its large display, the PP865A has a compact form factor, making it easy to integrate into existing control panels and limited spaces.

7. High Storage Capacity: With 128 MB of flash storage, the PP865A can store large amounts of data and system configurations.

8. Flexible Mounting Options: The panel is designed for panel-mount installation, making it easy to integrate into a variety of systems.

9. Energy Efficient: The panel consumes low power, making it a cost-effective solution for continuous operations.

10. Long-lasting Performance: Designed for continuous use in demanding environments, the PP865A provides a high level of reliability and longevity.

FAQs

1. What is the operating voltage of the ABB PP865A 3BSE042236R2 touchscreen?

   • The operating voltage is 24 V DC.

2. What is the display resolution of this product?

   • The display resolution is 1024 x 768 pixels.

3. Can the ABB PP865A be mounted on any surface?

   • No, it is specifically designed for panel mounting.

4. Is the touchscreen resistive or capacitive?

   • The touchscreen is resistive.

5. What is the operating temperature range of the panel?

   • The panel operates within a temperature range of -10°C to +60°C.

6. How many communication ports are available?

   • The panel features Ethernet, RS232, and USB communication ports.

7. What is the IP rating of the ABB PP865A?

   • The panel has an IP65 rating, ensuring it is resistant to dust and water.

8. What storage capacity does the panel offer?

   • The panel offers 128 MB of flash storage.

9. Is the ABB PP865A energy-efficient?

   • Yes, the panel is designed to consume minimal power, making it energy-efficient.

10. Can the interface be customized for different applications?

    • Yes, the user interface can be customized to suit the specific needs of different industrial applications.
