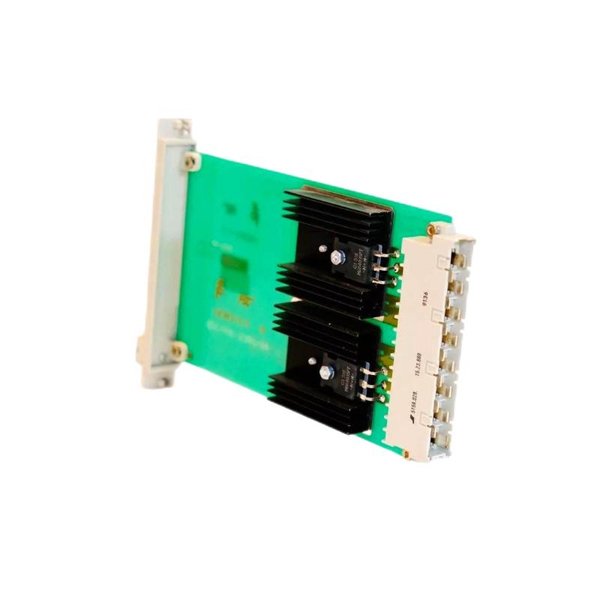

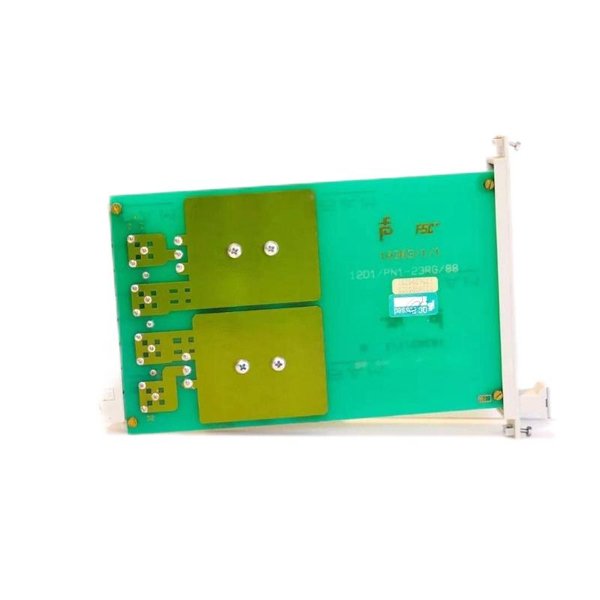

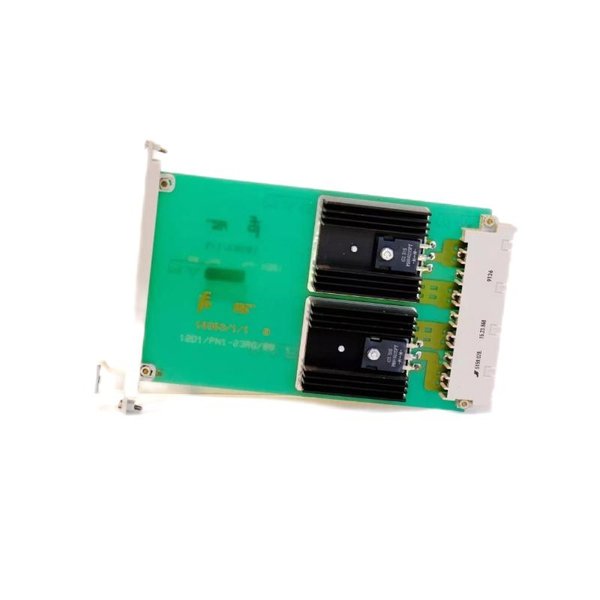

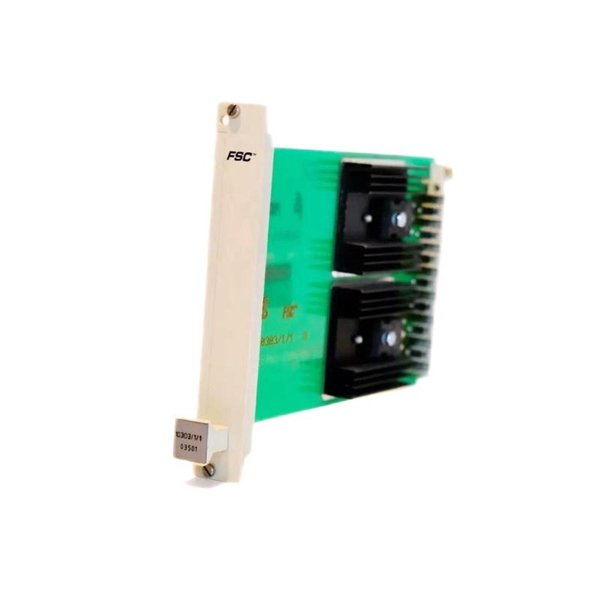

Honeywell 10303/1/1 FSC Power Supply Distribution Module

The Honeywell 10303/1/1 is a Power Supply Distribution (PSD) Module designed for use in systems featuring redundant Central Parts and non-redundant I/O configurations. Its primary function is to consolidate the output from redundant Power Supply Units (PSUs) into a single 5 VDC supply for the non-redundant I/O section of the system. This ensures consistent and reliable power distribution across the system components.

The module is engineered to maintain voltage stability within strict limits (±5%), which is crucial for the proper functioning of sensitive electronic components. To achieve this, the PSD modules should be positioned adjacent to the PSU modules to minimize voltage drops in the wiring. The recommended minimum wire diameter is 2.5 mm² (AWG 14).

Note: The PSD module should only be replaced when the power supply to its PSU is switched off to prevent potential damage or safety hazards.

Technical Specifications

Applications

The Honeywell 10303/1/1 PSD Module is utilized in various industrial applications where reliable power distribution is critical:

• Distributed Control Systems (DCS): Ensures stable power supply to non-redundant I/O modules.

• Safety Instrumented Systems (SIS): Maintains consistent voltage levels for safety-critical components.

• Process Automation: Provides reliable power distribution in chemical, petrochemical, and manufacturing industries.

• Power Generation: Supports stable operations in power plants by ensuring consistent power to control systems.

• Oil and Gas: Facilitates reliable power supply in upstream and downstream operations.

Product Advantages

• Reliable Power Consolidation: Combines outputs from redundant PSUs into a single, stable 5 VDC supply.

• Voltage Stability: Maintains output voltage within ±5%, crucial for sensitive electronic components.

• Compact Design: Space-efficient module that fits into standard industrial enclosures.

• High Current Capacity: Supports up to 12 A standard current, with a module dissipation limit of 20 A.

• Certified Quality: Meets international standards with CE, TÜV, and UL approvals.

• Ease of Maintenance: Designed for straightforward replacement and minimal maintenance requirements.

Frequently Asked Questions (FAQ)

1. What is the primary function of the 10303/1/1 module?

   • It consolidates outputs from redundant PSUs into a single 5 VDC supply for non-redundant I/O modules.

2. Can the module be replaced while the system is powered?

   • No, the module should only be replaced when the power supply to its PSU is switched off.

3. What are the dimensions and weight of the module?

   • Dimensions: 25 x 207 x 203 mm; Weight: 0.2 kg.

4. What is the maximum current capacity of the module?

   • Standard maximum current is 12 A; the module dissipation limit is 20 A.

5. What type of connector does the module use?

   • It uses a DIN 41612-H 15 P (faston) connector.

6. Is the module certified for international use?

   • Yes, it has CE, TÜV, and UL certifications.

7. What is the recommended wire diameter for installation?

   • A minimum wire diameter of 2.5 mm² (AWG 14) is recommended to minimize voltage drops.

8. What is the maximum forward voltage drop of the module?

   • The maximum forward voltage drop is 0.55 V.

9. What is the maximum reverse voltage the module can handle?

   • The module can handle a maximum reverse voltage of 30 V.

10. What is the warranty period for the module?

    • The module comes with a 12-month warranty.
