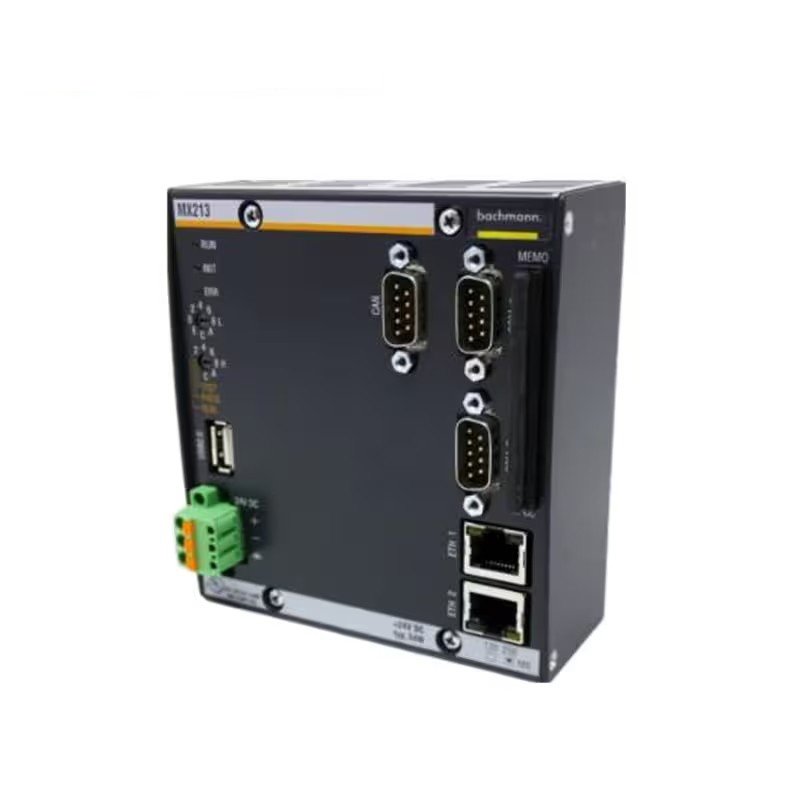

BACHMANN MX213 Processor Module
Manufacturer: Bachmann electronic
Product Number: MX213
Category: High-Integration Controller Module (M1 Series)
Processor Architecture: Dual-core ARM Cortex-A9 @800MHz (real-time) + TI Sitara AM437x (safety ASIL D)
Memory: 1GB DDR3 RAM + 4GB eMMC Flash
Real-time Performance: Cycle time ≤500μs (with 128 safety I/O points)
Safety Integrity Level: IEC 61508 SIL 3, ISO 13849 PL e certified
Communication Interfaces: 2× EtherCAT (100Mbps), 1× PROFINET IRT (Class C), 1× CANopen Safety (CiA 302-7)
Safety I/O Channels: 32 safety inputs / 16 safety outputs (dual-channel)
Redundancy: Dual 24VDC power input, hardware watchdog (failover ≤20ms)
Operating Temperature: -40°C to +70°C (MX213-T wide temp version)
Power Consumption: 12W typical @ 24VDC (peak ≤25W)
Protection Rating: IP20 (rack mount)
Security Features: AES-256 encryption, physical tamper switch (EN 50129)
Integration: Combines PLC logic + Safety PLC + Motion control (IEC 61131-3, IEC 61511, PLCopen Part 4)
Application: Wind power, nuclear power, intelligent manufacturing, high-reliability industrial automation
Product Description
The Bachmann MX213 is a high-performance PLC module ideal for industrial automation tasks. It belongs to the M1 controller series, offering both flexibility and reliability for a wide range of applications.
Technical Specifications
- CPU: Industrial Pentium processor for powerful computing.
- I/O Modules: Wide range of I/O modules for flexible integration.
- Real-Time Bus: High-speed communication for module synchronization.
- Temperature Range: Operates from -40°C to +70°C without a cooling fan.
- System Architecture: Distributed automation for optimal performance.
- Protocol Support: Bluecom compatibility for seamless integration with other bluecom-enabled devices.
- Dimensions: 12.7 cm x 5.1 cm x 12.7 cm
- Weight: 0.6 kg
