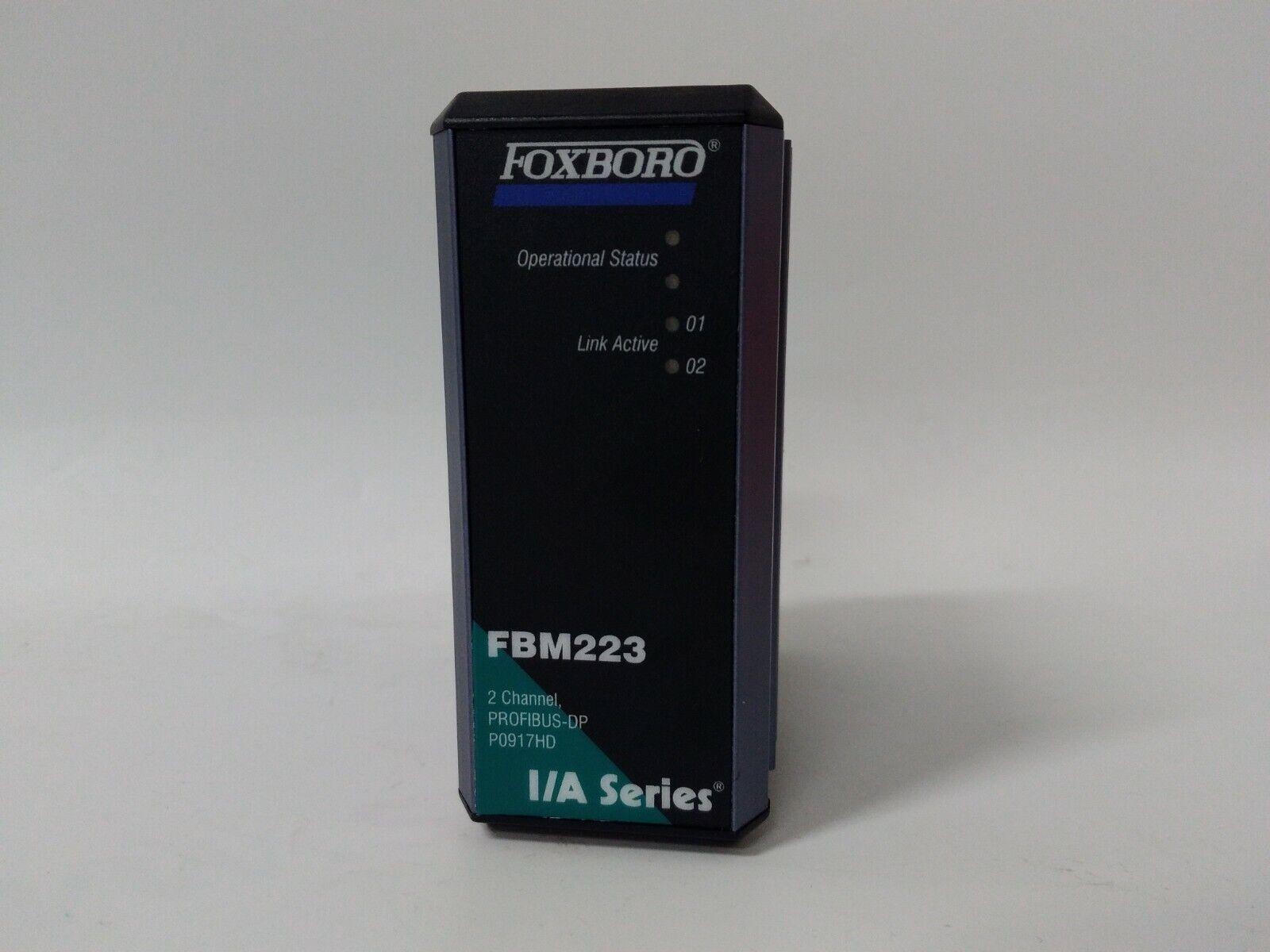

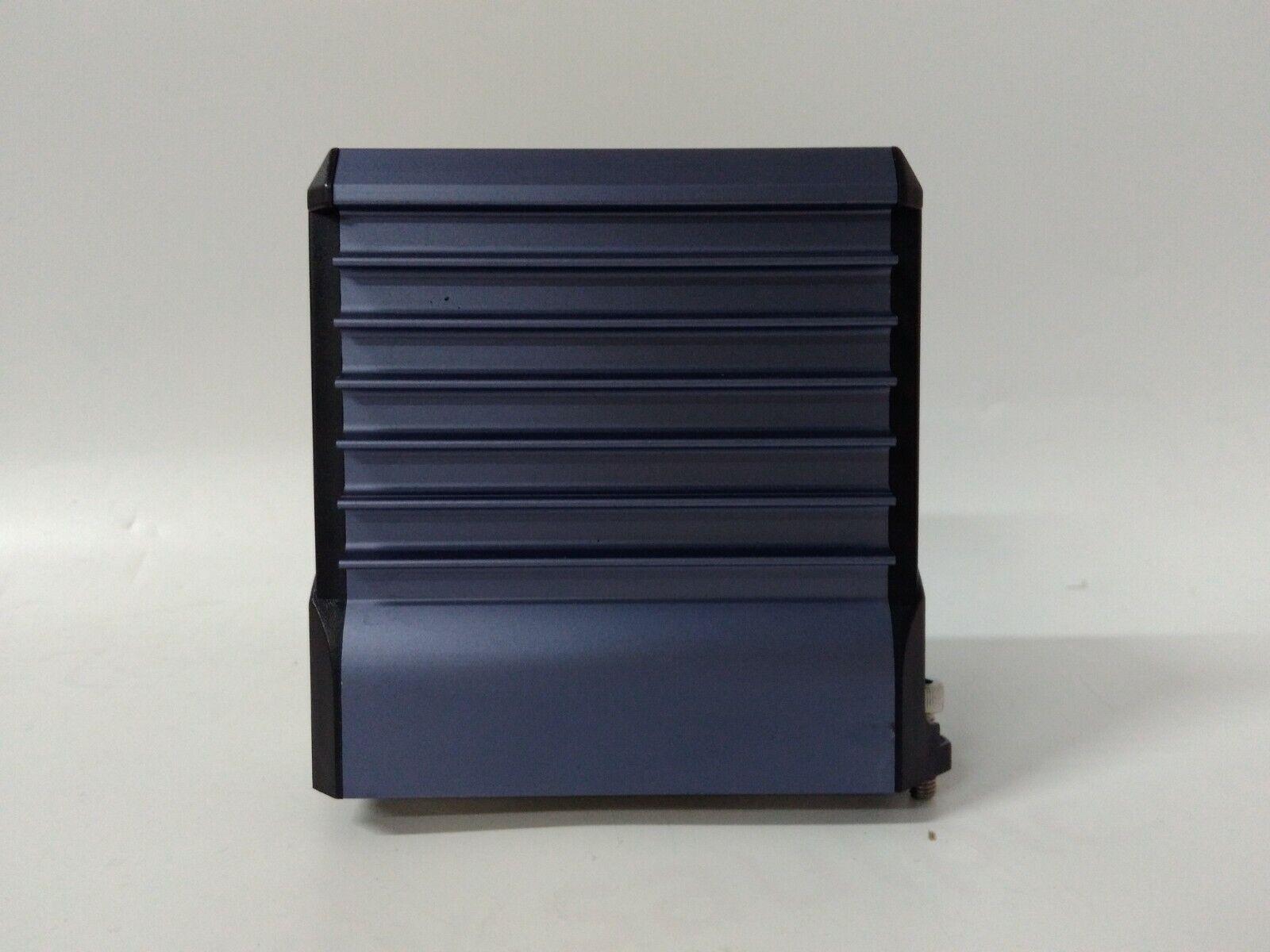

Foxboro FBM223 P0917HD PROFIBUS-DP Communication Interface Module
Brand: Foxboro
Model Number: FBM223
Part Number: P0926GG
Type: PROFIBUS-DP Communication Interface Module
Product Origin: USA
Payment: T/T, Western Union, Credit Card
Dimensions: 4.3″ x 2.3″ x 1.2″ (110mm x 58mm x 30mm)
Weight: 0.35 lbs (1.6kg)
Certificate: CE, UL
Warranty: 1 year
Product Description
The 2-channel Profibus-DP Fieldbus Interface Module, FBM223, connects PROFIBUS-DP slave devices (such as motor drives, I/O modules, and field I/O devices) to the I/A Series system. PROFIBUS is an open, vendor-independent fieldbus standard widely used in process automation and manufacturing. The standard, EN 50170, defines the functional, electrical, and mechanical characteristics of the serial transmission bus, ensuring vendor independence and openness.
Key Features
- Conforms to PROFIBUS-DP Fieldbus specifications: This module ensures compatibility with PROFIBUS-DP slave devices commonly found in industrial fieldbus applications.
- Provides full support for all device variables and diagnostic messages: It reads and writes data from PROFIBUS-DP slave devices, including real-time sensor data and historical alarm logs.
- Integrates PROFIBUS slave device data into an I/A Series control database: This facilitates centralized monitoring and control within the I/A Series control system.
- Suitable for hazardous environments: The FBM223 and its associated termination assembly (TA) are suitable for installation in Class 1, Division 2, and Zone 2 locations.
Specifications
- Model number: FBM223 P0917HD
- Number of channels: 2
- Protocol: PROFIBUS-DP
- Data rate: 9.6, 19.2, 48, or 96 kbps
- Communication distance: Up to 1200 meters
- I/O points: 16 digital inputs, 16 digital outputs
- Voltage: 24 VDC
- Current: 100 mA
- Dimensions: 96 x 120 x 25 mm
- Weight: 0.2 kg
Loading comments...
Foxboro FBM223 P0917HD PROFIBUS-DP Communication Interface Module
Brand: Foxboro
Model Number: FBM223
Part Number: P0926GG
Type: PROFIBUS-DP Communication Interface Module
Product Origin: USA
Payment: T/T, Western Union, Credit Card
Dimensions: 4.3″ x 2.3″ x 1.2″ (110mm x 58mm x 30mm)
Weight: 0.35 lbs (1.6kg)
Certificate: CE, UL
Warranty: 1 year
Product Description
The 2-channel Profibus-DP Fieldbus Interface Module, FBM223, connects PROFIBUS-DP slave devices (such as motor drives, I/O modules, and field I/O devices) to the I/A Series system. PROFIBUS is an open, vendor-independent fieldbus standard widely used in process automation and manufacturing. The standard, EN 50170, defines the functional, electrical, and mechanical characteristics of the serial transmission bus, ensuring vendor independence and openness.
Key Features
- Conforms to PROFIBUS-DP Fieldbus specifications: This module ensures compatibility with PROFIBUS-DP slave devices commonly found in industrial fieldbus applications.
- Provides full support for all device variables and diagnostic messages: It reads and writes data from PROFIBUS-DP slave devices, including real-time sensor data and historical alarm logs.
- Integrates PROFIBUS slave device data into an I/A Series control database: This facilitates centralized monitoring and control within the I/A Series control system.
- Suitable for hazardous environments: The FBM223 and its associated termination assembly (TA) are suitable for installation in Class 1, Division 2, and Zone 2 locations.
Specifications
- Model number: FBM223 P0917HD
- Number of channels: 2
- Protocol: PROFIBUS-DP
- Data rate: 9.6, 19.2, 48, or 96 kbps
- Communication distance: Up to 1200 meters
- I/O points: 16 digital inputs, 16 digital outputs
- Voltage: 24 VDC
- Current: 100 mA
- Dimensions: 96 x 120 x 25 mm
- Weight: 0.2 kg
