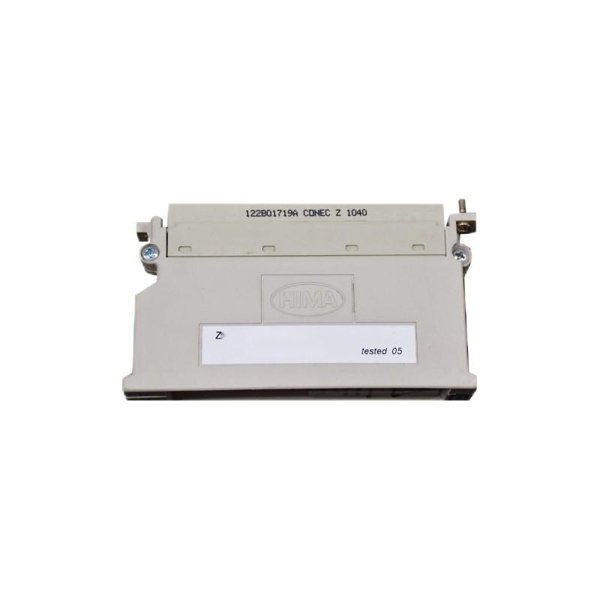

Hima Z7008/3238/Ex/C5 Cable Plug

The HIMA Z7008/3238/Ex/C5 Cable Plug is a specially designed explosion-proof connector tailored for use in hazardous industrial environments. It belongs to HIMA’s family of rugged cable plugs optimized for safety instrumented systems (SIS) that operate in potentially explosive atmospheres.

This cable plug is engineered to meet stringent international safety standards, including ATEX and IECEx certifications, allowing its safe application in areas classified as Zone 1 or Zone 2 hazardous zones. The Z7008/3238/Ex/C5 ensures a secure, reliable electrical connection between safety modules and field devices without compromising safety or signal integrity.

Its robust construction features corrosion-resistant materials and a sealing design that protects against dust, moisture, and aggressive chemicals, making it ideal for demanding oil & gas, chemical, and petrochemical industries.

Product Specifications

Product Applications

The HIMA Z7008/3238/Ex/C5 Cable Plug is intended for use in environments where explosion hazards are present and electrical connections must comply with the highest safety requirements. Typical applications include:

• Oil & Gas Industry

  Safe and reliable connections in offshore and onshore drilling platforms, refineries, and gas processing units.

• Chemical Plants

  Connection of sensors, actuators, and safety modules in environments with explosive vapors or dust.

• Petrochemical Industry

  Used in control and safety systems within petrochemical production facilities.

• Pharmaceutical Manufacturing

  Ensuring safe communication in hazardous cleanroom environments.

• Mining and Heavy Industry

  Application in underground and surface mining where explosive gases or dust may be present.

• Power Generation

  Suitable for hazardous zones in power plants, especially those using fossil fuels.

Product Advantages

• Explosion-proof Certification

  Certified for use in Zone 1 and Zone 2 hazardous areas according to ATEX and IECEx standards, ensuring maximum safety.

• Robust Stainless Steel Housing

  Provides exceptional corrosion resistance and mechanical durability in harsh environments.

• High Ingress Protection

  IP66/IP67 rating protects against dust ingress and water jets or temporary immersion.

• Reliable Electrical Contacts

  Gold-plated copper contacts guarantee low resistance and stable signal transmission.

• Secure Locking Mechanism

  Bayonet lock with safety latch prevents accidental disconnection.

• Wide Operating Temperature Range

  Operates reliably from -40 °C to +80 °C, suitable for extreme environments.

• Ease of Installation

  Designed for quick and secure panel mounting or cable termination without special tools.

• Compatibility with Safety Systems

  Perfectly suited for integration with HIMA’s safety instrumented systems and other industrial controllers.

• Maintenance Friendly

  Durable design reduces downtime and maintenance frequency.

Frequently Asked Questions (FAQ)

1. What hazardous areas is the Z7008/3238/Ex/C5 certified for?

   It is certified for ATEX Zone 1 and Zone 2 hazardous locations.

2. What is the maximum cable diameter this plug can accommodate?

   It supports cables up to 12 mm in diameter.

3. Can this cable plug be used outdoors?

   Yes, it has an IP66/IP67 rating, suitable for outdoor and wet environments.

4. What materials are used in the housing to ensure durability?

   The housing is made of stainless steel with a sealing gasket for corrosion and chemical resistance.

5. Is the plug compatible with HIMA safety systems?

   Yes, it is designed specifically for HIMA safety instrumented systems.

6. How secure is the connection mechanism?

   It uses a bayonet locking system with a safety latch to prevent accidental disconnection.

7. What is the maximum current rating per pin?

   Each pin can carry up to 5 amps.

8. Does the plug require special tools for installation?

   No special tools are required; it is designed for tool-free installation.

9. What temperature range can this plug operate within?

   From -40 °C up to +80 °C.

10. Can it withstand exposure to chemicals and aggressive substances?

    Yes, the stainless steel housing and seals provide excellent chemical resistance.
