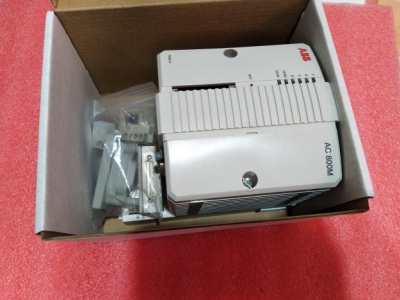

ABB PM861AK01 3BSE018157R1 AC 800M Controller
Manufacture :ABB
Item No :PM861AK01
Article number :3BSE018157R1
Series :800Xa
Origin :Germany (DE)
Dimension :110*190*130(mm)
Weight :1.5kg
Customs Tariff Number :85389091
Type :AC 800M Controller
Product Description
The control board of the PM861A controller has 2 RJ45 serial ports COM3, COM4 and 2 RJ45 Ethernet ports CN1, CN2, which are used to connect to the control network. One of the serial ports COM3 is an RS-232C port with modem control signals, and the other serial port (COM4) is independent and is used to connect the configuration tool. The controller supports CPU redundancy to provide higher availability (CPU, CEX bus, communication interface and S800 I/O).
Simple DIN rail installation/removal instructions use a dedicated sliding and locking mechanism. Each base board is equipped with a unique Ethernet address and each CPU is provided with a hardware ID. The address is located on the Ethernet address label on the TP830 base board.
Information
Reliability and simple troubleshooting procedures
Modularity allows for gradual expansion
IP20 protection and no protection
Controllers can be configured using 800xA Control Builder
Controllers are fully EMC certified
Use a pair of bc810 to segment the CEX bus
Based on standard hardware, optimal communication connections can be achieved including Ethernet, PROFIBUS DP, etc.
Redundant Ethernet communication ports inside the machine
Package includes
-PM861A, CPU
-TP830, Base plate, width = 115mm
-TB850, CEX bus terminator
-TB807, Module bus terminator
-TB852, RCU-Link terminator
-Memory backup battery 4943013-6
- 4-pole power plug 3BSC840088R4
Environment and certification
Temperature, Operating +5 to +55 °C (+41 to +131 °F)
Temperature, Storage -40 to +70 °C (-40 to +158 °F)
Temperature changes 3 °C/minutes according to IEC/EN 61131-2
Pollution degree Degree 2 according to IEC/EN 61131-2
Corrosion protection G3 compliant to ISA 71.04
Relative humidity 5 to 95 %, non-condensing
Emitted noise < 55 dB (A)
Vibration:10 < f < 50 Hz: 0.0375 mm amplitude, 50 < f < 150 Hz: 0.5 g acceleration, 5 < f <500 Hz: 0.2 g acceleration
Rated Isolation Voltage 500 V a.c.
Dielectric test voltage 50 V
Protection class IP20 according to EN 60529, IEC 529
Altitude 2000 m according to IEC/EN 61131-2
Emission & Immunity EN 61000-6-4, EN 61000-6-2
Environmental conditions Industrial
CE Mark Yes
Electrical Safety EN 50178, IEC 61131-2, UL 61010-1, UL 61010-2-201
Electrical Safety EN 50178, IEC 61131-2, UL 61010-1, UL 61010-2-201
Hazardous location UL 60079-15, cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X
ISA Secure certified Yes
Marine certificates DNV-GL (currently PM866: ABS, BV, DNV-GL, LR)
TUV Approval No
RoHS compliance EN 50581:2012
WEEE compliance DIRECTIVE/2012/19/EU
