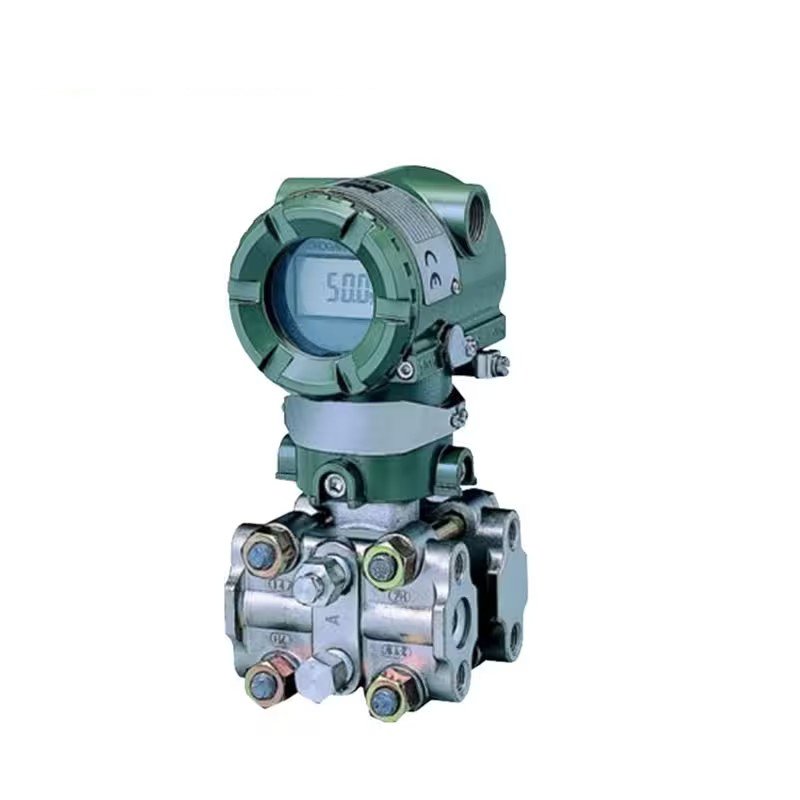

Yokogawa F9342AL Pressure Transmitters

The YOKOGAWA F9342AL is a high-precision differential pressure transmitter designed for demanding industrial applications. It measures the differential pressure between two points, providing accurate and reliable data in a wide range of process environments. With a remote diaphragm seal, it isolates the pressure sensing element from the harsh conditions of the process, ensuring durability and stability in operation.

Technical Specifications

• Measurement Type: Differential Pressure
• Pressure Range: 0 to 2.5 MPa (0 to 362 psi)
• Accuracy: ±0.075% of Span
• Output Signal: 4-20 mA with HART communication
• HART Protocol: Fully compliant for advanced diagnostics and configuration
• Operating Temperature: -40°C to +85°C (-40°F to +185°F)
• Process Connection: Flanged or threaded connections for versatile installation
• Power Supply: 12-42 VDC
• Diaphragm Material: Stainless steel (standard), optional materials available
• Pressure Limit: 10 MPa (1450 psi) maximum
• Certifications: ATEX, IECEx, FM, CSA, CE, and RoHS compliant
• Ingress Protection: IP67 (dust-tight and water-resistant)
