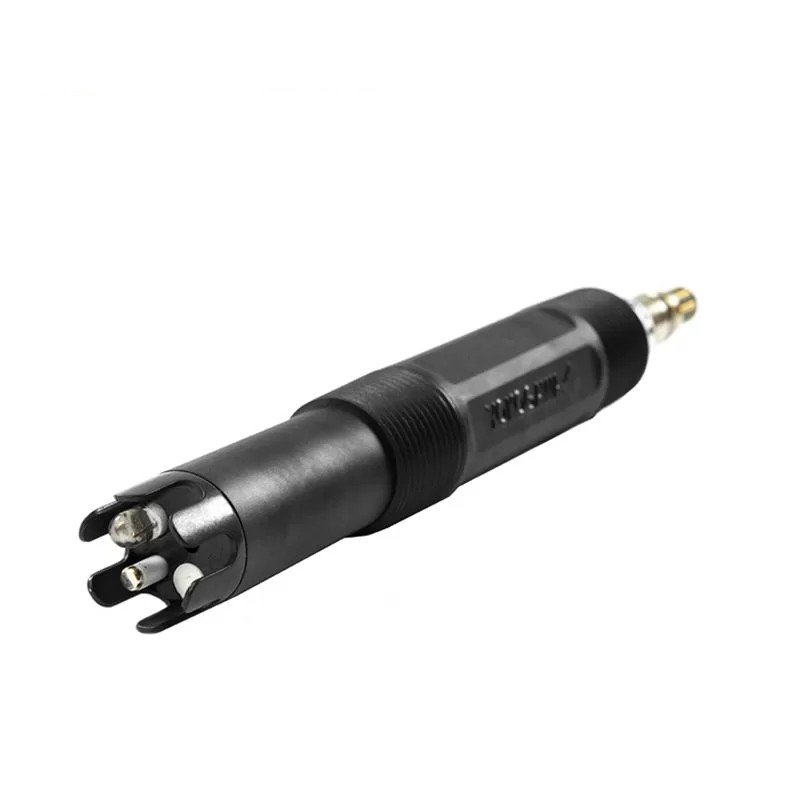

The Yokogawa FU20-05-T1-NPT/NSS is a robust and precise pH sensor, ideal for various industrial applications. This sensor is part of Yokogawa’s FU20 series of wide-body pH sensors.

Key Features and Specifications

• Wide Body Design: The sensor has a 26mm diameter body, housing four separate measuring elements in an unbreakable PPS 40GF casing. This design ensures excellent chemical resistance and mechanical strength.
• Versatile Installation: The FU20 supports in-line, immersion, and off-line installations, providing flexibility for different process environments.
• Integrated Thread: It includes a 3/4″ tapered thread, simplifying installation and minimizing the risk of leaks.
• Measuring Elements: Multiple measuring elements offer accurate and reliable pH readings, even in challenging conditions.
• Temperature Measurement: A built-in temperature element allows for temperature-compensated pH measurements, enhancing accuracy.
• NPT/NSS Configuration: The sensor features a 1″ NPT adapter made of stainless steel (316L), ensuring a secure connection to process piping.

Technical Specifications

For detailed technical specifications, please refer to:

• Measuring range
• Accuracy
• Response time
• Operating temperature
• Pressure rating
• Chemical compatibility
