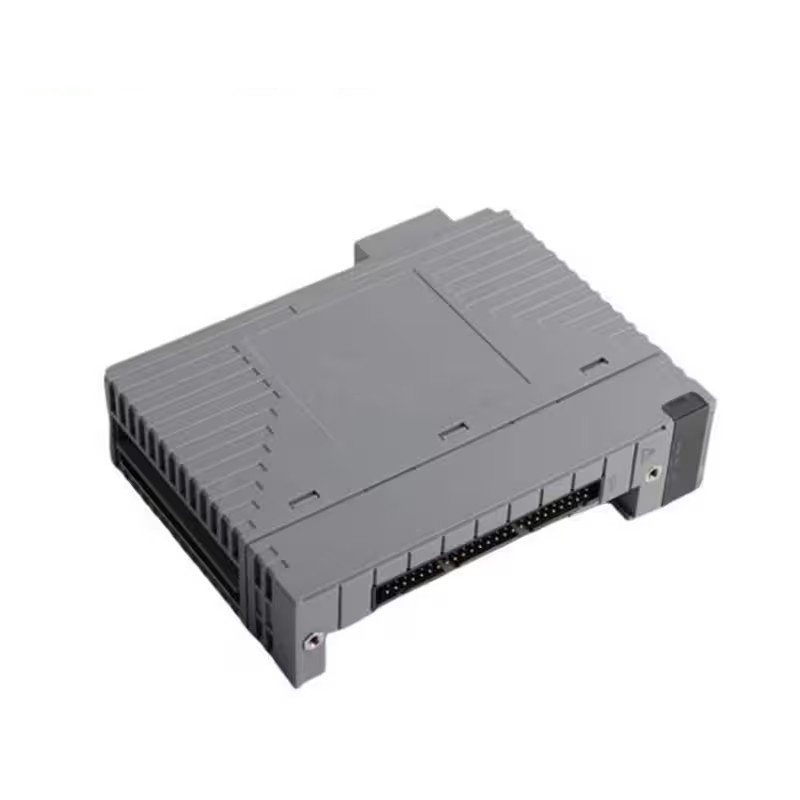

Yokogawa AEP9D Power Supply Bus Unit

The AEP9D is a high-performance secondary power supply bus unit designed by Yokogawa for use in industrial control systems. It provides reliable power distribution to various field devices and modules within control panels. By integrating redundancy and flexible output configurations, the AEP9D ensures efficient power management and increased system uptime. This makes it an ideal solution for critical applications requiring continuous operation.

Technical Specifications

• Input Power:
  • Voltage: 24V DC
  • Dual-Line Input: Accepts power from two separate sources for redundancy.
• Output:
  • Number of Output Lines: 9 output ports per input line.
  • Total Outputs: 18 outputs when configured in parallel.
• Operating Temperature Range:
  • -20°C to +60°C (ambient temperature)
• Dimensions:
  • Width: 130 mm
  • Height: 120 mm
  • Depth: 50 mm
• Mounting: Designed for easy installation within control cabinets.
• Redundancy: Provides increased reliability by ensuring backup power through dual input lines.
• Environmental Compliance:
  • IP Rating: IP20
  • Shock Resistance: Can withstand shock and vibration commonly encountered in industrial environments.
• Power Consumption:
  • Typical power consumption: 10W
• Connectors:
  • Input: Two input ports for redundant power supply connections.
  • Output: Nine output ports on each input line for flexible power distribution.
• Approval/Certification:
  • CE marked for safety and compliance with European standards.
  • UL listed for industrial safety.
