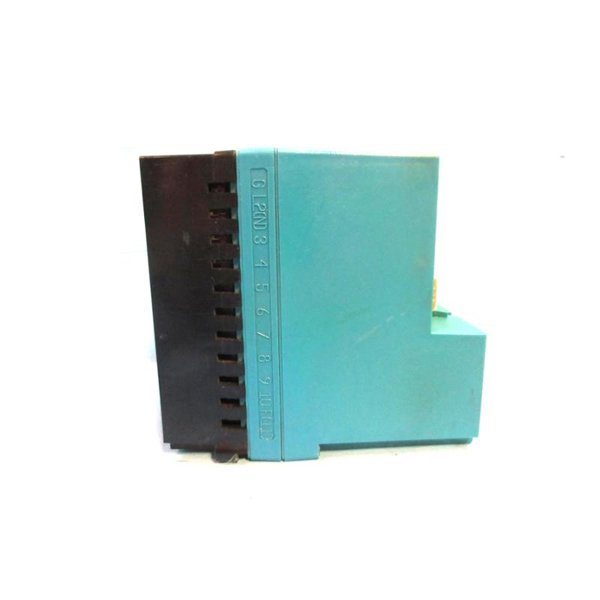

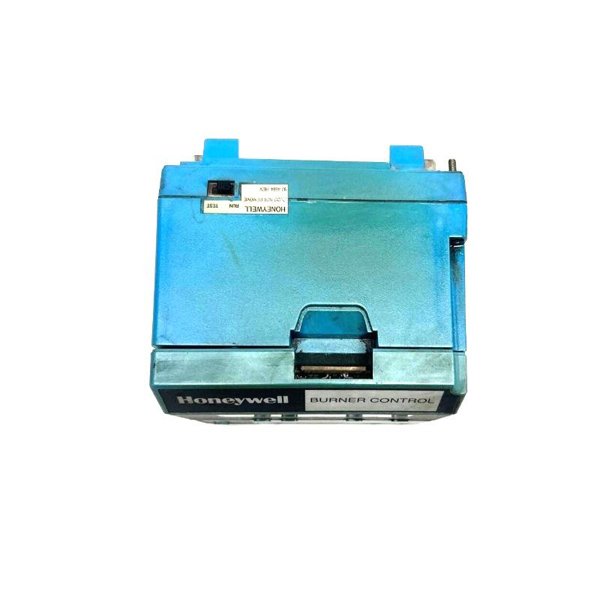

Honeywell RM7800L1046 Burner Control
Manufacturer:Honeywell
Product Number:RM7800L1046
Product Type:Burner Control
Origin:USA
Dimensions:127 x 127 x 133 mm
Weight:0.7 kg
Views:37
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell RM7800L1046 is a microprocessor-based integrated burner control designed for safe, reliable, and efficient management of automatically fired gas, oil, or combination fuel single-burner systems. It provides advanced safety checks, flame supervision, and diagnostic features for demanding industrial and commercial applications.
Applications
-
Industrial and commercial single-burner boilers and furnaces
-
Gas, oil, or dual-fuel systems requiring enhanced safety and flame detection
-
Applications needing programmable purge and flame failure response
-
Installations requiring SIL 3-capable safety instrumentation
Advantages
-
SIL 3 capable in properly designed systems
-
Adjustable purge and post-purge times for optimal combustion safety
-
Real-time diagnostics with detailed fault history
-
First-out annunciation with optional expanded display
-
Robust safety logic with dynamic self-check features
-
Compatible with Modbus™ for remote monitoring
-
Non-volatile memory retains critical data after power loss
-
Wide operating temperature and humidity tolerance for harsh environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 127 × 127 × 133 mm |
| Weight | 0.7 kg |
| Supply Voltage | 120 Vac ±10%, 50/60 Hz ±10% |
| Power Dissipation | Max. 10 W (Relay), 3 W (Display) |
| Operating Temperature | -40°C to 60°C |
| Storage Temperature | -40°C to 66°C |
| Humidity | 85% RH non-condensing |
| Flame Failure Response Time | 0.8 to 3.0 sec (amplifier dependent) |
| Max Connected Load | 2000 VA |
| Fusing | 15A fast blow |
| Mounting Options | Panel, wall, or burner mount |
FAQ
Q1: What fuels does the RM7800L1046 support?
A1: It supports natural gas, oil, or dual-fuel systems.
Q2: Is it SIL 3 certified?
A2: It is SIL 3 capable when used in a properly designed system with compatible components.
Q3: How is the post-purge time adjusted?
A3: The post-purge time is adjustable up to 60 minutes via the setup interface.
Q4: Can it communicate with building management systems?
A4: Yes, it supports Modbus™ for integration with building or plant management systems.
Q5: Does it store fault history?
A5: Yes, it records the six most recent faults with detailed diagnostics.
Q6: What is the flame failure response time?
A6: Depending on the flame amplifier used, it ranges from 0.8 to 3.0 seconds.
Q7: Does it include a display?
A7: Yes, a vacuum fluorescent display (VFD) module provides real-time status and fault information.
Q8: Is remote reset possible?
A8: Yes, an optional remote reset module can be connected.
Q9: What safety checks are performed?
A9: It includes interlock checks, dynamic relay and input tests, tamper-resistant timing, and more.
Q10: What is the maximum ambient temperature rating?
A10: The unit operates up to 60°C and can be stored up to 66°C.
