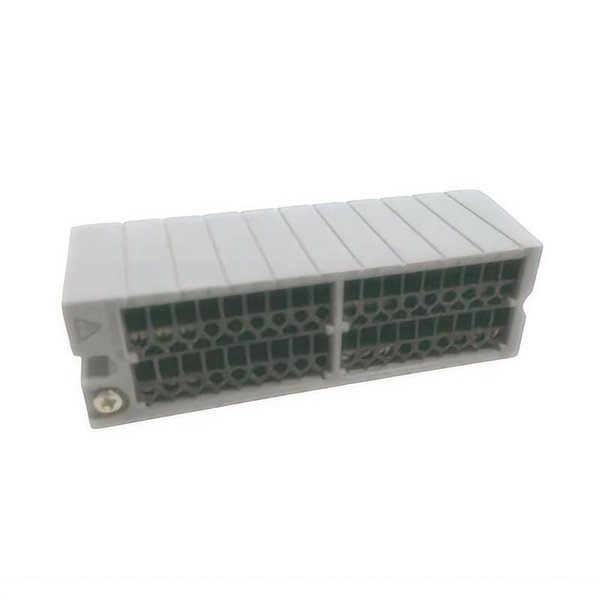

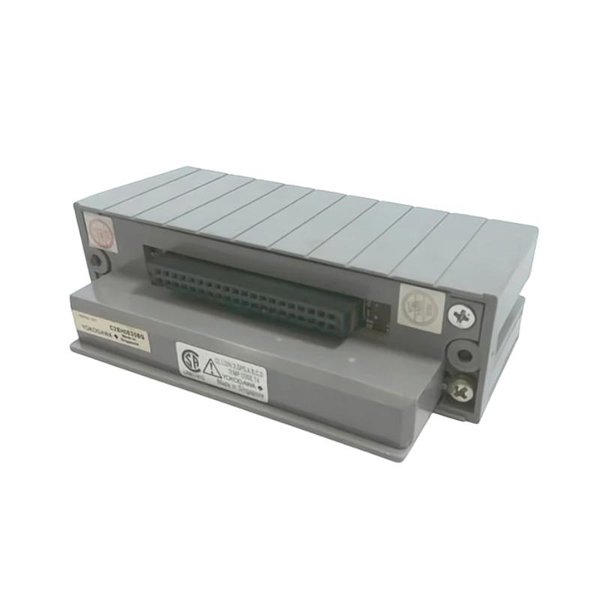

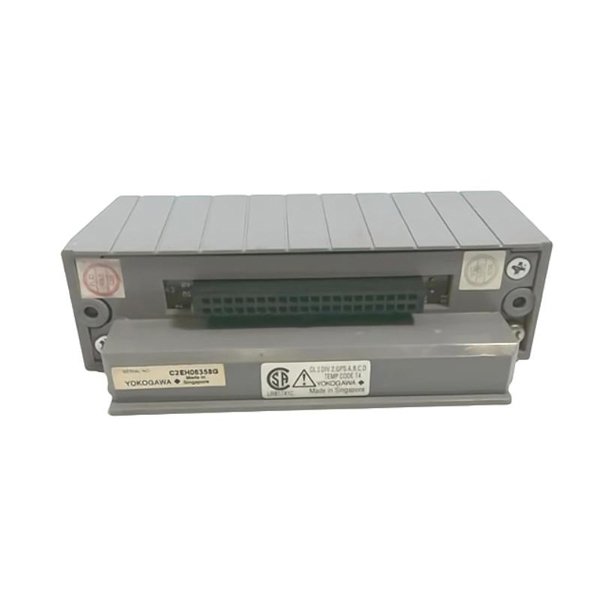

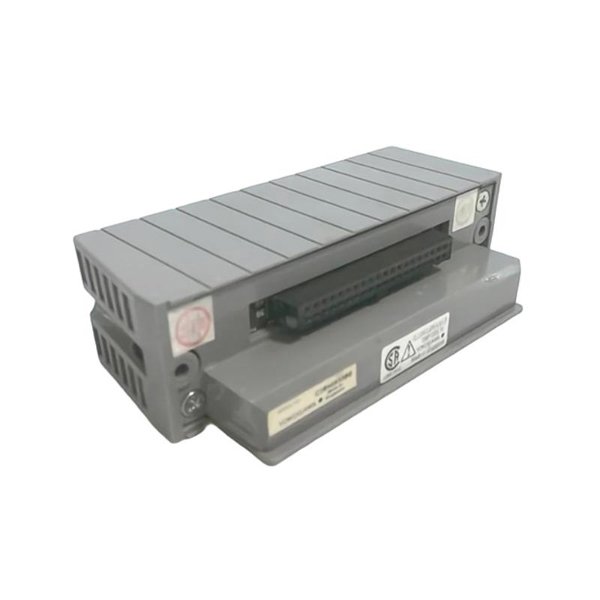

Yokogawa ATR8S-10 Pressure Clamp Terminal Block
Manufacturer:Yokogawa
Product Number:ATR8S-10
Product Type:Pressure Clamp Terminal Block
Origin:Japan
Dimensions:114 x 32.6 x 60.5 mm
Weight:0.2 kg
Views:32
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa ATR8S-10 Pressure Clamp Terminal Block is a robust and high-precision terminal solution designed for secure and efficient electrical connections in industrial automation systems. This product provides an innovative pressure clamp connection method, eliminating the need for screw tightening and reducing the risk of loose connections under harsh environmental conditions.
As part of Yokogawa’s advanced terminal series, the ATR8S-10 ensures reliable electrical contact, fast installation, and easy maintenance. It is specifically engineered to withstand vibrations, temperature fluctuations, and high electrical loads, making it ideal for Distributed Control Systems (DCS), PLC panels, and process automation applications in demanding industries such as oil & gas, petrochemical, and power generation.
Product Specifications
| Parameter | Description |
|---|---|
| Model | ATR8S-10 |
| Type | Pressure Clamp Terminal Block |
| Connection Type | Pressure clamp (tool-free connection) |
| Number of Terminals | 8 points (multi-core conductor support) |
| Rated Voltage | 250 V AC/DC |
| Rated Current | 10 A |
| Insulation Resistance | ≥ 100 MΩ at 500 V DC |
| Dielectric Strength | 1500 V AC for 1 minute |
| Supported Wire Size | 0.5 mm² – 2.5 mm² |
| Material | Flame-retardant polyamide housing, copper alloy contacts |
| Temperature Range | -20°C to +60°C |
| Humidity | 10%–90% RH (non-condensing) |
| Mounting Method | DIN rail or panel-mounted |
| Certifications | CE, RoHS, UL |
| Dimensions | 114 x 32.6 x 60.5 mm |
| Weight | 0.2 kg |
Product Applications
The ATR8S-10 terminal block is designed for a wide range of industrial applications where safe and reliable electrical connectivity is critical:
Distributed Control Systems (DCS): Provides stable wiring connections for control and automation modules.
PLC Control Panels: Ideal for modular and compact control panels in automation systems.
Power Distribution: Ensures robust connections in low-voltage distribution networks.
Oil & Gas Industry: Reliable in environments exposed to vibration, dust, and hazardous conditions.
Chemical & Petrochemical Plants: Maintains integrity under high temperature and corrosive atmospheres.
Renewable Energy Systems: Used in solar and wind power control panels for stable wiring.
Product Advantages
Secure and Reliable Connections: Pressure clamp design provides strong, stable electrical contact without screw loosening issues.
Fast and Easy Installation: Enables tool-free wiring, reducing installation time and human error.
Maintenance-Free: Eliminates periodic retightening common in screw-type connections.
High Vibration Resistance: Perfect for applications in dynamic industrial environments.
Compliance with Safety Standards: Certified for industrial electrical safety, ensuring peace of mind for mission-critical systems.
Compact Design: Saves panel space while maintaining high current and voltage capacity.
Frequently Asked Questions (FAQ)
What is the main purpose of the ATR8S-10?
It provides a secure pressure clamp interface for electrical connections in industrial control systems.
What is the maximum current supported per terminal?
Each terminal supports up to 10 A of continuous current.
What type of wire can be used with ATR8S-10?
It supports both solid and stranded conductors ranging from 0.5 mm² to 2.5 mm².
Does the pressure clamp mechanism require any special tools?
No, it allows tool-free connection, simplifying installation.
What is the dielectric strength of ATR8S-10?
It can withstand 1500 V AC for one minute between conductive parts.
Is this terminal block suitable for hazardous areas?
Yes, when used inside certified enclosures, it meets safety requirements for hazardous environments.
Does the block support DIN rail mounting?
Yes, it is designed for easy DIN rail or panel installation.
How does ATR8S-10 ensure vibration resistance?
The pressure clamp mechanism maintains consistent contact force, preventing wire loosening under vibration.
What material is used for housing and contacts?
The housing is flame-retardant polyamide, and the contacts are made of copper alloy for durability.
Can ATR8S-10 handle mixed wire sizes in a single block?
Yes, each terminal point can accommodate different wire sizes within the supported range.
