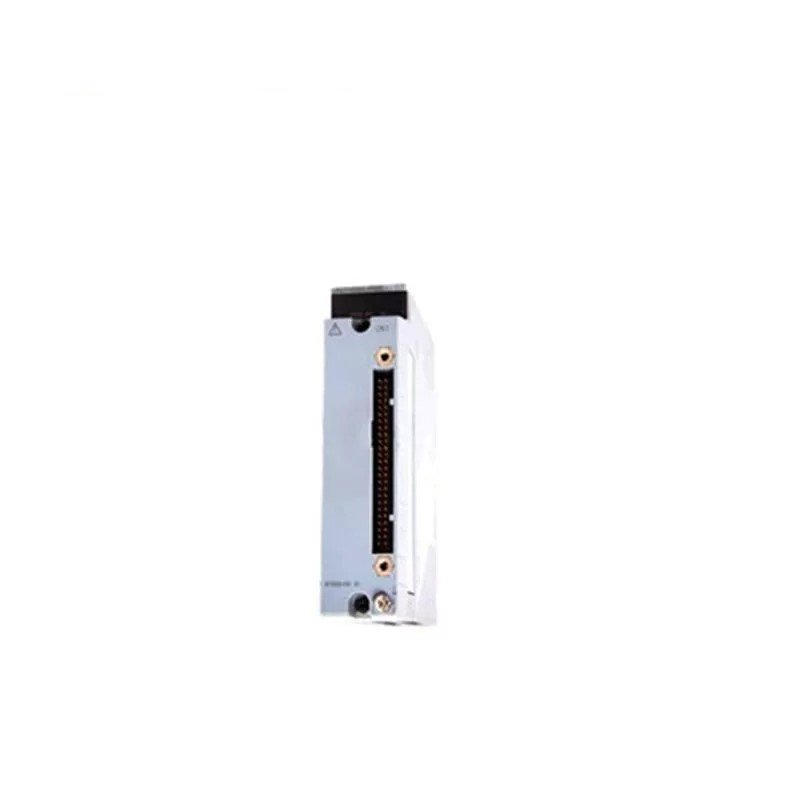

Yokogawa ADV869-P01 High-Density Digital Output Module

The Yokogawa ADV869-P01 is a high-density digital output module designed for use with Yokogawa CENTUM VP and FIO fieldbus systems. It features 64 channels for on/off control signals and provides robust protection against electrical noise and transients.

Technical Specifications

• Number of Channels: 64 outputs
• Signal Type: On/off
• Output Voltage: 24 VDC
• Output Current: 0.5 A per channel
• Isolation: 1500 V between channels and ground
• Common Ground: Every 16 channels
• Response Time: 1 ms
• Accuracy: ±0.1%
• Power Consumption: 20 W
• Operating Temperature: -40 to 70 °C
• Humidity: 5 to 95% RH (non-condensing)
• Ingress Protection: IP67

Additional Features

• Pulse Width Modulation (PWM) output
• Time-Proportional Output (TPO)
• Manual override switch for each channel
• Diagnostic LEDs for each channel

Applications

• Solenoid valves
• Motor starters
• Contactors
• Indicators
• Alarms

Benefits

• High Density: Control a large number of devices with a single module.
• Isolation: Protects against electrical noise and transients.
• Common Ground: Simplifies wiring with a common ground for every 16 channels.
• Versatility: Supports various signal types and output functions.
• Reliability: Designed for harsh industrial environments.
