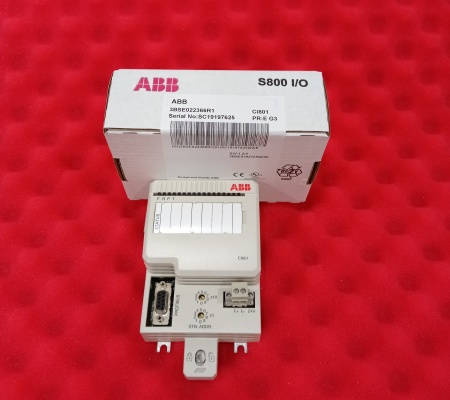

ABB CI801 3BSE022366R1 Communication Interface Module

S800 I/O is a comprehensive, distributed and modular process I/Osystem that communicates with parent controllers and PLCs overindustry-standard field buses. The CI801 Fieldbus CommunicationInterface (FCI) module is a configurable communication interfacethat performs operations such as signal processing, gathering of supervision information, OSP handling, Hot Configuration InRun,HART pass-trough and configuration of I/O modules. The FCIconnects to the controller through of the PROFIBUS-DPV1 fieldbus.

Environmental and Certifications

Electrical Safety EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201

Hazardous Locations C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2

Maritime Approvals ABS, BV, DNV-GL, LR

Operating Temperature 0 to +55 °C (+32 to +131 °F), Certified for +5 to +55 °C

Storage Temperature -40 to +70 °C (-40 to +158 °F)

Pollution Degree 2, IEC 60664-1

Corrosion Protection ISA-S71.04: G3

Relative Humidity 5 to 95 %, non-condensing

Maximum Ambient Temperature 55 °C (131 °F), Vertical Mounting 40 °C (104 °F)

Protection class IP20, compliant with EN60529, IEC 529

RoHS compliance DIRECTIVE/2011/65/EU (EN 50581:2012)

WEEE compliance DIRECTIVE/2012/19/EU

Frequently asked questions about the product are as follows:

-What functions does ABB CI801 have?

ABB CI801 is a Profibus DP-V1 communication interface module. Its main functions include achieving high-speed and stable data transmission, supporting multiple communication protocols, seamlessly connecting with multiple hardware devices for system integration, and being able to parse and process data.

-What communication protocols does it support?

ABB CI801 supports a variety of common communication protocols, such as Profibus DP-V1 protocol, as well as TCP/IP, UDP, Modbus and other communication protocols. Users can flexibly select and configure the protocols used according to specific application scenarios and device compatibility requirements.

-How does CI801 achieve multi-device connection and communication?

As a communication interface module, CI801 establishes connections with different devices through its equipped communication interface. It can parse and process data from different devices, and accurately transmit data to the target device according to the corresponding protocol, thereby achieving efficient communication and collaborative work between multiple devices.
