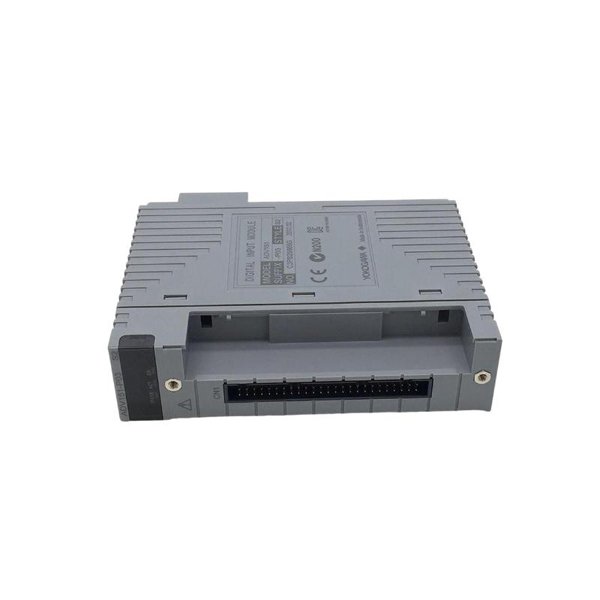

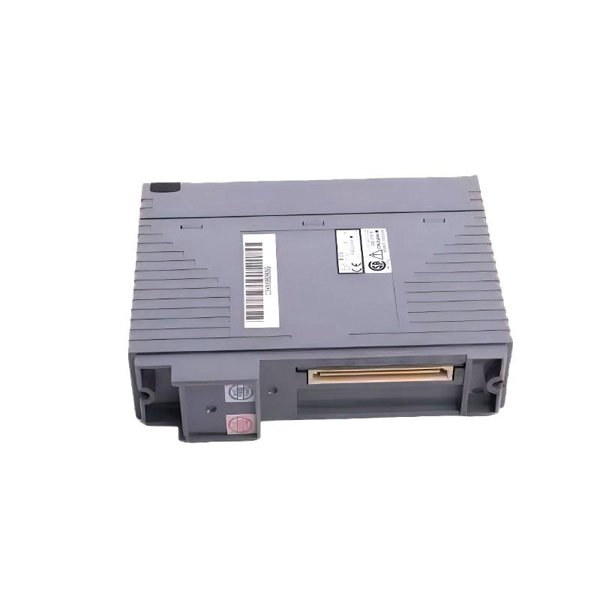

Yokogawa ADV142-P03 Digital Input Module

The Yokogawa ADV142-P03 is a digital input module designed to integrate seamlessly with the Adeno-Vision series of programmable automation systems. This module allows you to monitor and process digital signals from various field devices such as sensors, switches, relays, and limit switches, converting them into a format that can be used by control systems for automation purposes.

Designed for high reliability and robustness, the ADV142-P03 is ideal for use in industrial environments where precision and efficiency are critical. It offers a compact form factor, energy-efficient operation, and the ability to handle digital inputs across a range of industrial applications, from process automation to machine control and manufacturing operations.

This module ensures that data transmission from field devices is accurate, facilitating better control and decision-making within automated systems. It is widely used in industries such as power generation, chemical processing, and manufacturing, where the constant monitoring and control of various operational parameters are essential for optimal performance.

Technical Parameters

Applications

The ADV142-P03 digital input module is versatile and can be used in a wide range of industrial applications that require the collection and processing of digital signals. Its key applications include:

• Process Automation: In industries like chemicals, pharmaceuticals, and food processing, this module is used to monitor limit switches, sensors, and other field devices. The module ensures reliable data collection and control of various processes, such as fluid management, pressure control, and temperature regulation.

• Manufacturing Automation: The ADV142-P03 module is used in automated manufacturing environments to collect signals from machinery and equipment. It helps to improve operational efficiency by continuously monitoring and controlling assembly lines, robotic arms, and conveyor belts.

• Machine Control: In industrial machine control, the ADV142-P03 module is essential for reading inputs from switches, relays, and sensors. It helps control systems determine the operational state of the machines, ensuring smooth operation and preventing potential failures.

• Building Automation: The module is also useful in building control systems, including HVAC (Heating, Ventilation, and Air Conditioning), lighting control, and energy management. It allows for seamless integration and real-time monitoring of the building’s operational state.

Advantages

1. Compact and Lightweight: The ADV142-P03 module features a compact size (107.5 × 130 × 32.8 mm) and a lightweight build (0.3 kg), making it easy to install in tight spaces without compromising on functionality.

2. High Reliability: Designed with a high Mean Time Between Failures (MTBF) of 500,000 hours, this module provides long-term, dependable operation, reducing the need for frequent maintenance or replacements.

3. Wide Input Voltage Range: The module operates with a nominal input voltage of 24 VDC, allowing it to integrate easily into a variety of industrial systems that use different voltage standards.

4. Versatile Input Type: With support for dry contact digital inputs, the ADV142-P03 module is compatible with a broad array of field devices, such as sensors, relays, and limit switches, making it highly versatile in different applications.

5. Energy-Efficient: The module consumes only 2 W of power, making it energy-efficient and contributing to lower overall system operating costs.

6. Robust Environmental Performance: With an operating temperature range of -20°C to +60°C and humidity tolerance between 5% and 95% (non-condensing), the module is capable of functioning in a wide range of industrial environments, from cold storage facilities to high-temperature manufacturing plants.

7. Ease of Integration: The ADV142-P03 is designed for easy integration into existing systems, offering seamless communication and data transfer with Yokogawa’s broader automation and control solutions.

FAQ

Q1: What is the nominal input voltage for the Yokogawa ADV142-P03 digital input module?

A1: The ADV142-P03 operates with a nominal input voltage of 24 VDC, which is typical for many industrial control systems.

Q2: How many digital input points are supported by the ADV142-P03 module?

A2: This module supports 8 digital input points, allowing it to handle multiple field devices at once.

Q3: What types of signals does the ADV142-P03 module handle?

A3: The ADV142-P03 module handles 0-24 V DC digital signals, which are commonly used in dry contact sensors and switches.

Q4: What is the physical size of the ADV142-P03 module?

A4: The ADV142-P03 measures 107.5 × 130 × 32.8 mm, making it compact and easy to fit into small spaces in control panels or other equipment.

Q5: How much does the ADV142-P03 module weigh?

A5: The ADV142-P03 weighs only 0.3 kg, making it lightweight and easy to handle during installation.

Q6: What is the operating temperature range for the ADV142-P03 module?

A6: The module operates in a temperature range of -20°C to +60°C, ensuring reliable performance in a variety of environmental conditions.

Q7: How much power does the ADV142-P03 module consume?

A7: The ADV142-P03 consumes just 2 W of power, which contributes to its energy-efficient operation.

Q8: What is the mean time between failures (MTBF) for the ADV142-P03?

A8: The MTBF for the ADV142-P03 is 500,000 hours, indicating its reliability and long service life.

Q9: Can the ADV142-P03 module operate in environments with high humidity?

A9: Yes, the module can function in environments with relative humidity levels between 5% and 95% (non-condensing), making it suitable for a wide range of industrial environments.

Q10: Is the ADV142-P03 module compatible with other Yokogawa control systems?

A10: Yes, the ADV142-P03 is designed for easy integration with Yokogawa’s Adeno-Vision series and other Yokogawa automation systems, providing seamless data transfer and control.
