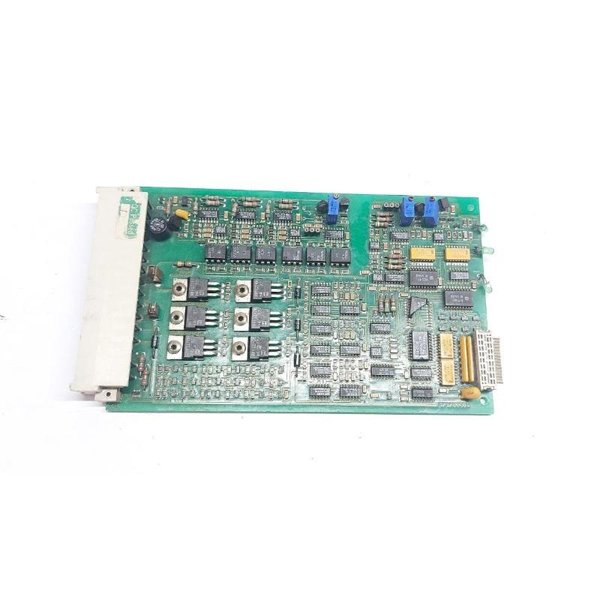

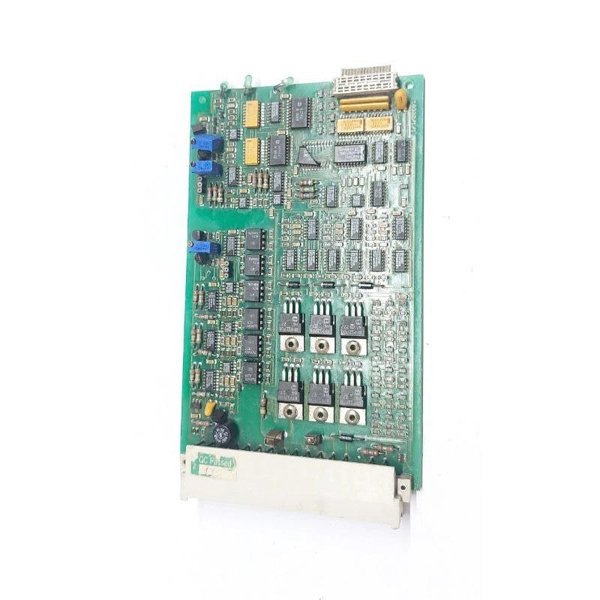

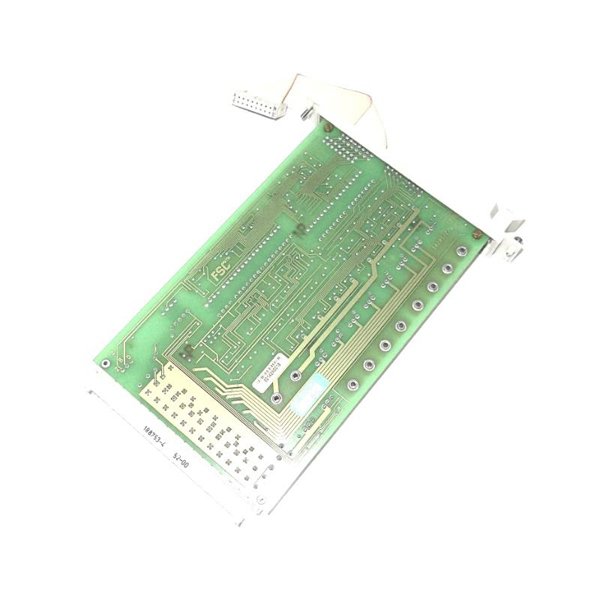

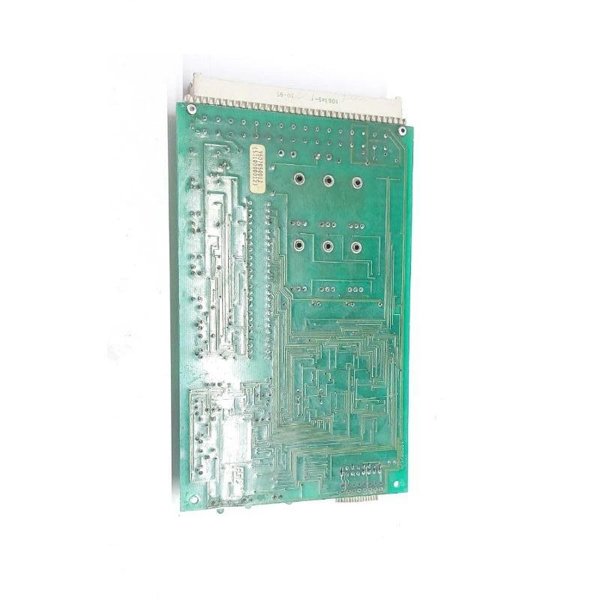

Honeywell FSC 10302/1/1 Watchdog Repeater Module
Manufacturer:Honeywell
Product Number:FSC 10302/1/1
Product Type:Watchdog Repeater Module
Origin:USA
Dimensions:160 x 100 x 25 mm
Weight:0.12 kg
Views:53
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell FSC 10302/1/1 Watchdog Repeater Module is designed to monitor the 5 VDC and 24 VDC power supplies to I/O modules. It provides a watchdog output signal to ensure output modules operate within safe voltage conditions. It is crucial in configurations combining redundant and non-redundant I/O, or when the required watchdog current exceeds 900 mA.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 10302/1/1 |
| Approvals | CE, TUV, UL |
| Software Versions Supported | All |
| Space Requirement | 4 TE, 3 HE (4 HP, 3U) |
| Power Supply | 5 VDC 35 mA; 24 VDC 25 mA |
| Max Output Current (WDR OUT) | 900 mA |
| Input Current (WDG1 + WDG2) | 0.1 mA |
| Dimensions (L x W x H) | 160 x 100 x 25 mm |
| Weight | 0.12 kg |
Applications
The 10302/1/1 Watchdog Repeater Module is used in:
-
Multi-PSU configurations to handle additional power supply units.
-
Systems where 24 VDC exceeds safe limits or comes from high-voltage external sources.
-
Configurations requiring watchdog current above 900 mA.
-
Mixed redundant and non-redundant I/O systems.
-
Monitoring 5 VDC when no dedicated monitoring is present.
Advantages
-
Ensures reliable power monitoring for both 5 VDC and 24 VDC.
-
Supports safety-critical operations by signaling unsafe conditions.
-
Compact and easy to install in standard I/O racks.
-
Hot-swappable in most configurations.
FAQs
Q1: What power supplies does the 10302/1/1 monitor?
A1: It monitors both 5 VDC and 24 VDC supplies.
Q2: What is the maximum output current it can handle?
A2: Up to 900 mA.
Q3: Can it be installed in redundant and non-redundant I/O configurations?
A3: Yes, it supports both configurations.
Q4: Is it hot-swappable?
A4: Yes, but it may cause the Central Part to shut down in some configurations.
Q5: What approvals does it have?
A5: CE, TUV, and UL.
Q6: How much rack space does it require?
A6: 4 TE width, 3 HE height (4 HP, 3U).
Q7: Is additional software required for operation?
A7: No, it is compatible with all software versions.
Q8: Where should it be placed in the rack?
A8: In the I/O section corresponding to the monitored output modules.
Q9: Does it support external 24 VDC power supplies exceeding 31 V?
A9: Yes, as long as maximum output stays below 37 V under fault conditions.
Q10: What is its physical size?
A10: 160 x 100 x 25 mm.
