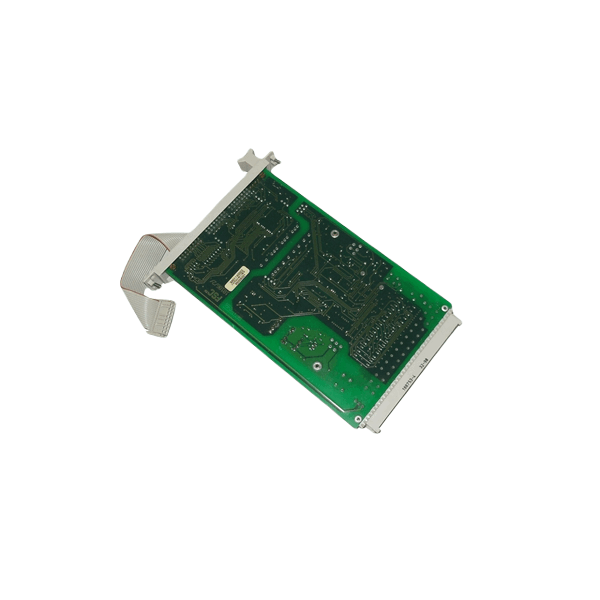

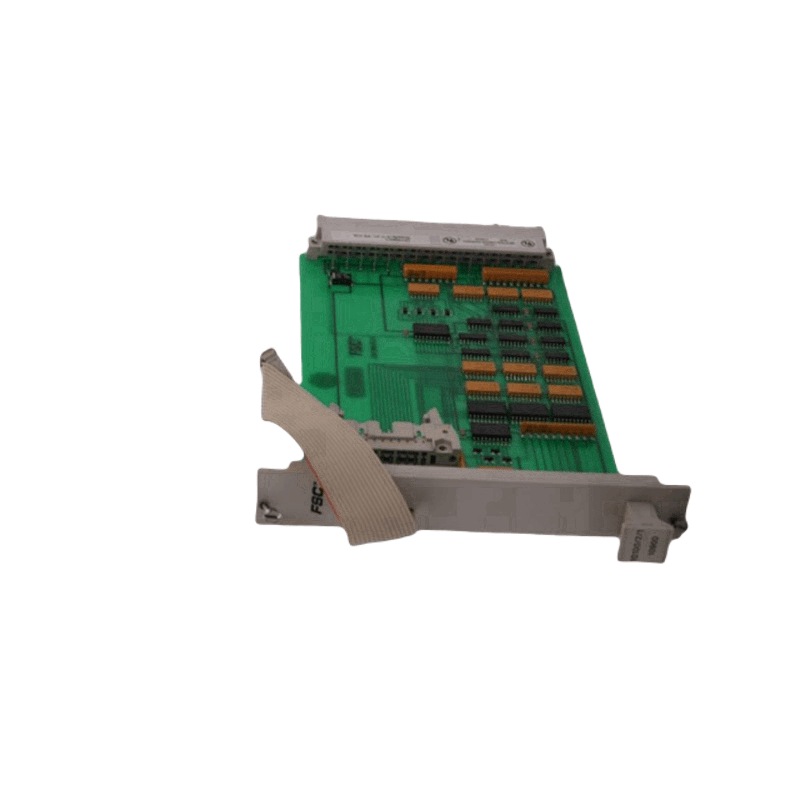

Honeywell 10101/2/1 Fail-Safe Digital Input Module (24 Vdc, 16 channels)

The fail-safe digital input module 10101/2/1 features sixteen 24 Vdc digital input channels. The module’s input stage operates in a ‘fail-to-safe’ manner, ensuring that a component failure results in a de-energized input signal to the processor, which is the safe condition in a typically energized system.

The remaining logic circuitry on the module is fully covered by the system’s self-test functions. Within the configured process safety time, the modules are tested for:

• Ability to receive logic level ‘0’ signals
• Ability to receive logic level ‘1’ signals
• Crosstalk between inputs

Technical Data

The 10101/2/1 module specifications include:

• General Type number: 10101/2/1 11000
• Approvals: CE, TÜV, UL
• Software versions: ≥ 3.00
• Space requirements: 4 TE, 3 HE (= 4 HP, 3U)

Power:

• Power requirements:
  • 5 Vdc: 8 mA
  • 24 Vdc internal: 110 mA
  • 24 Vdc external (input currents): 110 mA
• Ripple content (on 5 Vdc): < 0.5 Vp-p (0-360 Hz)

Input:

• Number of input channels: 16
• Maximum input voltage: 36 Vdc
• Input current: 7 mA at 24 Vdc
• Input HIGH: > 15 Vdc
• Input LOW: < 9 Vdc (I < 2 mA)
• Input delay: Typically 10 ms

Key Coding:

(See ‘Key coding’ data sheet)

• Module connector code: holes A5, C5
• Rack connector code: large pins A5, C5
