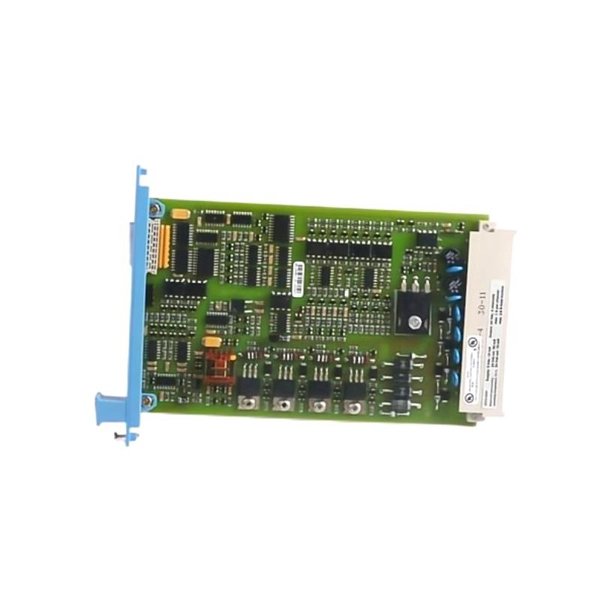

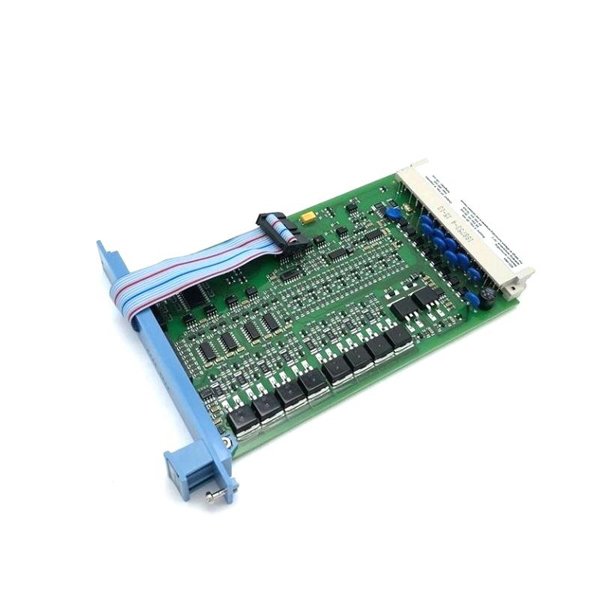

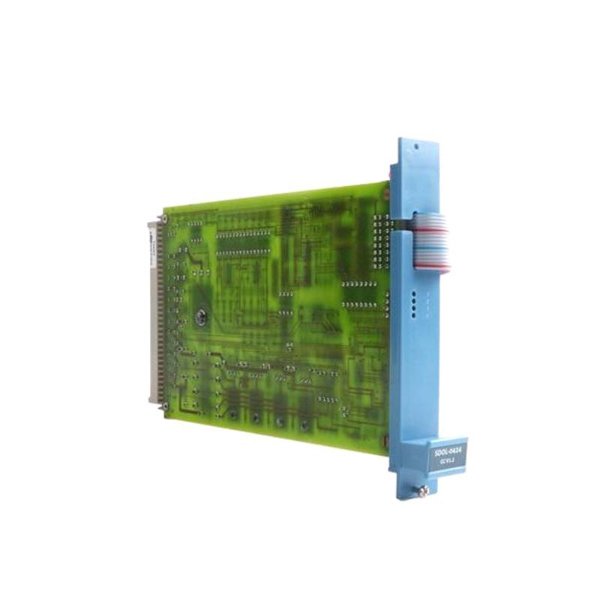

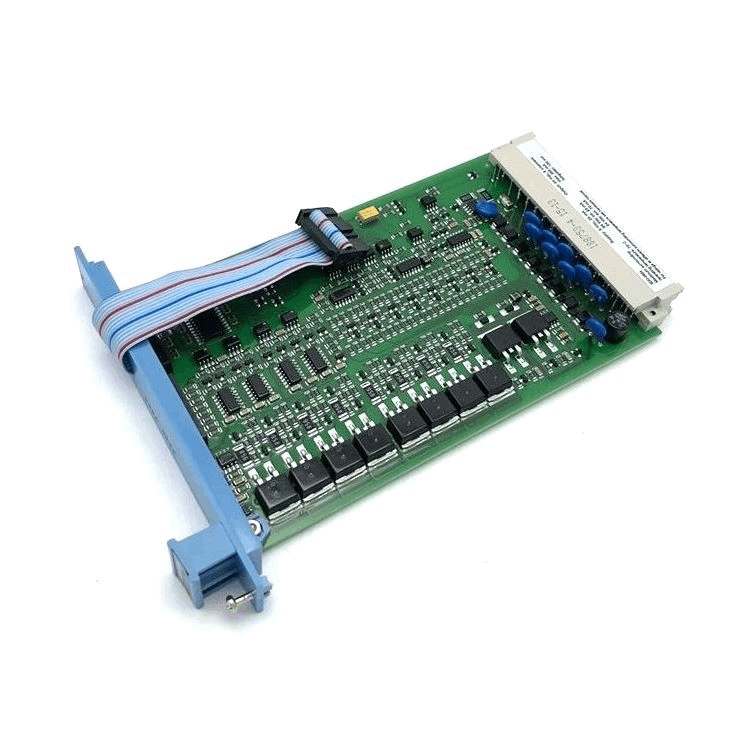

Honeywell FC-SDO-0424 Safe Digital Output Module
Item Number: FC-SDO-0424
Brand:Honeywell
Lead Time: In stock
Description:Safe Digital Output Module
Payment: T/T
Product Description
Honeywell FC-SDO-0424 is a Safe Digital Output Module that provides 4 24V DC/2A safe output channels, supporting driving resistive (such as light bulbs) and inductive (such as solenoid valves) loads, with a total load capacity of 6A.
For inductive loads, each output includes a suppression diode. These outputs (including the suppression diode) are fully tested and can be used in safety-related applications.
Function & Features
During the set Diagnostic Test Interval, the FC-SDO-0424 module automatically detects the following items:
- Output power-off capability: Verify whether the output can be cut off normally.
- Group power-off capability: Forcedly cut off each group (2 channels as a group) of outputs through the secondary power-off means (SMOD).
- Channel crosstalk: Detect interference between output signals.
- Suppression diode function: Ensure that the diode works properly.
Secondary Power Off Means (SMOD):
FC-SDO-0424 directly forces power off through a watchdog or processor, which is not affected by the application logic results, ensuring rapid shutdown in the event of a fault.
Specifications
|
Category |
Parameter |
Specification |
| Honeywell | FC-SDO-0424 | Safe Digital Output Module |
|
Power Requirements |
5V DC Current Draw |
12 mA |
|
24V DC Internal Current Draw |
35 mA |
|
|
24V DC External Current Draw |
50 mA (without output load) |
|
|
Output Channels |
Number of Channels |
4 (2 groups of 2) |
|
Output Specifications |
Output Type |
24V DC solid-state source, short-circuit proof |
|
Max Channel Current |
2 A (see General information about output modules) |
|
|
Max Total Module Load |
6 A (module dissipation limit) |
|
|
Max Lamp Load |
417 mA (10 W) |
|
|
Max Load Capacitance |
1 µF |
|
|
Voltage Drop |
< 1.3V DC at 2 A |
|
|
Off Current |
< 0.1 mA |
|
|
Watchdog (WDG) |
WDG Input Current |
8 mA |
