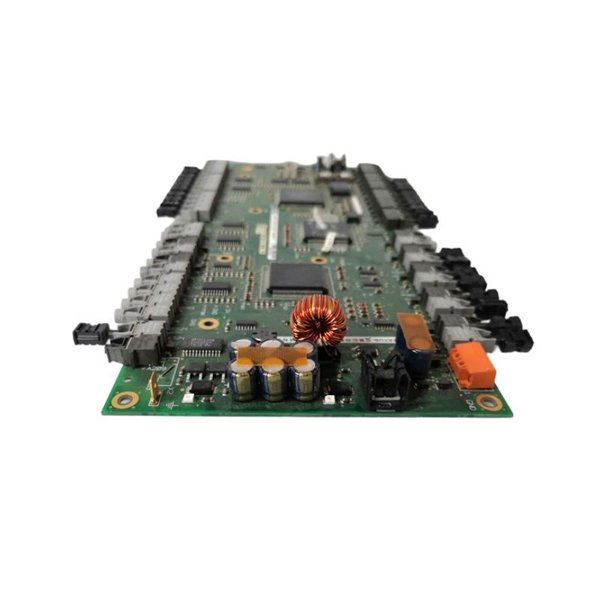

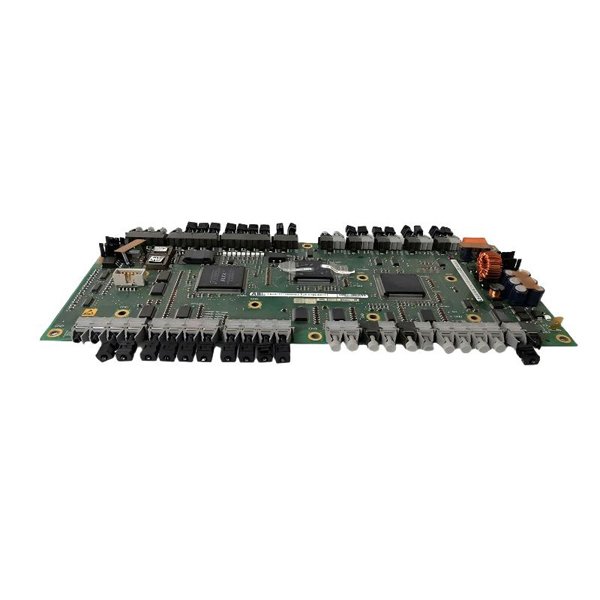

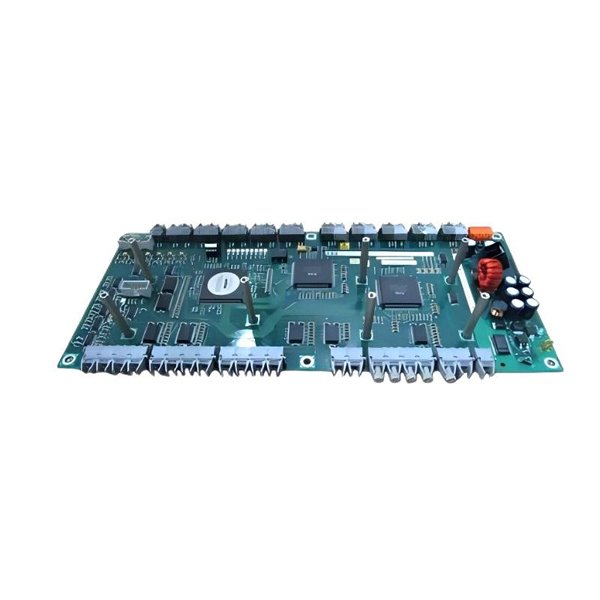

ABB UFC760BE102 3BHB007030R0102 IGCT Module

The ABB UFC760BE102 3BHB007030R0102 is a highly efficient Integrated Gate Commutated Thyristor (IGCT) module designed for high-power switching applications. It is primarily used in industrial motor drives, power converters, and renewable energy systems where efficient and reliable power switching is essential. Known for its robustness and efficiency, this IGCT module is engineered to deliver outstanding performance in a variety of demanding environments.

This module is specifically designed to support high-speed switching, low losses, and minimal EMI, making it ideal for applications that require high precision and reliability. ABB’s UFC760BE102 module is a trusted choice in applications where performance, durability, and long-term reliability are critical.

Product Specifications

Below is a table that provides the key specifications of the ABB UFC760BE102 3BHB007030R0102 IGCT module:

Product Applications

The ABB UFC760BE102 IGCT module is ideal for high-power applications across multiple industries. Its robust performance in switching and reliability make it suitable for a wide range of uses, including:

1. Motor Drives: Perfect for high-power motor drives used in industrial processes and robotics, where fast switching and high efficiency are essential.

2. Power Converters: Suitable for use in power electronic converters, helping to efficiently convert AC to DC or vice versa in various industrial and renewable energy applications.

3. Renewable Energy Systems: Commonly used in photovoltaic systems and wind turbine converters where high reliability and switching precision are critical.

4. Traction Systems: Utilized in railway and electric vehicle traction systems for efficient energy conversion and power delivery.

5. HVDC (High-Voltage Direct Current) Systems: Ideal for high-voltage direct current applications, ensuring efficient and safe power transmission.

6. Uninterruptible Power Supplies (UPS): Provides reliable performance in UPS systems to ensure continuous power during grid failures, critical for data centers and hospitals.

Product Advantages

1. High Switching Frequency: The UFC760BE102 can operate at switching frequencies of up to 50 kHz, enabling fast and efficient power conversion.

2. Low Conduction Losses: The IGCT module minimizes conduction losses, which enhances overall efficiency and reduces energy waste.

3. Wide Temperature Range: The product operates in a temperature range of -40°C to +125°C, making it suitable for use in extreme environments.

4. Integrated Gate Drive Circuit: The module includes an integrated gate drive circuit, simplifying installation and reducing the need for external components.

5. Low Switching Losses: The module is designed with low switching losses, making it suitable for high-efficiency applications.

6. High Reliability: Built with high-performance components, the UFC760BE102 offers exceptional reliability, ensuring long-term operation without frequent maintenance.

7. Compact Design: With compact dimensions (160 x 90 x 30 mm) and lightweight (0.6 kg), it is easy to integrate into existing systems with minimal space requirements.

8. Enhanced Safety Features: The IGCT module incorporates safety features, including low leakage current and protection against overvoltage and overcurrent, ensuring safe operation.

Frequently Asked Questions (FAQ)

1. What is the maximum current rating of the ABB UFC760BE102 IGCT module?

   • The module can handle a maximum current of 760 A.

2. What voltage does the ABB UFC760BE102 module support?

   • The module is rated for 3.3 kV.

3. What is the switching frequency capability of this IGCT module?

   • The module can operate at switching frequencies of up to 50 kHz.

4. What is the typical operating temperature range for the UFC760BE102 module?

   • It can operate in temperatures ranging from -40°C to +125°C.

5. Can the ABB UFC760BE102 module be used in renewable energy systems?

   • Yes, it is ideal for applications such as photovoltaic and wind turbine power conversion.

6. How much does the ABB UFC760BE102 IGCT module weigh?

   • The module weighs 0.6 kg.

7. What are the key advantages of using an IGCT module over a traditional thyristor?

   • IGCTs offer faster switching speeds, lower switching and conduction losses, and are more efficient in high-power applications.

8. What is the leakage current of the ABB UFC760BE102 module?

   • The leakage current is less than 10 mA, ensuring minimal energy loss.

9. Is the ABB UFC760BE102 IGCT module easy to integrate into existing systems?

   • Yes, it comes with an integrated gate drive circuit, simplifying installation and system integration.

10. What are the typical applications for the ABB UFC760BE102 module?

    • It is widely used in motor drives, power converters, renewable energy systems, and HVDC applications.
