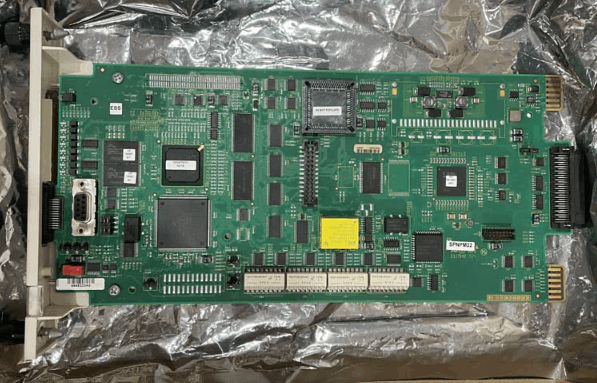

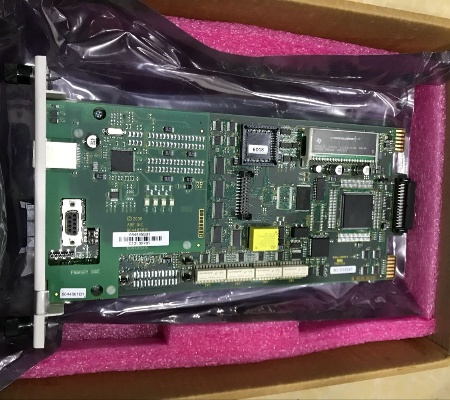

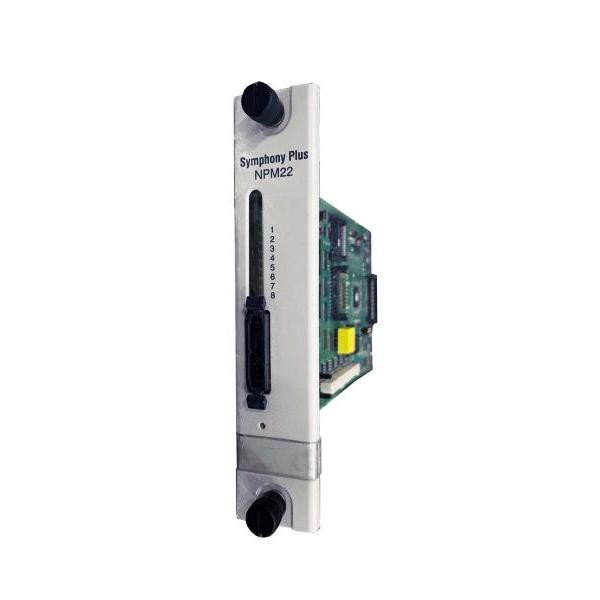

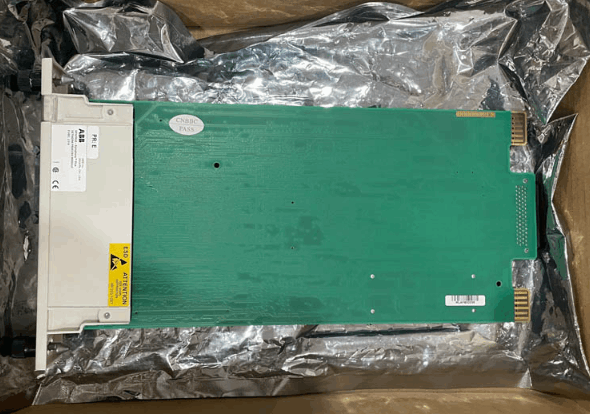

ABB SPNPM22 Network Processing Module
Item Number:SPNPM22
Brand: ABB
Lead Time: In stock
Description:Network Processing Module
Payment: T/T
Product Description
ABB SPNPM22 network processing module is a network processor module in the ABB Symphony Plus control system HR series (Harmony Rack), acting as a gateway between Cnet and Controlway.
It stores the Harmony Control Unit (HCU) database, directs the communication process between the modules on Controlway and the SPNIS21 module, and is one of the key components in the automation system to achieve data interaction between devices and coordinated system operation.
Fuctions & Features
- SPNPM22 serves as a dedicated channel between Cnet and Controlway to achieve 1Mbps data exchange.
- SPNPM22 synchronously manages Modulebus (83.3kbps) communication.
- 512KB NVRAM saves key configuration parameters (power is not lost).
- 2MB Flash ROM stores firmware and system programs.
- SPNPM22 supports online firmware upgrade (via Flash ROM).
- SPNPM22 manages the Harmony Control Unit (HCU) database.
Specification
|
Parameter |
Value |
|
Memory |
8 MB DRAM; 512 KB NVRAM; 2 MB flash ROM |
|
Power requirements |
+5 VDC at 2 A; 10 W typical |
|
Ports |
1 mini-USB Diagnostic port |
|
Communication rates |
Controlway: 1 Mbaud Modulebus: 83.3 kbaud |
|
Ambient temperature |
0 °C to 70 °C (32 °F to 158 °F) |
|
Product Net Depth / Length |
73.66 mm |
|
Product Net Height |
360.68 mm |
|
Product Net Width |
279.4 mm |
|
Product Net Weight |
0.7 kg |
