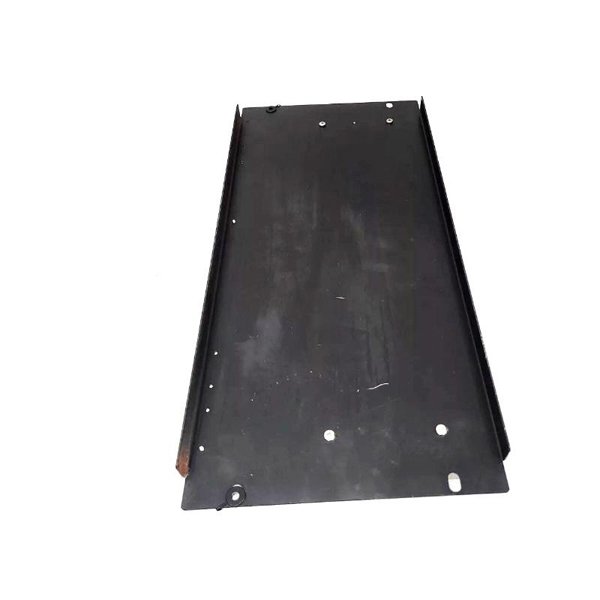

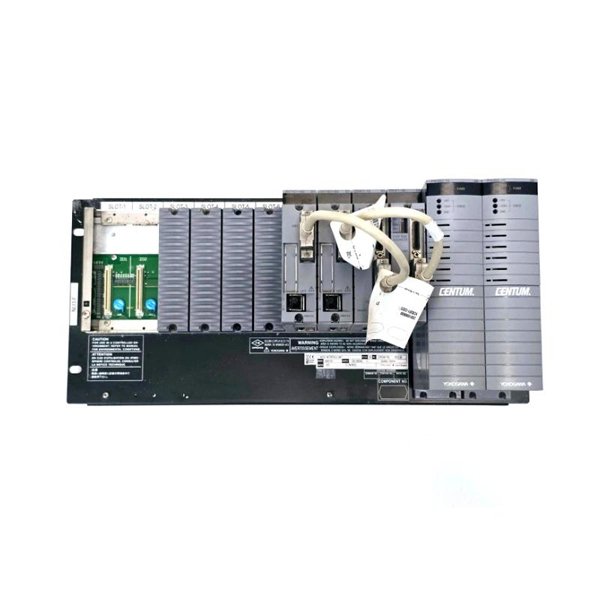

Yokogawa ANB10D-420/CU2T ESB Bus Node Unit

Name: Yokogawa ANB10D-420/CU2T ESB Bus Node Unit
Brand: Yokogawa
Availability: InStock

Manufacturer:Yokogawa

Product Number:ANB10D-420/CU2T

Product Type:ESB Bus Node Unit

Origin:Japan

Dimensions:482.6 × 221.5 × 205 mm

Weight:10 kg

Views:28

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Contact Sales

Product Description

The Yokogawa ANB10D-420/CU2T is an ESB Bus Node Unit designed for high-reliability communication in Yokogawa distributed control systems (DCS). It ensures seamless data exchange between field devices and the Field Control Unit (FCU) through the Ethernet-based Serial Bus (ESB). The unit supports dual-redundant power configurations, making it suitable for critical industrial applications requiring continuous operation and high availability.

Technical Specifications

Parameter	Specification
Model	ANB10D-420/CU2T
Function	Node unit for dual-redundant ESB bus
Power Supply Options	100–120 V AC / 24 V DC
Power Consumption	200 VA, 5.5 A
Mounting	19-inch rack mountable (M5 x 4 screws)
Dimensions	482.6 × 221.5 × 205 mm
Weight	10 kg
Connector Unit	CU2T (with ESB bus terminator)
Redundancy Support	Dual-redundant configuration
Software License	NDEL for node expansion

Applications

Centralized control in process industries
Redundant and high-availability DCS systems
Interface with analog and digital field devices
Industrial plants requiring continuous operation
ESB network node expansion and integration

Advantages

Dual-redundant power and communication enhance system reliability
Compact 19-inch rack design saves space in control cabinets
Supports both analog and digital I/O communication
Facilitates scalable ESB network expansion
Simplifies maintenance with modular connector units
High-availability design ensures uninterrupted industrial operations

FAQ

1. What is the main function of the ANB10D-420/CU2T?

It serves as a communication node between field devices and the DCS via ESB, supporting dual-redundant configurations.

2. Can this unit be installed in a standard 19-inch rack?

Yes, it is designed for 19-inch rack mounting using M5 screws.

3. What power options are supported?

100–120 V AC or 24 V DC.

4. Does it support redundant power supply?

Yes, the ANB10D-420/CU2T supports dual-redundant power for high reliability.

5. What are the dimensions and weight of this unit?

Dimensions: 482.6 × 221.5 × 205 mm, Weight: 10 kg.

6. Is it compatible with analog and digital I/O devices?

Yes, it supports both analog and digital signals.

7. What does the CU2T suffix indicate?

It indicates the connector unit with an ESB bus terminator.

8. Can the unit be expanded with additional nodes?

Yes, with the NDEL software license, node expansion is supported.

9. Is this unit suitable for critical industrial operations?

Yes, its dual-redundant configuration ensures high availability and reliability.

10. How does it improve system maintenance?

The modular connector unit design allows easy installation and replacement, simplifying maintenance.
