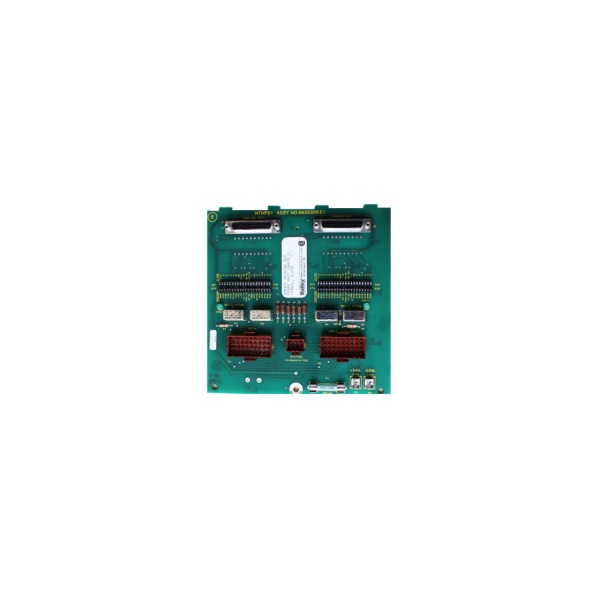

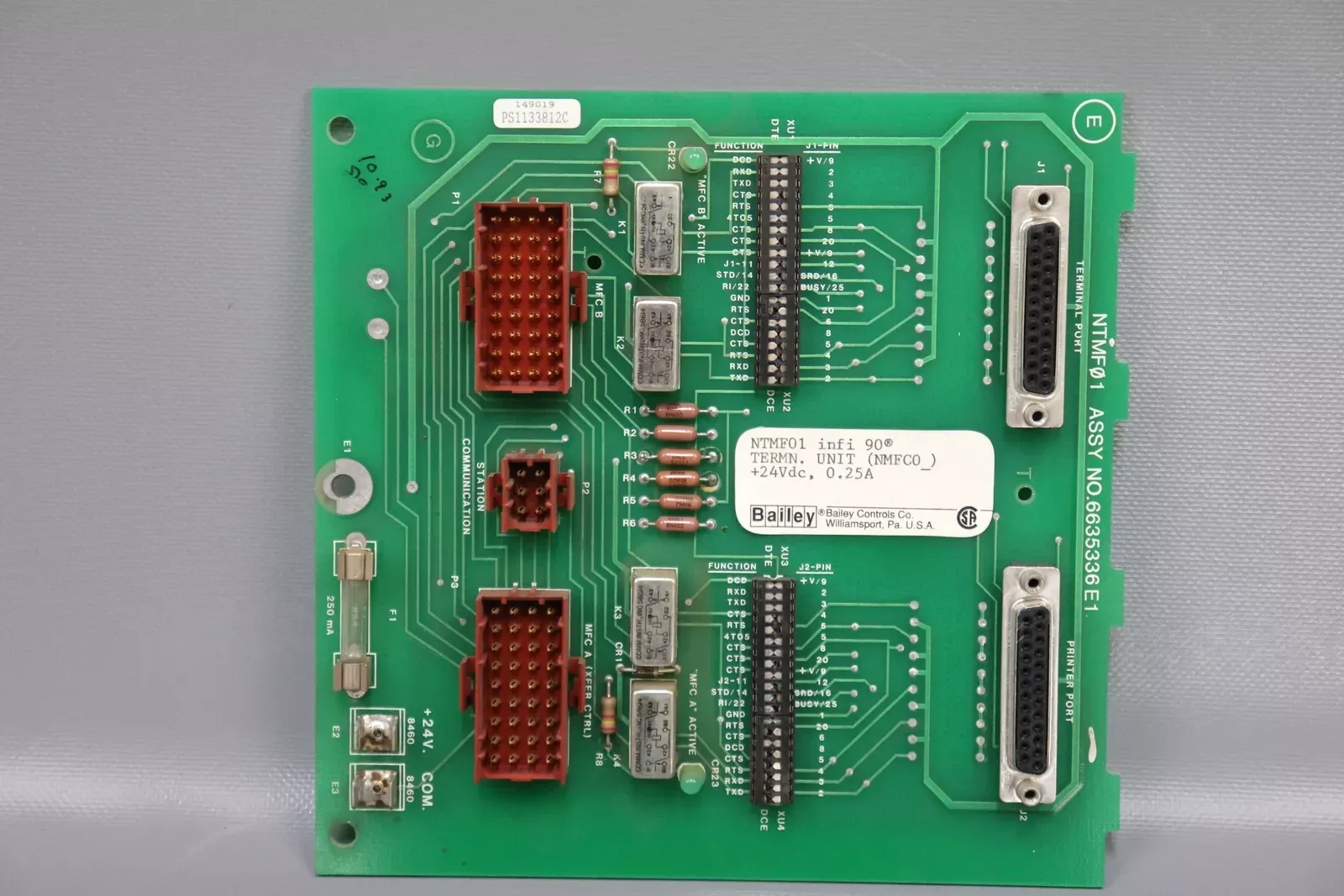

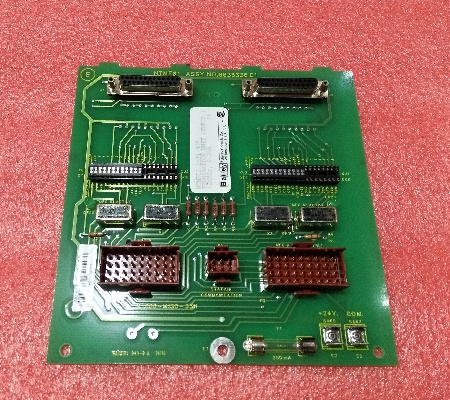

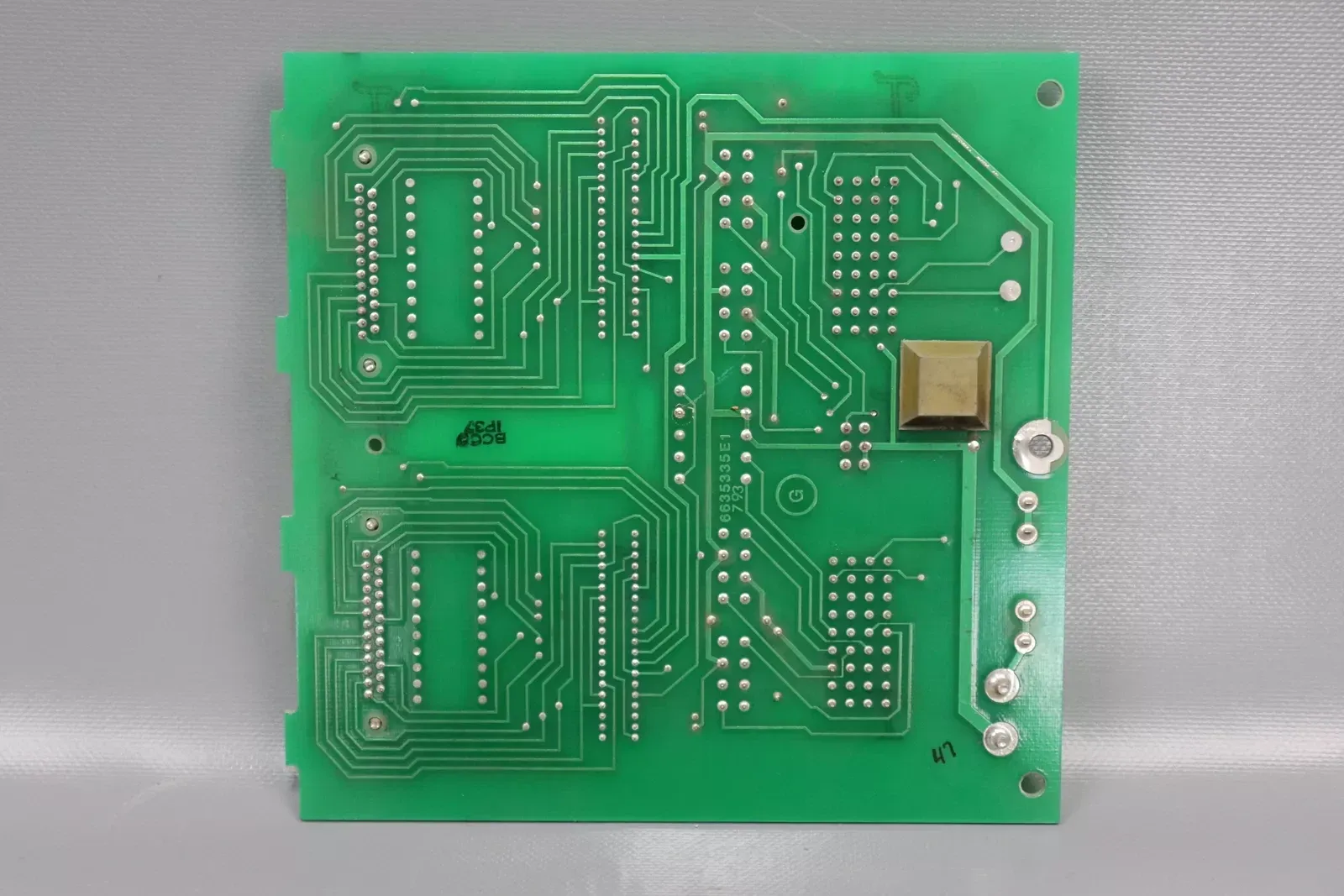

ABB NTMF01 Multi Function Termination Unit

ABB NTMF01 Multi Function Termination Unit is an essential component in ABB automation and control systems. It provides terminal, wiring and protection functions for various industrial equipment and systems. As part of the system integration infrastructure, it is used to manage the connection between field devices and control systems, SCADA systems or distributed control systems.

The NTMF01 simplifies system integration and wiring by handling multiple termination tasks with one unit. It terminates the wiring of field devices and connects them to a controller or communication system. A variety of signals such as digital, analog, and communication signals can be terminated using the NTMF01, making it a versatile component for a variety of industrial automation systems.

One of the main functions of the NTMF01 is to isolate and protect the signals between field devices and the control system. This ensures that the transmitted signals are not interfered with, noisy, or damaged by ground loops or voltage spikes. The unit typically features overvoltage protection, surge protection, and electromagnetic interference (EMI) filtering to increase the reliability and life of the connected equipment.

The NTMF01 helps simplify the wiring process by providing clear, organized termination points for field devices, thereby reducing the complexity of the installation and maintenance process.

Frequently asked questions about the product are as follows:

-What are the main functions of the ABB NTMF01 multifunction terminal unit?

The main function of the NTMF01 is to terminate the wiring from field devices and connect it to the control system while providing signal isolation, protection, and simplifying the wiring process. It is used to ensure reliable data transmission and secure connections in industrial automation systems.

-How to install the NTMF01 terminal unit?

Mount the NTMF01 on a DIN rail inside a control panel or enclosure. Connect the field wiring from sensors, actuators, or other devices to the appropriate terminals on the device. Connect the output signals to the control system or PLC. Make sure all connections are secure and properly configured for the intended application.

-How to troubleshoot problems with the NTMF01?

Make sure all connections are correct and there are no loose or damaged wires. The module may contain LED indicators to show power, communication, or fault status. Use these indicators to diagnose the problem. If there is a problem with signal transmission, use a multimeter to check the voltage or current value at the terminals. Make sure the module is operating within the recommended temperature range and that no electromagnetic interference (EMI) or overvoltage conditions are affecting the system.
