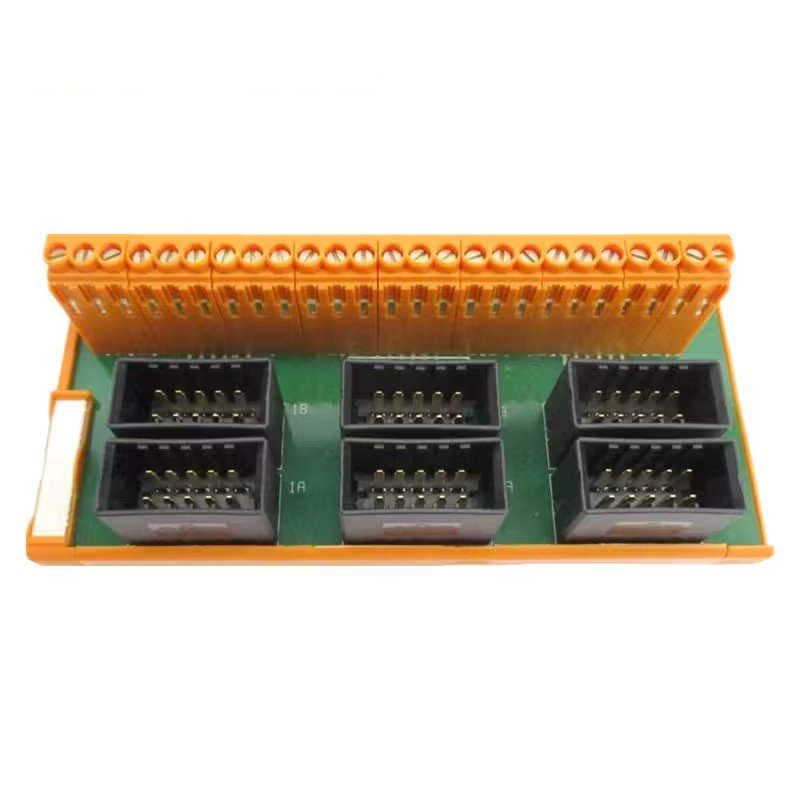

Honeywell FTA-T-02 Fail-Safe Digital Output Module
Manufacturer :Honeywell
Product No. :FTA-T-02
Condition ：Brand NEW & in Stock
Product Type :Fail-Safe Digital Output Module
Product Origin :USA
Payment :T/T, Western Union
Price:$94
Dimensions:14.5 cm x 7 cm x 5.7 cm
Weight:0.44 lbs
Approvals :CE, TUV, UL508, CSA
Warranty :12 months
Product Description
The Honeywell FTA-T-02 is a fail-safe digital output module, designed to ensure reliable and safe operation in industrial automation systems. It serves as an interface between system interconnection cables (SIC) and external field wiring, enabling smooth control in various industrial applications. Built for robustness and high reliability, this module is ideal for controlling and monitoring processes in harsh environments.
Technical Specifications
- Function: Provides 24 digital output channels for control devices in industrial processes.
- Number of Channels: 24 outputs, organized into 6 groups of 4.
- Power Supply: Compatible with 24/48/60 Vdc power supply.
- Operating Temperature: -25°C to 70°C.
- Humidity Range: 5% to 95% RH.
- Certifications: CE, RoHS, UL.
-
Maximum Voltage:
- 36 Vac / 50 Vdc (IEC 1010, overvoltage category 3)
- 125 Vac / 150 Vdc (IEC 1010, overvoltage category 2)
- Maximum Continuous Current per Channel: 2 A.
-
Termination Type: Screw terminals.
- Max. Wire Diameter: 0.25 cm² (AWG 14).
- Strip Length: 0.7 cm (0.28 in).
- Tightening Torque: 0.5 Nm (0.37 ft-lb).
- Dimensions: 14.5 cm x 7 cm x 5.7 cm.
- Weight: 0.44 lbs
- DIN Rail Compatibility: TS32 / TS35 x 7.5.
- Used Rail Length: 14.6 cm (5.75 in).
