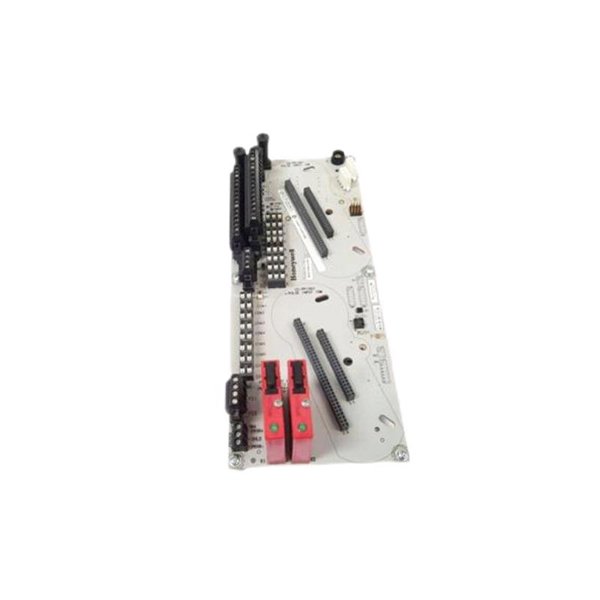

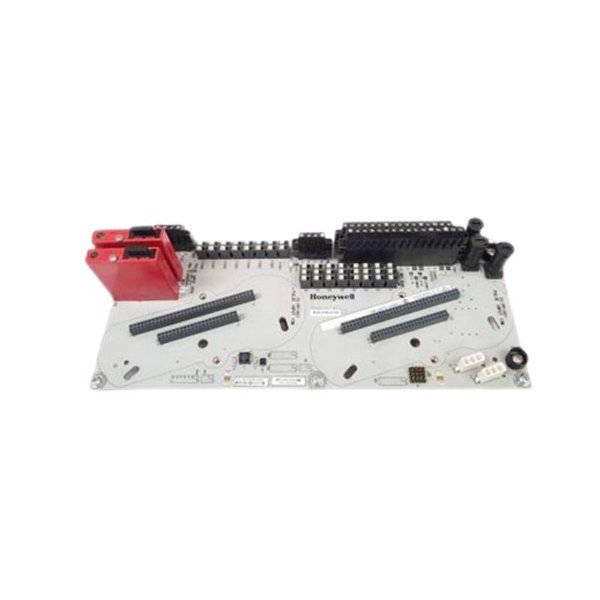

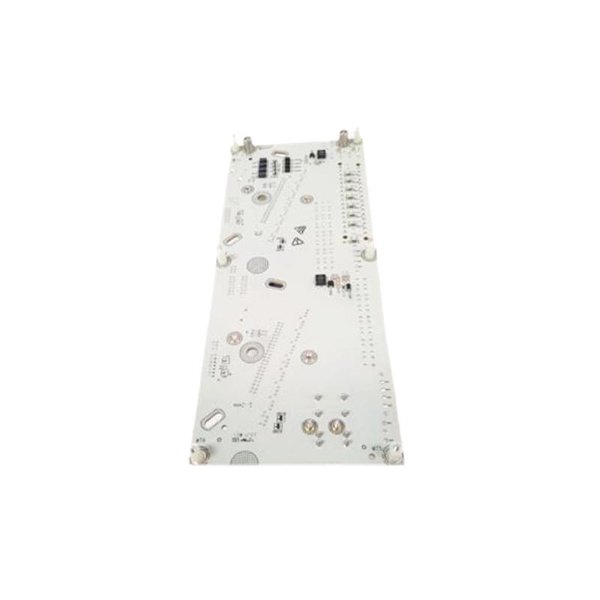

Honeywell CC-TPIX11 51306544-125 Pulse Input Module

The CC-TPIX11 Pulse Input Module is engineered to handle pulse signals from sensors and meters, converting them into digital data for processing by Honeywell’s C300 controllers. It supports dual pulse inputs per ISO6551/API 5.5 standards, offering features like extensive self-diagnostics and optional redundancy for enhanced reliability. ​

Product Specifications

Product Applications

The CC-TPIX11 module is ideal for applications requiring precise pulse signal monitoring and processing, such as:​

• Flow Measurement Systems: Captures pulse signals from flow meters to monitor fluid dynamics accurately.​

• Speed Monitoring: Processes pulse inputs from speed sensors to oversee machinery performance.​

• Metering Systems: Collects data from utility meters for consumption analysis and billing purposes.​

Product Advantages

• High Measurement Accuracy: Ensures precise frequency, period, and pulse width measurements for reliable data.​

• Extensive Self-Diagnostics: Provides comprehensive diagnostics to detect and address potential issues proactively.​

• Optional Redundancy: Offers redundancy configurations to enhance system reliability and uptime.​

• Compliance with Standards: Adheres to ISO 6551/API 5.5 standards, ensuring compatibility and fidelity in pulse signal processing.​

FAQ

1. What types of pulse signals can the CC-TPIX11 module process?

   The module is designed to handle electrical pulse signals from various sensors and meters, converting them into digital data for processing by Honeywell’s C300 controllers.

2. How does the module ensure measurement accuracy?

   It employs high-precision circuitry to deliver accurate frequency, period, and pulse width measurements, ensuring reliable data acquisition.

3. Can the CC-TPIX11 be used in hazardous environments?

   The suitability of the module for hazardous environments depends on specific certifications and compliance with relevant safety standards. It’s essential to consult the product documentation and assess the operating environment before deployment.

4. Is redundancy supported by the CC-TPIX11 module?

   Yes, the module offers optional redundancy configurations to enhance system reliability and minimize downtime.

5. What is the maximum number of pulse inputs the module can handle?

   The CC-TPIX11 supports up to 8 single-ended pulse inputs or 4 dual-ended inputs, depending on the configuration.

6. How does the module integrate with Honeywell’s Experion system?

   It seamlessly interfaces with the Experion C300 controller, converting pulse inputs into digital signals for processing within the system.

7. Are there any diagnostic features included with the module?

   Yes, the CC-TPIX11 provides extensive self-diagnostics to monitor performance and identify potential issues proactively.

8. What are the physical dimensions of the module?

   The module measures 63.5 x 124.46 x 307.34 mm.

9. What is the weight of the CC-TPIX11 module?

   The module weighs 0.5 kg.

10. Can the module measure both frequency and pulse width?

    Yes, the CC-TPIX11 can measure both the frequency and pulse width of the incoming pulse signals with high accuracy.
