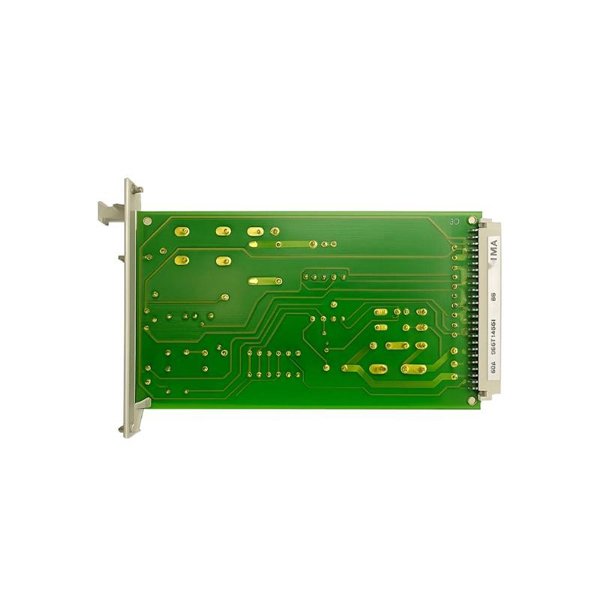

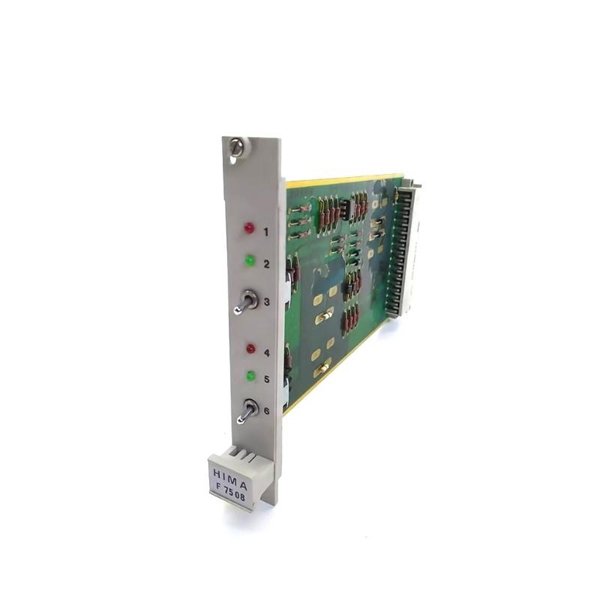

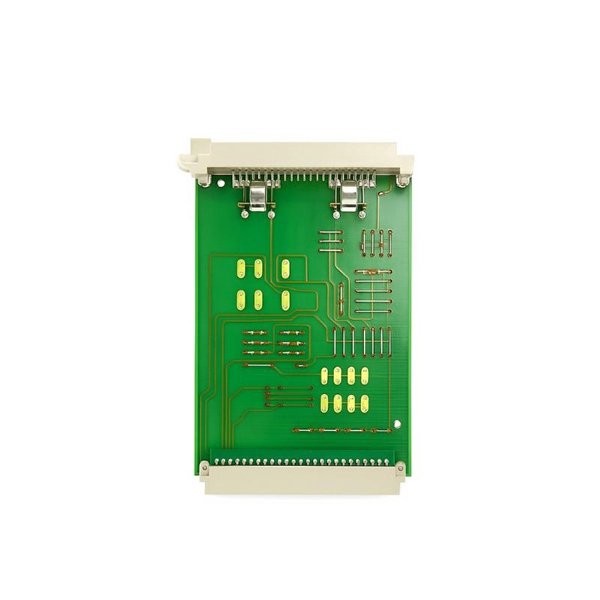

Hima F7508 Bypass Module

The HIMA F7508 is a bypass module engineered for use in safety-critical Programmable Logic Controllers (PLCs) within industrial automation systems. It facilitates the temporary bypassing of specific safety functions, enabling maintenance or troubleshooting activities without compromising the overall safety integrity of the system. Designed with a modular architecture, the F7508 integrates seamlessly into HIMA’s Eurocard-based PLC systems, ensuring compatibility and ease of installation. Its robust construction and compliance with international safety standards make it a reliable choice for industries where operational safety is paramount.

Technical Specifications

Applications

• Oil & Gas Industry: Employed in safety systems of drilling rigs, refineries, and pipelines to allow maintenance without halting operations.

• Power Generation: Used in turbine and generator control systems to facilitate safe maintenance procedures.

• Chemical Processing: Integrates into safety systems to permit troubleshooting without compromising process safety.

• Pharmaceutical Manufacturing: Allows for maintenance of automated production lines while maintaining safety compliance.

• Transportation Systems: Applied in railway and other transportation control systems to enable safe system diagnostics.

Product Advantages

• Enhanced Safety: Enables maintenance activities without disabling the entire safety system, preserving overall safety integrity.

• Modular Design: Compatible with HIMA’s Eurocard format, allowing for straightforward integration and scalability.

• Real-Time Monitoring: Provides real-time tracking of bypassed functions, ensuring transparency during maintenance.

• Robust Construction: Designed to operate reliably in harsh industrial environments with wide temperature and humidity ranges.

• Compliance: Meets international safety and environmental standards, including CE and RoHS certifications.

Frequently Asked Questions (FAQ)

1. What is the primary function of the HIMA F7508 module?

   It allows for the temporary bypassing of specific safety functions within a PLC system to facilitate maintenance or troubleshooting without compromising overall system safety.

2. Is the F7508 compatible with all HIMA PLC systems?

   The F7508 is designed to integrate with HIMA’s Eurocard-based PLC systems. Compatibility with other systems should be verified with the manufacturer.

3. What are the operating temperature limits of the F7508?

   The module operates within a temperature range of -40°C to +70°C.

4. Does the F7508 support real-time monitoring?

   Yes, it provides real-time monitoring capabilities to track bypassed functions during maintenance activities.

5. What certifications does the F7508 hold?

   The module is certified for CE and RoHS compliance, ensuring adherence to safety and environmental standards.

6. Can the F7508 be mounted on a DIN rail?

   Yes, it supports both DIN rail and rack-mounted installations.

7. What is the weight of the F7508 module?

   The module weighs 0.1 kg.

8. What communication interfaces are available on the F7508?

   It includes Ethernet and RS485 communication interfaces for integration with control systems.

9. What is the warranty period for the F7508?

   The standard warranty period is 12 months from the date of purchase.

10. Is the F7508 suitable for use in high-humidity environments?

    Yes, it is designed to operate in environments with humidity levels ranging from 5% to 95% (non-condensing).
