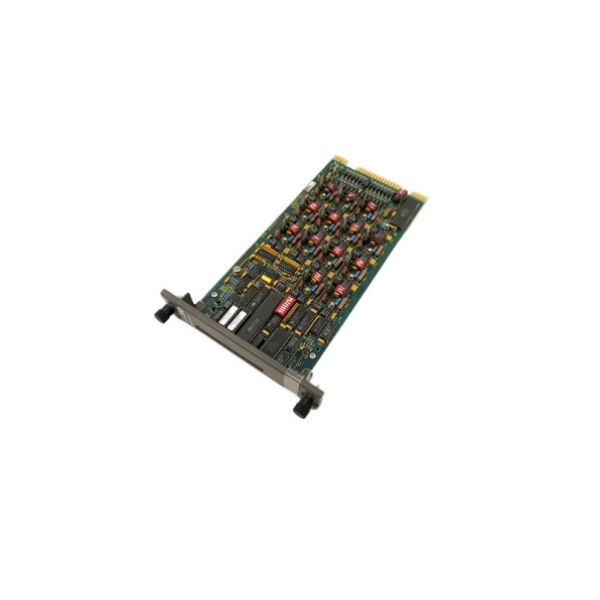

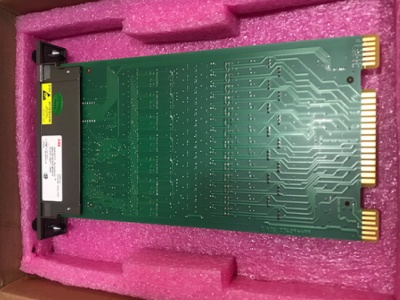

ABB IMAS001 Analog Output Module

The Analog Slave Output Module IMAS001 outputs 14 analog signals from the INFI 90 process control system to process field devices. The Main Module uses these outputs to control the process.

ABB IMAS001 analog output module is a component used in industrial automation systems. This module converts the digital signal of the control system into an analog signal (such as voltage or current, etc.), which can be used to control analog devices such as valves, actuators, motors or other devices that require variable analog control.

Country of Origin: United States

Catalog Description: IMASO01, Analog Output Module, 4-20mA

Alternate Part Numbers: IMASO01, YIMASO01, RIMASO01, PIMASO01, IMASO01R

Common Typographical Errors: IMASOO1, IMASO-01, IMA5001, 1MA5OO1, 1MAS0OI

IMASO01 Analog Output Slave Module, Power Requirements +5, +-15, +24 Vdc 15.8 VA

More Information

The Analog Slave Output module (IMASO01) outputs fourteen

analog signals from the INFI 90 Process Management System to process field devices. Master modules use these outputs to control a process.

This instruction explains the slave module features, specifications and operation. It details the procedures to follow to set up and install an Analog Slave Output (ASO) module. It explains troubleshooting, maintenance and module replacement procedures.

The system engineer or technician using the ASO should read and understand this instruction before installing and operating the slave module. In addition, a complete understanding of the INFI 90 system is beneficial to the user.

This instruction includes updated information that covers changes to the specification of the ASO module.

ABB IMAS001 Analog Output Slave Module provides a high-performance, reliable solution for analog signal output in industrial automation systems. Its high accuracy, multiple signal types and flexible configuration make it an indispensable component in industrial control systems.
