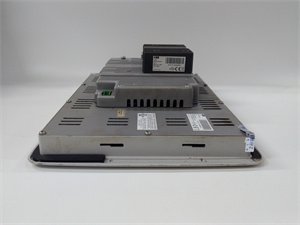

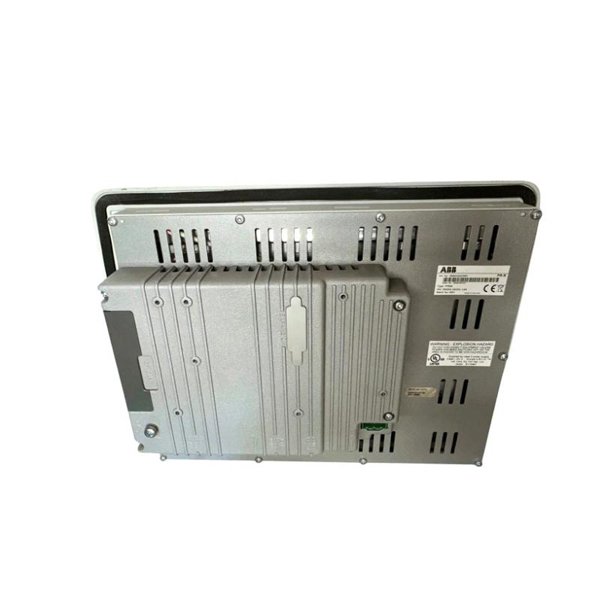

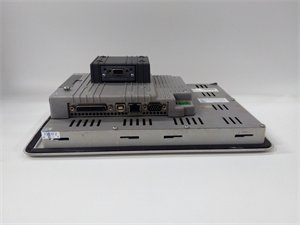

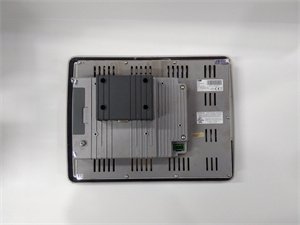

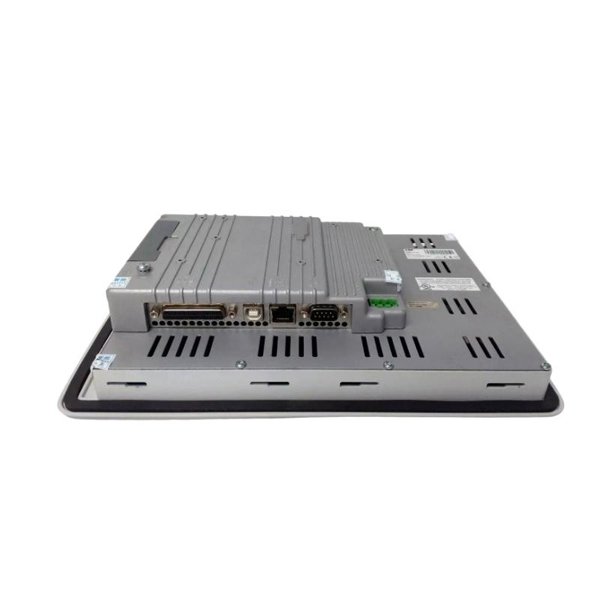

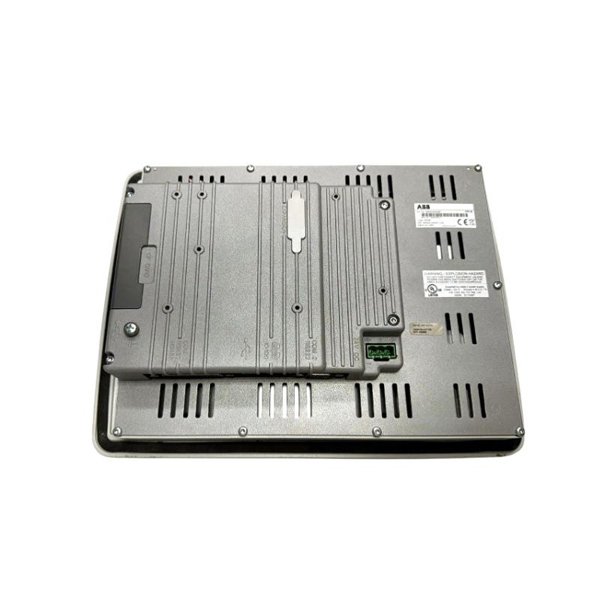

ABB PP845 3BSE042235R1 Operator Panel

The ABB PP845 3BSE042235R1 is an industrial-grade human-machine interface (HMI) operator panel designed for automation systems, part of ABB’s Panel 800 series. Engineered for intuitive control and real-time monitoring, the PP845 3BSE042235R1 features a 10.4-inch TFT-LCD touchscreen, multi-protocol connectivity, and rugged durability for harsh industrial environments. Its core functions include visualization of process data, alarm management, and seamless integration with ABB’s PLC systems (AC500, AC800M), making it ideal for manufacturing, energy, and infrastructure sectors. The panel supports hot-swap module expansion, multi-language interfaces, and advanced diagnostics, ensuring efficient operation in complex industrial setups.

Product Parameters

Advantages and Features

• Rugged Reliability:
  • Operates in -10°C to +50°C with 5G vibration resistance (IEC 60068-2-6), ensuring stability in oil/gas and manufacturing.
  • MTBF of 100,000+ hours (IEC 61709), reducing maintenance costs by 25% compared to legacy panels.
• Intuitive Interaction:
  • Touchscreen + physical buttons for dual-mode operation; supports 256-color graphics and alarm logging.
• Flexible Connectivity:
  • Hot-swap expansion modules (I/O, communication) enable scalable configurations (e.g., 8 digital inputs/outputs).
• Energy Efficiency:
  • Low power consumption (≤12 W) with sleep mode, aligning with sustainability goals.

Case Study: A German automotive plant used PP845 3BSE042235R1 for real-time monitoring of 50+ robotic arms. The panel’s alarm system reduced downtime by 30%, improving production efficiency by 18%.

Application Areas and Case Studies

• Industries: Manufacturing (assembly lines), energy (power plants), water treatment, and transportation.
• Scenarios:
  • Machine status visualization in automotive factories.
  • Alarm management in power plant substations.
• Case Study:

  A North American water treatment facility deployed PP845 3BSE042235R1 for pump control. The panel’s intuitive interface reduced operator error by 40%, optimizing water distribution efficiency.

Selection Recommendations

• Compatibility:
  • Verify PLC compatibility (e.g., ABB AC500 with firmware ≥V4.1).
• Environment:
  • Choose IP65 front panel for dusty/humid environments; use IP20-rated enclosures for indoor setups.
• Scalability:
  • Opt for expansion modules (e.g., I/O cards) for future system upgrades.
• Budget:
  • Balance features (e.g., touchscreen vs. basic display) with cost ($800–$1,500), offering 20% better ROI than non-expandable panels.

Precautions

• Installation:
  • Use shielded cables for communication; torque terminal screws to 0.5–0.7 N·m.
  • Ensure 10 cm clearance for cooling; avoid direct sunlight.
• Maintenance:
  • Clean the screen with an antistatic cloth; replace the backlight every 5 years (part no. 3BSE043447R501).
  • Update firmware quarterly via ABB’s Panel Builder 800.
• Safety:
  • Follow IEC 61131-6 for HMI safety integration; ensure proper grounding (≤0.1 Ω impedance).
