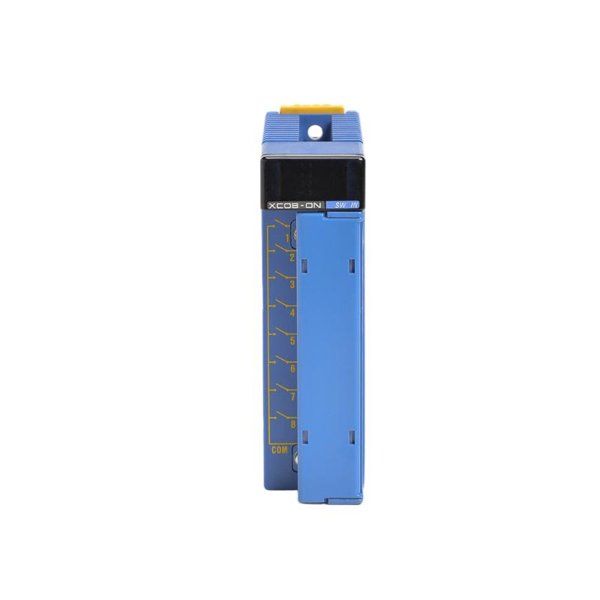

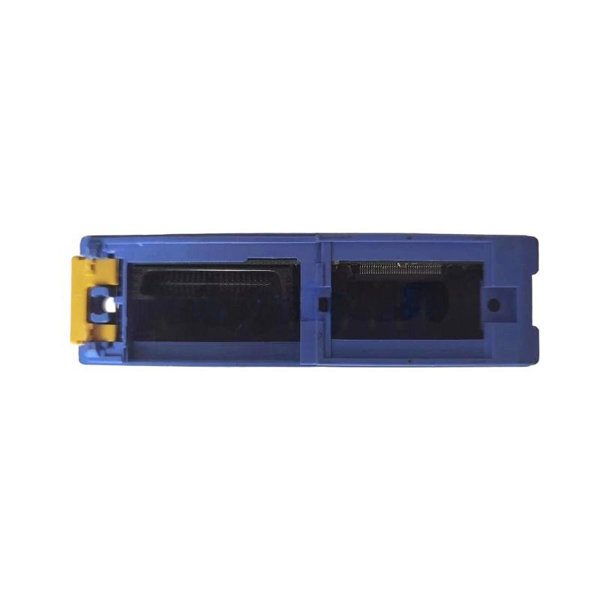

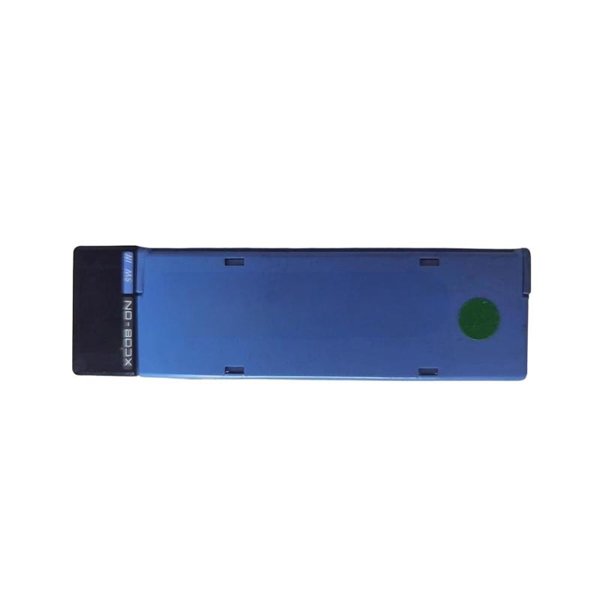

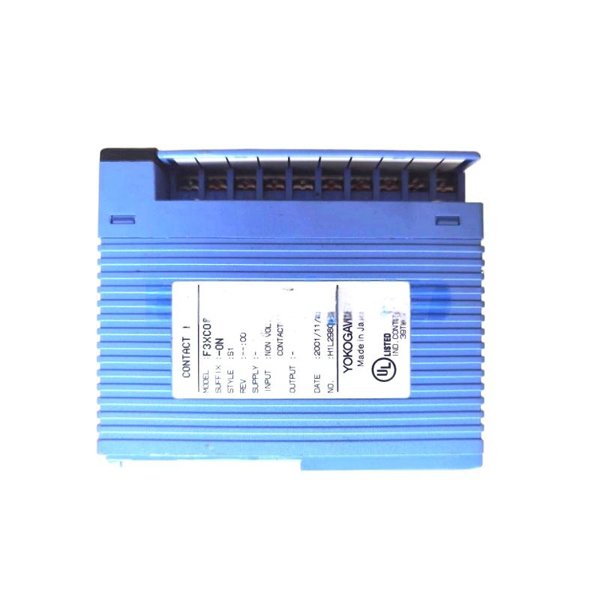

Yokogawa F3XC08-0C Volt-Free Contact Input Module

The Yokogawa F3XC08-0C is a volt-free contact input module from the Yokogawa F3 Series, designed to handle the integration of dry-contact signals into industrial automation systems. This module allows the connection of equipment such as switches, relays, and other dry-contact devices to control systems like Yokogawa Centum VP. It is commonly used to capture external events or states, such as alarm conditions, status changes, or emergency stop triggers.

With its easy integration into automation systems, the F3XC08-0C is crucial in applications where voltage-free signals are needed for input to a system. It provides accurate data to the system, ensuring reliable monitoring and control of various industrial processes.

Product Parameters

Applications

The F3XC08-0C volt-free contact input module is designed for applications where dry contact signals are required. These signals are typically generated by switches, pushbuttons, or relays. Here are some common uses:

• Industrial Automation: Used to monitor status changes or trigger events based on external inputs like safety switches, alarms, and emergency stop signals.

• Emergency Stop Systems: Integrates into emergency stop circuits to immediately halt operations in critical situations.

• Alarm and Safety Systems: Captures signals from alarm systems to inform operators of abnormal conditions or hazardous events.

• Status Monitoring: Monitors the operational state of machinery, such as open/closed signals from mechanical switches.

• Remote Control: Used in remote locations to send status changes or control signals back to central control systems for processing.

Its flexibility to interface with different types of equipment makes it a reliable choice for a wide range of industrial automation systems.

Advantages

1. High Compatibility: The F3XC08-0C is designed to integrate seamlessly with Yokogawa Centum VP and other industrial control systems.

2. Voltage-Free Input: Ideal for systems that use dry contact signals, eliminating the need for external power sources.

3. Compact Design: The module’s 28.9 × 100 × 112.2 mm dimensions make it compact and suitable for systems with limited space.

4. Reliable Signal Handling: The F3XC08-0C ensures accurate and reliable signal acquisition for event detection and system monitoring.

5. Flexible Input Channels: With 8 input channels, it can handle multiple dry-contact devices, improving system flexibility.

6. Versatile Application Range: Suitable for applications in safety systems, emergency stops, and other industrial processes.

7. Wide Operating Temperature Range: Operates reliably within a temperature range of -10°C to +60°C, ideal for use in harsh environments.

8. DIN Rail Mounting: Easy to install using DIN rail mounting, simplifying integration into control panels or industrial racks.

9. Enhanced Communication: Supports Ethernet and Serial communication protocols, enabling smooth data transfer to control systems.

10. Easy Integration: The F3XC08-0C integrates easily with existing automation setups, reducing setup time and improving system efficiency.

FAQ

1. What is a volt-free contact input module?

A volt-free contact input module like the F3XC08-0C is used to monitor devices or signals that do not require an external power source, often connected to switches or relays that operate without voltage.

2. How many input channels does the F3XC08-0C have?

The F3XC08-0C has 8 input channels, allowing it to handle multiple dry contact signals simultaneously.

3. What types of signals can the F3XC08-0C handle?

The module handles dry contact signals or voltage-free inputs, typically from mechanical switches, relays, and other similar devices.

4. How does the F3XC08-0C integrate into an industrial automation system?

It integrates with Yokogawa Centum VP and other systems by capturing dry contact signals from various devices and sending them to the control system for processing.

5. What is the operating temperature range of the F3XC08-0C?

The F3XC08-0C can operate in a temperature range of -10°C to +60°C, making it suitable for a variety of industrial environments.

6. Can the F3XC08-0C be used for emergency stop systems?

Yes, the module is commonly used in emergency stop systems, capturing signals from emergency switches or relays to halt processes in case of an emergency.

7. What are the communication protocols supported by the F3XC08-0C?

The module supports both Ethernet and Serial communication protocols, allowing for easy integration with control systems.

8. How is the F3XC08-0C installed?

The module can be installed using DIN rail mounting, which simplifies its installation in industrial control panels or racks.

9. What types of applications benefit from the F3XC08-0C?

It is widely used in industrial automation, safety systems, alarm monitoring, and status monitoring applications.

10. How does the F3XC08-0C handle external events or alarms?

The module captures external signals from devices such as alarm systems, status switches, or safety relays and sends this data to the automation system for real-time monitoring and action.
