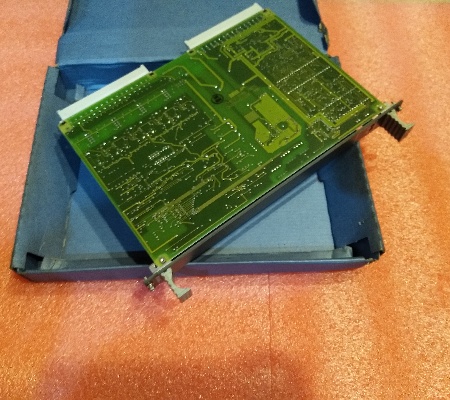

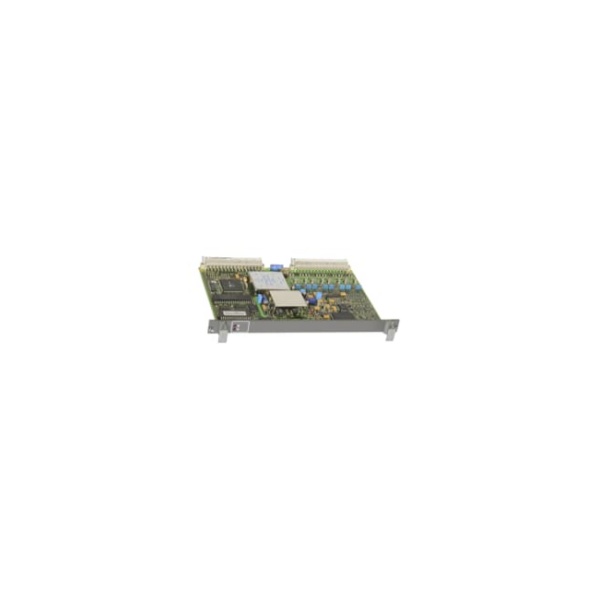

ABB 81AA03 GJR2394100R1210 Output Module Analog

The ABB 81AA03 GJR2394100R1210 output module is an analog output module used in ABB automation systems, AC500 PLC series or other modular control systems.This module is used to provide an analog output signal to control external devices that require variable control, such as valves, motors, or other systems that require a continuous rather than discrete range of output values.

Output Type Analog outputs are typically in the range of 0-10V, 4-20mA, or 0-20mA, allowing for variable control, rather than just the on/off state of a digital output. The module typically provides 8 or 16 analog output channels.

Analog output modules typically specify a certain accuracy, ±0.1% or similar, which defines how closely the output corresponds to the expected value. Resolution may be stated as 12 or 16 bits, which determines how finely the output signal is divided.

0-10V DC For voltage controlled devices

4-20mA For current controlled devices, typically used in industrial instrumentation

This module can be used in systems that require variable control, such as regulating motor speed, controlling valve position, or adjusting temperature settings. It can provide an output for a measurement system, sending a signal to an instrument or actuator.

Frequently asked questions about the product are as follows:

-What is the ABB 81AA03 GJR2394100R1210 output module?

The ABB 81AA03 GJR2394100R1210 is an analog output module used in ABB automation systems. It provides variable analog output signals for control devices that require continuous input. It provides outputs such as 0-10V DC or 4-20mA, which allows for smooth, continuous adjustments, not just on/off control.

-What types of output signals does the ABB 81AA03 GJR2394100R1210 module provide?

The 0-10V DC output is used to control voltage-based devices. The 4-20mA output is used for current-based devices and is often used in industrial control and measurement systems due to its noise immunity and long-distance transmission capabilities.

-How many output channels does the 81AA03 GJR2394100R1210 have?

The 81AA03 module typically provides 8 analog output channels. Each channel can provide a specified analog signal to control the device.
