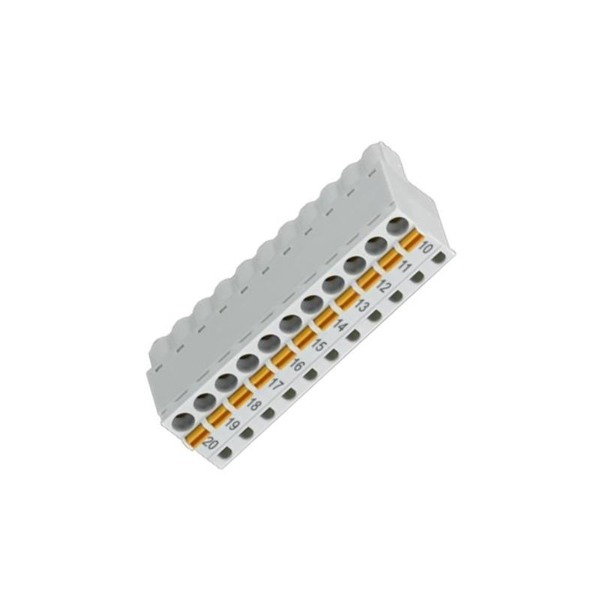

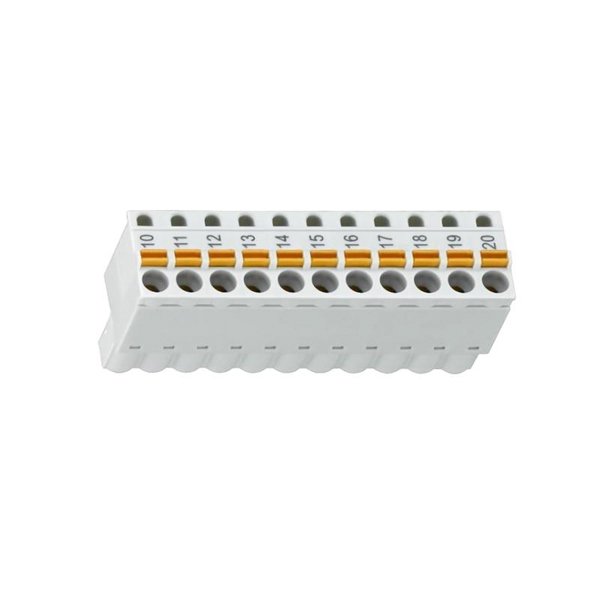

ABB TA565-11 1TNE968901R3106 Terminal Block

The ABB TA565-11 Terminal Block (Part Number: 1TNE968901R3106) is a robust and reliable electrical connector designed for industrial automation, control panels, and power distribution systems. It serves as a secure interface for wiring connections, ensuring stable electrical contact and streamlined wiring management.

This terminal block is engineered to meet rigorous industry standards and withstand harsh environments, making it a trusted component in ABB’s range of electrical connection devices. Its modular design and ease of installation help reduce wiring errors and improve system maintainability.

Product Specifications

Product Applications

The TA565-11 terminal block is commonly used across a wide range of industrial and commercial electrical systems, including:

• Electrical Control Panels – For wiring and organizing complex control circuits.

• Industrial Automation – Connecting sensors, relays, actuators, and controllers in manufacturing systems.

• Power Distribution Systems – Provides safe and organized connection points for low- and medium-voltage circuits.

• Renewable Energy Systems – Used in solar, wind, and other renewable installations for secure wiring.

• Transportation – Suitable for signal and power wiring in rail, marine, and automotive applications.

• Building Automation – Wiring for HVAC, lighting, and safety control systems.

Product Advantages

• High Current Capacity

  Rated for up to 41 A, suitable for demanding industrial loads.

• Wide Wire Compatibility

  Accepts a broad range of wire sizes from 0.5 mm² to 6 mm², accommodating various wiring requirements.

• Durable Construction

  Combines high-quality insulating materials and corrosion-resistant copper contacts to ensure long-term reliability.

• Easy Installation

  Screw clamp connection and DIN rail mounting simplify wiring and replacement.

• Compact Design

  Slim profile enables high-density mounting, optimizing panel space.

• Safety and Compliance

  Meets international standards including IEC 60947-7-1, UL, and RoHS.

Frequently Asked Questions (FAQ)

1. What is the maximum current rating for the TA565-11 terminal block?

   It is rated for up to 41 Amperes per pole.

2. What range of wire sizes does this block support?

   The terminal block supports wire sizes from 0.5 mm² to 6 mm² (AWG 20 to 10).

3. How is the block mounted?

   It is mounted on a standard 35 mm DIN rail for secure installation.

4. What type of connection does it use?

   It features a screw clamp connection for reliable and firm wire fastening.

5. Can this block be used in both AC and DC circuits?

   Yes, it is rated for voltages up to 600 V for both AC and DC applications.

6. What is the operating temperature range?

   It operates safely between -40°C and +105°C.

7. Is it suitable for outdoor use?

   It should be installed within an appropriate enclosure if used outdoors to protect it from environmental factors.

8. How many poles does the TA565-11 have?

   It comes with 11 poles, allowing multiple connections in one unit.

9. Are there accessories available for this terminal block?

   Yes, ABB offers accessories such as jumpers, end covers, and marking tags compatible with this series.

10. What certifications does this terminal block hold?

    It complies with IEC 60947-7-1, UL, CSA, and RoHS standards, ensuring safety and environmental compliance.
