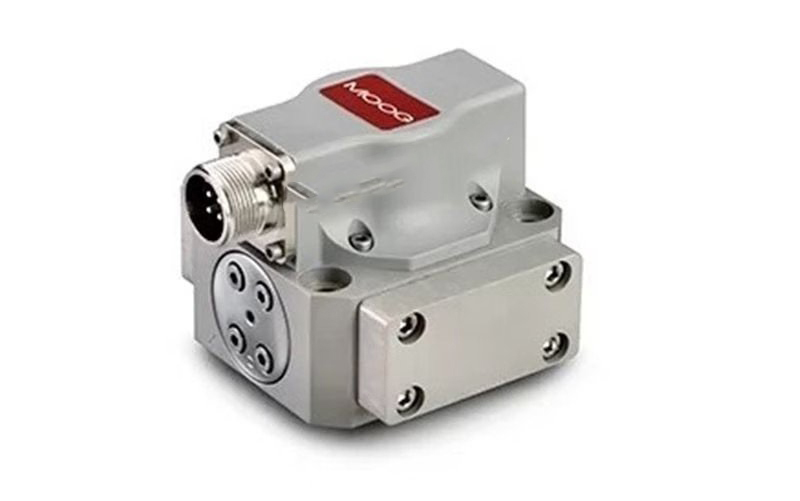

MOOG J761-004A Servo Valve Most Favorable
Manufacturer:MOOG
Product Number:J761-004A
Condition:New & In Stock
Product Type:Servo Valve
Origin:USA
Payment Methods:T/T, Western Union
Unit Price:USD158
Dimensions:150 mm x 100 mm x 54.5 mm
Weight:1.0 kg
Product Description
The MOOG J761-004A is a pilot-operated servo valve from the 761 Series. It delivers precise hydraulic control for industrial applications. It uses a two-stage flow control design, ensuring high performance and reliability. The valve offers durability under demanding conditions and supports fast response times.
Technical Specifications
- Valve Type: Two-stage flow control servo valve
- Flow Rate: 0.5 to 75 l/min (0.125 to 19.5 gpm)
-
Operating Pressure:
- Aluminum body: 315 bar (4,500 psi)
- Steel body: 350 bar (5,000 psi)
- Pilot Stage: Nozzle-flapper torque motor
- Spool Design: Four-land sliding spool for precise control
- Step Response: <4 to <16 ms
- Electrical Signal: 8 to 200 mA (single coil)
- Mounting Size: ISO 10372-04-04-0-92
- Weight: 1.0 kg
-
Max Operating Pressure (Ports P, A, B, X):
- Aluminum body: 315 bar (4,500 psi)
- Steel body: 350 bar (5,000 psi)
- Max Operating Pressure (Port T): 210 bar (3,000 psi)
- Min Operating Pressure: 14 bar (200 psi)
- Hysteresis: ≤3.0%
- Threshold: ≤0.5%
- Null Shift (ΔT=55 K): ≤2.0%
- Flow Sample Deviation: ±10%
- Symmetry: <10%
