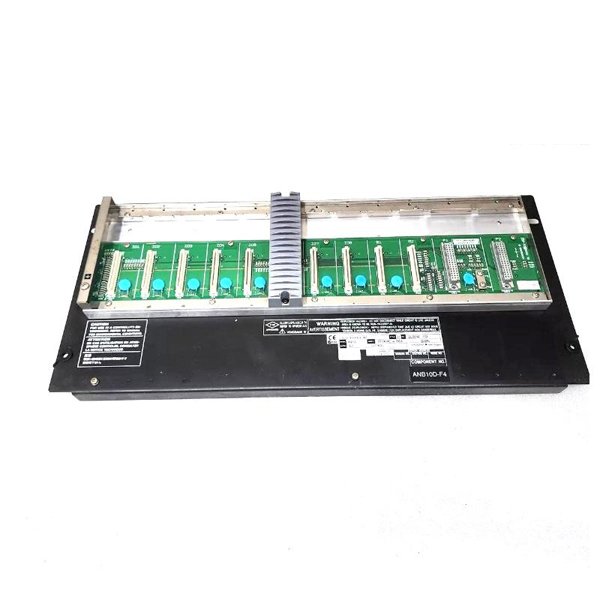

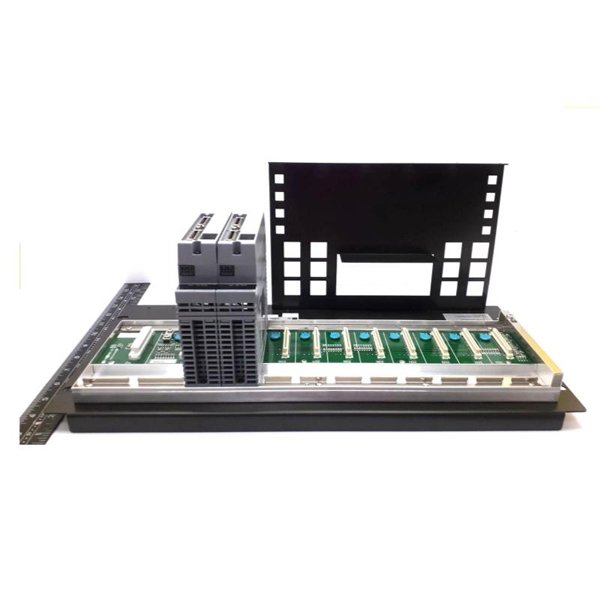

Yokogawa ANB10D-400 ESB Bus Node Unit
Manufacturer:Yokogawa
Product Number:ANB10D-400
Product Type:ESB Bus Node Unit
Origin:Japan
Dimensions:482.6 × 221.5 × 205 mm
Weight:10 kg
Views:36
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa ANB10D-400 ESB Bus Node Unit is a high-performance interface module for industrial automation systems. It connects field I/O modules to the Field Control Unit (FCU) via a dual-redundant ESB bus, enabling reliable and continuous data communication. The unit is designed for demanding environments, ensuring robust operation in distributed control systems such as CENTUM VP and ProSafe-RS.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | ANB10D-400 |
| Type | ESB Bus Node Unit |
| Communication Protocol | Dual-redundant ESB bus |
| Power Supply | 100–120 V AC, 220–240 V AC, 24 V DC |
| Power Consumption | Up to 230 VA or 5.5 A depending on voltage |
| Number of I/O Modules Supported | Up to 8 |
| Dimensions | 482.6 × 221.5 × 205 mm |
| Weight | 10 kg |
| Mounting | 19-inch rack mount (M5 screws) |
| Operating Temperature | -20°C to +60°C |
Applications
The ANB10D-400 is widely used in:
-
Distributed control systems in industrial plants
-
Critical process monitoring and automation
-
Safety instrumented systems requiring high reliability
-
Power generation, chemical, and petrochemical facilities
Advantages
-
Supports dual-redundant ESB bus for uninterrupted operation
-
Supplies power to connected I/O modules, reducing external power needs
-
Compact design with easy 19-inch rack mounting
-
High compatibility with CENTUM VP and ProSafe-RS systems
-
Robust operation in harsh industrial environments
FAQ
1. What is the main function of the ANB10D-400?
It serves as a bus node unit, linking field I/O modules to the FCU over the ESB bus.
2. How many I/O modules can it support?
It can support up to 8 I/O modules simultaneously.
3. Which power supplies are compatible with this unit?
100–120 V AC, 220–240 V AC, or 24 V DC.
4. Can it be used in safety instrumented systems?
Yes, it is compatible with ProSafe-RS and other safety-critical applications.
5. What is the operating temperature range?
-20°C to +60°C.
6. How does it ensure redundancy?
Through a dual-redundant ESB bus, providing continuous operation even if one bus fails.
7. What are the physical dimensions of the unit?
482.6 × 221.5 × 205 mm.
8. What is the weight of the unit?
10 kg.
9. How is it mounted?
Using a 19-inch rack mount with M5 screws.
10. Which control systems is it compatible with?
It is compatible with Yokogawa CENTUM VP and ProSafe-RS systems.
