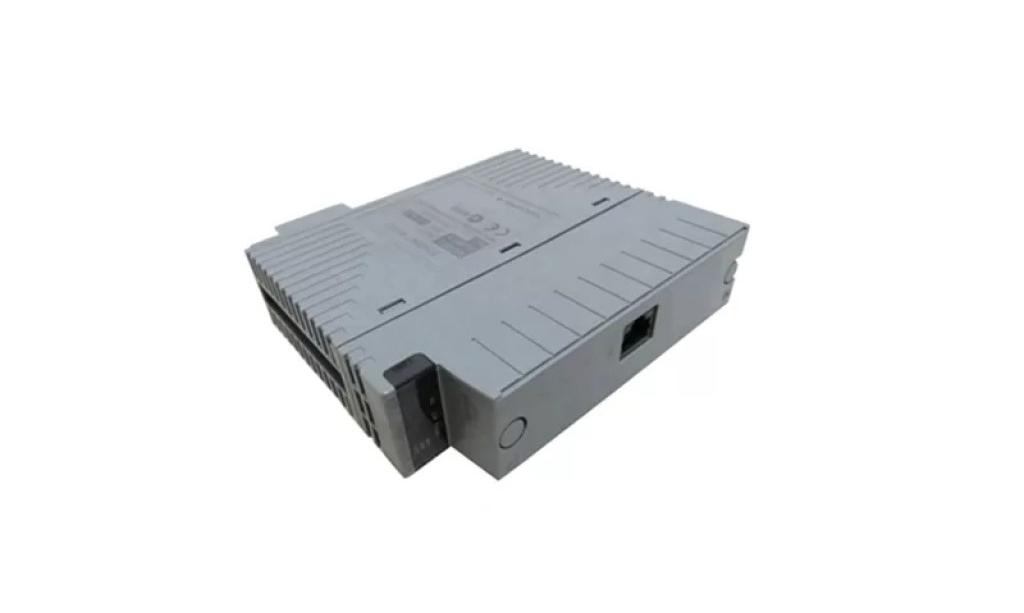

Yokogawa ADV151-E60 Digital Input Module

Yokogawa ADV151-E60 is a 32-channel digital input module for use with the FIO (Fieldbus Independent I/O) system. It is a basic type module with no explosion protection and has the following technical specifications:

• Number of input channels: 32
• Rated input voltage: 24 V DC (sink/source)
• Input ON voltage: 18 to 26.4 V DC
• Input OFF voltage: 5.0 V DC or less
• Input current (at rated input voltage): 4.1 mA±20 % / channel
• Maximum allowable input voltage: 30.0 V DC

Withstanding voltage

• Between input signal and system: 2 kV AC, For 1 minute
• Between commons: 500 V AC, For 1 minute, common every 16-channel

Functions

• Status input
• Pushbutton input
• Input response time: 8 ms or less (for status input)
• Minimum ON detection time: 20 ms (for pushbutton input)
• Maximum ON/OFF cycle: 25 Hz (for pushbutton input)
• Maximum current consumption: 500 mA (5 V DC)
• Weight: 0.3 kg
• External connection: Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable
