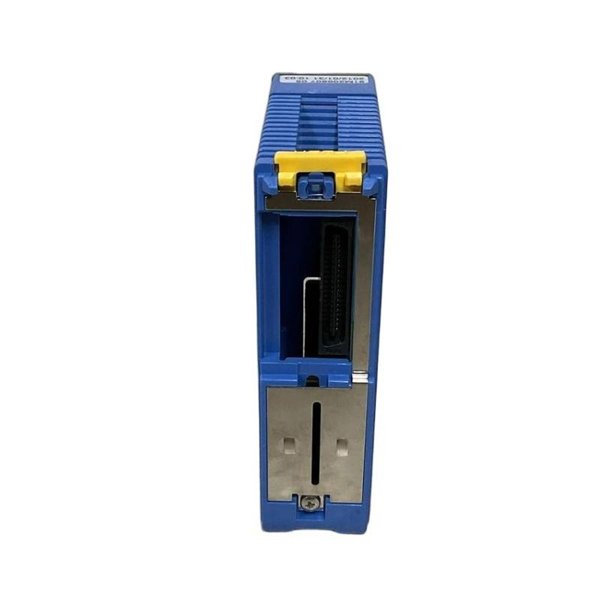

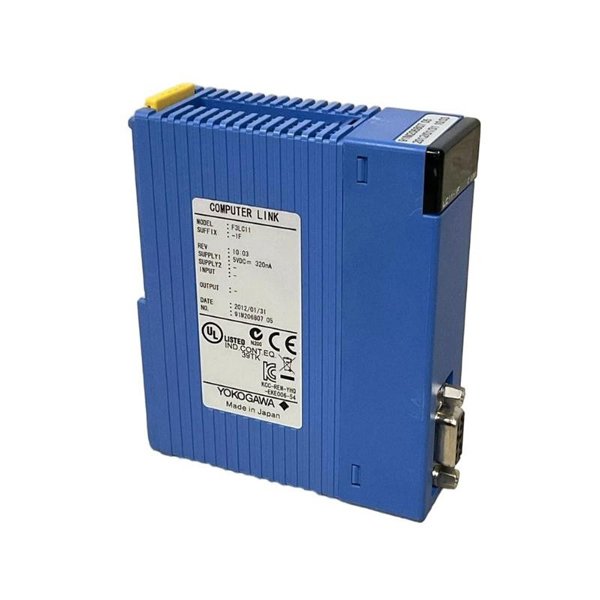

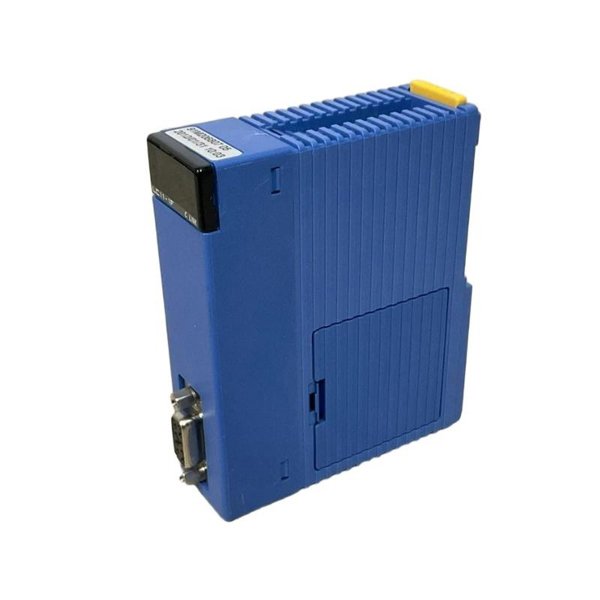

Yokogawa F3LC11-1F PC Link Module

The Yokogawa F3LC11-1F PC Link Module is a communication interface designed to link PC systems with Yokogawa F3 series controllers. It provides a reliable connection for monitoring, configuration, and data exchange between a PC and field control units. The module ensures stable and secure data communication, enabling engineers to efficiently program, monitor, and troubleshoot the control system from a PC workstation. Its compact and robust design is suitable for industrial environments, ensuring consistent operation under demanding conditions.

Key Features

• Provides seamless PC-to-controller communication for F3 series systems

• Supports real-time monitoring and configuration from a PC

• Reliable and secure data transmission

• Simplifies system troubleshooting and maintenance

• Compact design suitable for DIN rail or rack mounting

• Compatible with a wide range of Yokogawa F3 controllers

• Status LEDs for easy diagnostics and operation monitoring

Technical Specifications

Industry Applications

• Oil & Gas: PC-based configuration and monitoring of controllers

• Power Generation: System setup, data acquisition, and diagnostics

• Chemical & Petrochemical: Efficient programming and maintenance of controllers

• Water & Wastewater: Remote monitoring and troubleshooting of field devices

• Food & Beverage: PC-based control system management

• Pulp & Paper: Maintenance, monitoring, and data logging from PC systems

Frequently Asked Questions (FAQ)

Q1: What is the main function of the F3LC11-1F module?

It enables reliable communication between a PC and Yokogawa F3 series controllers for monitoring, configuration, and data exchange.

Q2: What systems is it compatible with?

It is compatible with Yokogawa F3 series controllers.

Q3: What is the operating temperature range?

0°C to 55°C.

Q4: What are the module dimensions?

28.9 mm x 100 mm x 83.2 mm.

Q5: How much does the module weigh?

Approximately 0.11 kg.

Q6: Does it support DIN rail mounting?

Yes, it can be mounted on DIN rails or racks for flexible installation.

Q7: What indicators are included?

Power, status, and communication LEDs for monitoring and diagnostics.

Q8: Is it suitable for industrial environments?

Yes, it is designed for reliable operation under industrial conditions.

Q9: Can it facilitate system troubleshooting?

Yes, it allows engineers to diagnose and troubleshoot controllers from a PC.

Q10: Does it support real-time data monitoring?

Yes, it enables real-time monitoring and control from connected PC systems.
