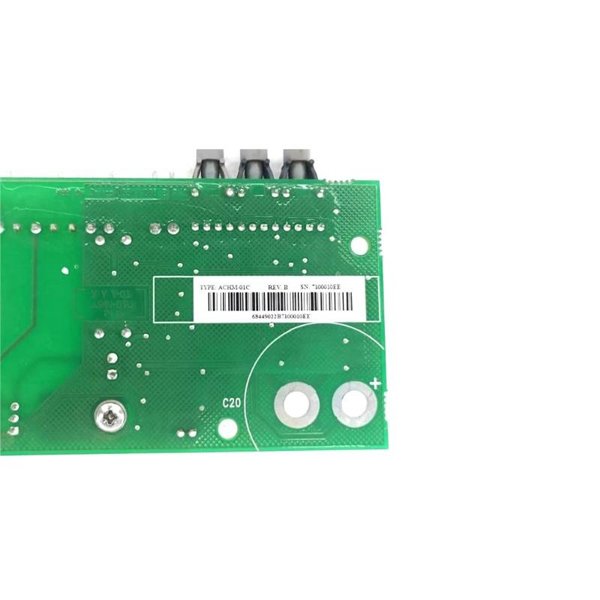

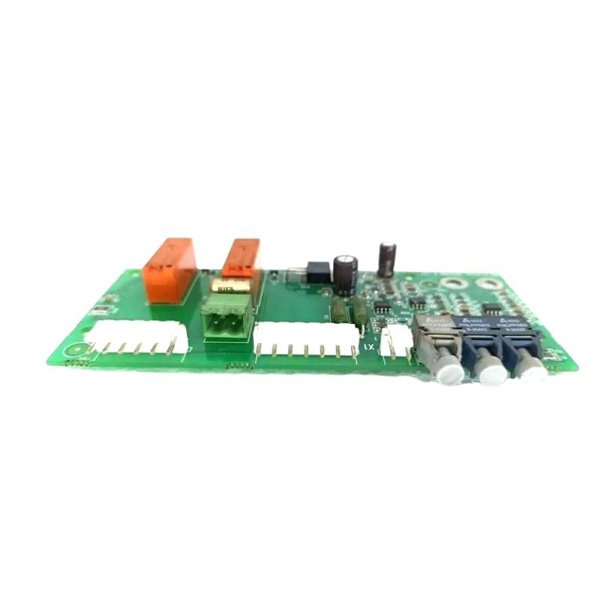

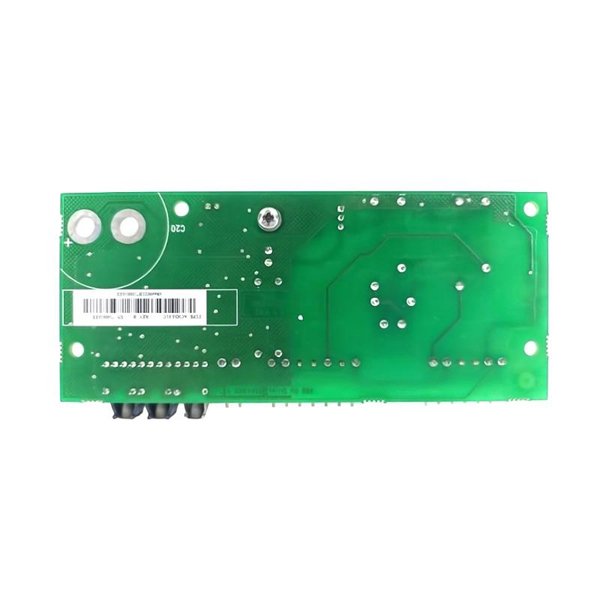

ABB ACHM-01C 68449022 Charge Controller

The ABB ACHM-01C Charge Controller is an advanced solution designed for managing the charging and discharging of batteries in renewable energy systems, particularly solar power applications. This charge controller is engineered to ensure optimal battery performance, enhance the lifespan of energy storage systems, and provide energy-efficient solutions for industrial and commercial setups. Its robust design makes it suitable for use in harsh environments, providing reliable, automated control over the charging process.

The ACHM-01C is equipped with intelligent control mechanisms that allow for precise regulation of charging currents, ensuring that batteries are charged at the correct voltage levels. The unit’s compact size, combined with its advanced features, makes it a versatile choice for both small and large-scale energy storage systems.

With ABB’s reputation for high-quality engineering, the ACHM-01C Charge Controller stands out as a reliable component in any renewable energy infrastructure, improving the overall efficiency and sustainability of energy storage systems.

Product Parameters

The following table outlines the key specifications of the ABB ACHM-01C Charge Controller:

Product Applications

The ABB ACHM-01C Charge Controller is designed for a variety of applications where efficient battery charging and power management are essential. Key areas of use include:

1. Solar Power Systems: The charge controller is ideal for off-grid and grid-tied solar power systems, managing the energy flow between solar panels and batteries while optimizing battery health and energy storage.

2. Renewable Energy Storage: It is highly effective in systems where battery storage is crucial, including wind and hybrid renewable systems, ensuring that batteries are charged efficiently and safely.

3. Electric Vehicles: In electric vehicle charging stations, the ACHM-01C ensures that batteries are charged properly, extending the life of the vehicle’s battery pack.

4. Backup Power Systems: It is used in uninterruptible power supplies (UPS) systems, ensuring that backup batteries are charged correctly and ready to supply power when needed.

5. Telecommunication Sites: For remote telecommunications, where battery-powered systems are critical, the ACHM-01C charge controller helps maintain optimal battery voltage and charge levels.

6. Industrial and Commercial Energy Systems: The ACHM-01C is also used in various industrial applications for managing energy storage and optimizing the performance of energy systems.

Product Advantages

1. High Efficiency: With an efficiency rate of 95% or higher, the ACHM-01C ensures minimal energy loss during the charging process, making it an energy-efficient solution for battery management.

2. Wide Voltage Range: The ACHM-01C supports input voltages ranging from 10V to 50V, providing flexibility for use in various energy systems and battery configurations.

3. Advanced Protection: The unit features multiple safety protections, including overcharge, overvoltage, and short-circuit protection, safeguarding the battery and system components from damage.

4. Durability: Designed to operate in temperatures ranging from -20°C to +60°C, the ACHM-01C can withstand harsh environmental conditions, ensuring reliable performance in outdoor and industrial settings.

5. Compact Design: Despite its advanced features, the ACHM-01C is compact and easy to install, fitting into smaller spaces while delivering high performance.

6. Long Battery Life: By maintaining the correct charge levels and preventing overcharging, the ACHM-01C helps extend the life of batteries, reducing the need for frequent replacements.

7. Modbus Communication: The ACHM-01C includes Modbus RTU communication capabilities via RS-485, enabling integration with larger energy management systems for real-time monitoring and control.

8. Easy Installation: The charge controller is user-friendly and designed for quick and easy installation, reducing downtime and simplifying the setup process.

FAQ

1. What type of batteries is the ABB ACHM-01C Charge Controller compatible with?

   • The ACHM-01C is compatible with most lead-acid and lithium-ion batteries commonly used in solar power and renewable energy storage systems.

2. What is the maximum current the ACHM-01C can charge the batteries with?

   • The ACHM-01C can deliver a maximum charging current of 20A, suitable for a wide range of battery sizes.

3. Can the ABB ACHM-01C be used for both off-grid and grid-tied solar systems?

   • Yes, the ACHM-01C is versatile enough for both off-grid and grid-tied solar applications.

4. What communication protocols does the ACHM-01C support?

   • The ACHM-01C supports Modbus RTU over RS-485, allowing it to communicate with other energy management systems.

5. How can I monitor the charging process with the ACHM-01C?

   • The ACHM-01C can be integrated into a larger system with real-time monitoring capabilities via Modbus RTU communication.

6. What is the operating temperature range for the ABB ACHM-01C?

   • The ACHM-01C operates in a temperature range of -20°C to +60°C.

7. Does the ACHM-01C include any protection features for the battery?

   • Yes, the ACHM-01C includes overcharge, overvoltage, overcurrent, and short-circuit protections to safeguard the battery and system components.

8. What is the weight of the ABB ACHM-01C Charge Controller?

   • The ACHM-01C weighs 0.1 kg, making it lightweight and easy to install.

9. Can the ACHM-01C be used in electric vehicle charging stations?

   • Yes, the ACHM-01C is suitable for use in electric vehicle charging stations, ensuring efficient and safe battery charging.

10. What is the efficiency of the ABB ACHM-01C Charge Controller?

    • The ACHM-01C boasts an efficiency rate of 95% or higher, ensuring minimal energy loss during the charging process.
