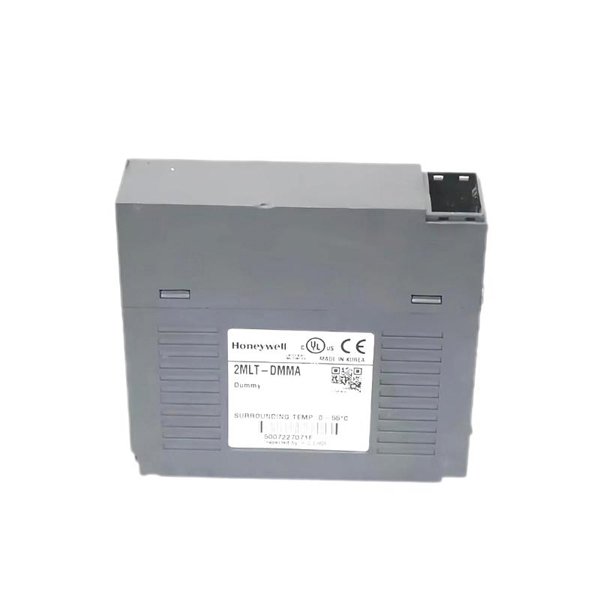

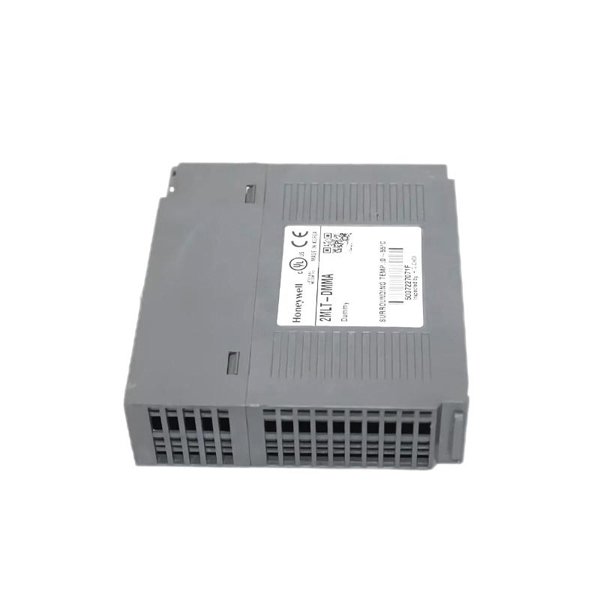

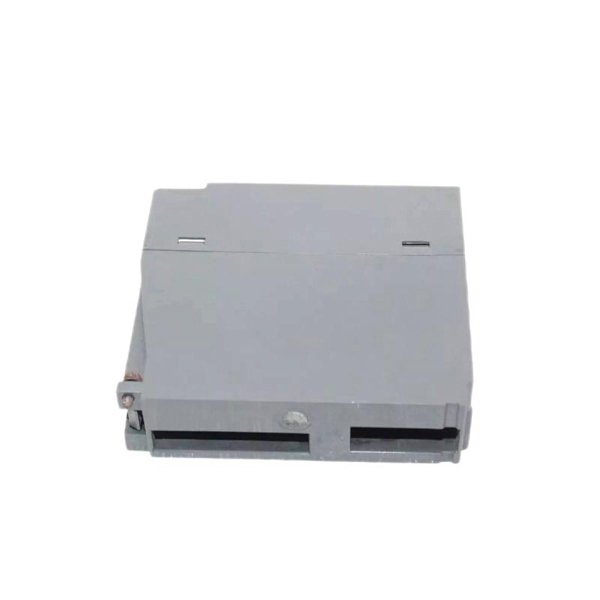

Honeywell 2MLT-DMMA Dummy Module

The Honeywell 2MLT-DMMA Dummy Module is a specialized component designed for use in Honeywell’s 2000 Series control systems. This module is primarily used for testing, simulation, and maintenance purposes in control systems where no active I/O signals are required. The Dummy Module allows users to simulate the presence of an I/O module within a system while keeping the control loop operational during maintenance, system upgrades, or troubleshooting processes.

By using the 2MLT-DMMA, engineers and technicians can maintain system integrity while conducting non-intrusive tests, reducing the risk of errors during maintenance activities. The Honeywell 2MLT-DMMA provides a cost-effective solution for ensuring that a control system can continue to function normally without requiring immediate replacement of missing or damaged modules.

This module also serves as a placeholder, allowing for easy replacement of faulty I/O modules without disrupting the entire control system’s operation. It is widely used in industries like manufacturing, chemical processing, power generation, and HVAC, where system uptime is critical.

Product Specifications

Product Applications

The Honeywell 2MLT-DMMA Dummy Module is primarily used in environments where maintaining control system integrity during testing or maintenance is essential. Its key applications include:

1. Testing and Simulation: When setting up or upgrading a control system, the 2MLT-DMMA can simulate the presence of a real I/O module, allowing for full system testing without requiring all active components.

2. Maintenance and Troubleshooting: The module can be used to maintain system operation during the maintenance of faulty or non-functional modules, ensuring that the system continues to work normally without full downtime.

3. System Expansion: In systems where additional I/O modules need to be added, the 2MLT-DMMA can be temporarily inserted to maintain proper configuration before installing actual I/O modules.

4. Calibration and Adjustment: Used during calibration processes, the 2MLT-DMMA allows operators to run system checks and adjustments without impacting the overall control system.

5. Educational and Training Systems: Ideal for use in training and educational settings where systems need to be configured and tested with placeholders.

Product Advantages

1. Minimized Downtime: The 2MLT-DMMA ensures that the control system continues to operate even during module maintenance, significantly reducing downtime and maintaining system integrity.

2. Cost-Effective Solution: Rather than replacing faulty I/O modules immediately, the Dummy Module acts as a temporary placeholder, reducing the need for expensive and time-consuming replacements.

3. Ease of Use: It is simple to install with its DIN rail mounting design, making it easy for technicians to swap out faulty modules without major disruption to operations.

4. Non-Intrusive Testing: Allows for testing and troubleshooting without affecting active processes, enabling safe and accurate diagnostics in live systems.

5. Wide Compatibility: The module is compatible with a wide range of Honeywell control systems, ensuring broad usability across different industrial applications.

6. Reduced Risk of Operational Interruptions: Keeps critical systems running smoothly even when certain modules are temporarily unavailable, ensuring continuous operation of industrial processes.

7. Enhanced Flexibility: The Dummy Module can be used in various stages of system development, from installation to final operational testing, offering great flexibility in different scenarios.

8. Durability and Reliability: Designed for industrial environments, the 2MLT-DMMA is built to withstand tough conditions and deliver reliable performance over extended periods.

9. Ideal for Complex Systems: Perfect for large-scale or complex control systems, where the absence of a module could potentially cause operational delays or malfunctions.

10. Safety Compliance: Meets safety certifications like CE, UL, and CSA, ensuring that it is safe to use in critical industrial settings.

Frequently Asked Questions (FAQ)

1. What is the purpose of the Honeywell 2MLT-DMMA Dummy Module?

   The 2MLT-DMMA is designed to act as a temporary placeholder in Honeywell control systems, allowing for continued system operation during maintenance or testing of I/O modules.

2. Can the 2MLT-DMMA module be used in any industrial control system?

   It is specifically designed for Honeywell’s 2000 Series control systems and may not be compatible with other brands or series.

3. Does the Dummy Module require power to function?

   Yes, the 2MLT-DMMA requires a 24 VDC power supply for operation, although it does not process any I/O data.

4. How does the 2MLT-DMMA help during system maintenance?

   It maintains system functionality while faulty modules are being replaced, minimizing system downtime during maintenance activities.

5. Is the 2MLT-DMMA module used in active processes?

   No, it does not participate in active input/output operations; it is strictly used to maintain system integrity during downtime.

6. What certifications does the Honeywell 2MLT-DMMA have?

   The 2MLT-DMMA has CE, UL, and CSA certifications, ensuring it meets industry standards for safety and quality.

7. How does the 2MLT-DMMA module help in troubleshooting?

   It allows testing and diagnostics in live systems, making it easier to identify issues without shutting down or interrupting operations.

8. Can the 2MLT-DMMA be used for system expansion?

   Yes, it can be used temporarily to fill vacant slots during system expansion until actual I/O modules are installed.

9. What is the weight of the Honeywell 2MLT-DMMA Dummy Module?

   The module weighs 0.049 kg, making it easy to handle and install.

10. What is the operating temperature range of the 2MLT-DMMA?

    It operates in temperatures ranging from -10°C to +60°C, suitable for most industrial environments.
