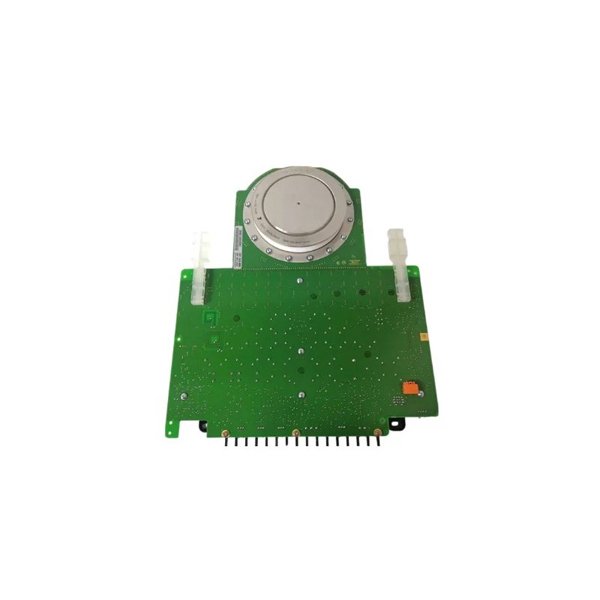

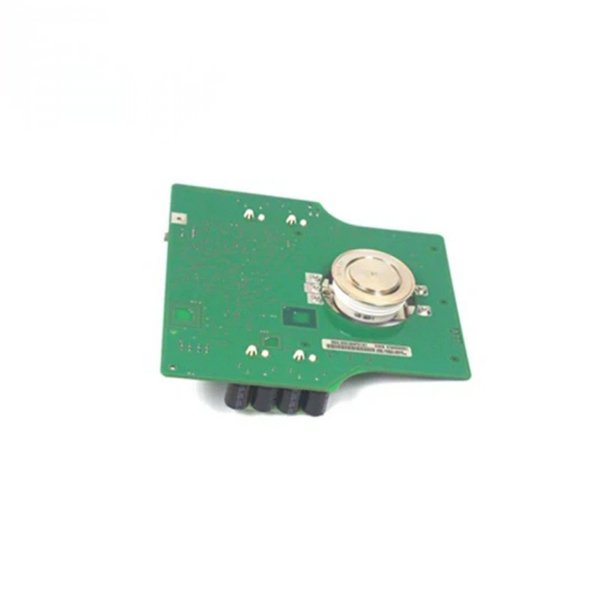

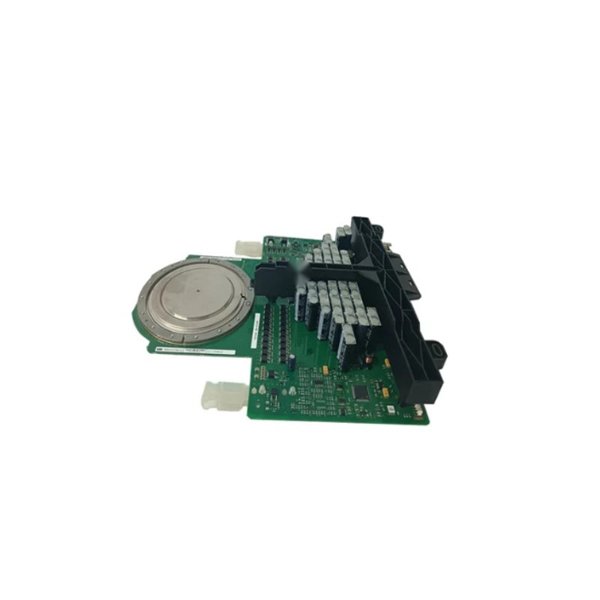

ABB 5SHX2645L0002 3BHB012961R0002 IGCT Module
Manufacturer:ABB
Product Number:5SHX2645L0002 3BHB012961R0002
Product Type:IGCT Module
Origin:Sweden (SE)
Dimensions:120 x 26 x 120 mm
Weight:1.32 kg
Views:75
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB 5SHX2645L0002 3BHB012961R0002 is a high-power IGCT (Integrated Gate-Commutated Thyristor) module designed for industrial power electronics applications. It ensures fast switching, high efficiency, and reliability in demanding converter systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 5SHX2645L0002 |
| ABB Order Code | 3BHB012961R0002 |
| Device Type | IGCT Module |
| Voltage Rating | 4500 V |
| Current Rating | 4000 A |
| Frequency Range | Up to 500 Hz |
| Switching Technology | Integrated Gate-Commutated Thyristor |
| Cooling Method | Air or Liquid Cooled |
| Application Category | Industrial High-Power Converters |
| Dimensions (L x W x H) | 120 x 26 x 120 mm |
| Weight | 1.32 kg |
Product Applications
-
Medium-voltage drives
-
Traction systems
-
Static VAR compensators
-
High-voltage DC converters
-
Renewable energy inverters (wind/solar)
-
Industrial motor control systems
Product Advantages
-
High current and voltage capacity
-
Excellent thermal performance
-
Integrated gate unit for simplified control
-
Low conduction and switching losses
-
Robust structure with long service life
-
Suitable for compact converter designs
Frequently Asked Questions (FAQ)
Q1: What is the main function of this IGCT module?
A1: It acts as a high-speed switch in medium to high voltage power conversion systems.
Q2: Can this module handle regenerative energy applications?
A2: Yes, it’s suitable for regenerative drive systems and converters.
Q3: What cooling methods are supported?
A3: It supports both air and liquid cooling depending on installation requirements.
Q4: What type of control signal does the gate require?
A4: It uses integrated gate commutation with isolated driver circuits.
Q5: Is the module suitable for parallel connection?
A5: Yes, modules can be paralleled for higher current capacity.
Q6: What is the typical service life?
A6: With proper cooling and load management, it can last over 20 years.
Q7: Can it be used in offshore or marine environments?
A7: Yes, with proper environmental protection and sealing.
Q8: Is it compatible with ABB drive systems?
A8: Yes, it is designed for full compatibility with ABB converters and drives.
Q9: What standards does it comply with?
A9: Complies with IEC and UL standards for industrial semiconductors.
Q10: What protections are built into the module?
A10: Includes overvoltage, overcurrent, and thermal protection.
