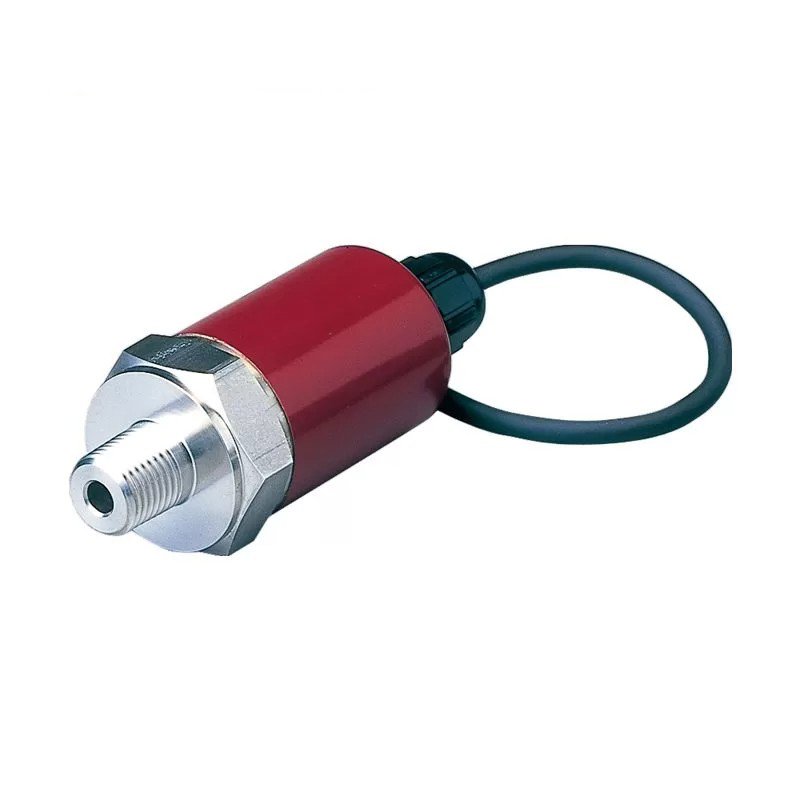

The Yokogawa FP101-C32-L20A*B sensor precisely measures pressure from 0 to 1 MPa. It ensures reliable performance across various industrial applications.

Technical Specifications

• Measurement Range: 0 to 1 MPa
• Output Signal: Choose between 4-20 mA or 0-10 V, depending on the model
• Accuracy: ±0.5% of full scale
• Response Time: Less than or equal to 1 second
• Temperature Range: Operates between -10 and +60°C
• Pressure Connection: Features G1/4 connection or as specified
• Material: Constructed from stainless steel for durability
• Electrical Connection: Includes M12 connector or terminal block
• Power Supply: Requires 24 VDC ±10%
• Protection Class: IP65 for dust and water resistance
• Compliance: Meets CE and RoHS standards
