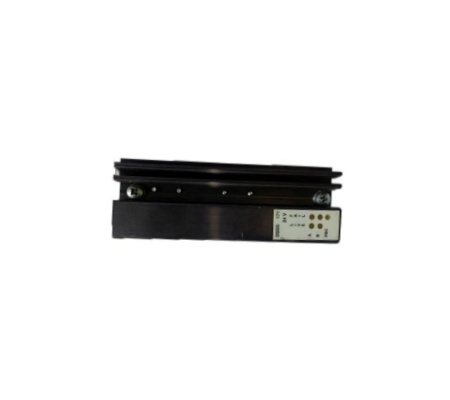

ABB DSSS 171 3BSE005003R1 Voting Unit

The ABB DSSS 171 3BSE005003R1 Voting Unit is a component used in ABB safety and control systems. The DSSS 171 unit is part of ABB's Safety Instrumented System (SIS) for critical processes in industrial automation that require high reliability and safety standards.

The voting unit performs logical operations to determine which signals from redundant or multiple inputs are correct. The unit ensures that the system makes the correct decision based on a majority or voting mechanism, ensuring that the system continues to operate even if one of the redundant channels fails.

The DSSS 171 voting unit may be part of a system designed to ensure accurate handling of safety-related processes such as emergency shutdowns, monitoring hazardous conditions, etc. It will evaluate the health of redundant sensors or control systems to ensure that erroneous outputs do not occur.

The voting unit is part of a highly redundant configuration that ensures that the SIS operates with safety integrity, even in the event of a single component failure or malfunction. The use of multiple channels and voting helps the system avoid hazardous states or erroneous operation.

Refineries, chemical plants and other process industries where safe and continuous operation is critical. Can be used to ensure reliable performance and safe shutdown in hazardous conditions. As part of a larger control system, ensures that the system can operate normally even in the event of a fault.

It is part of ABB IndustrialIT or 800xA system, depending on your specific setup, and can interact with other parts of the ABB safety system.

Frequently asked questions about the product are as follows:

-What is the ABB DSSS 171 voting unit used for?

The ABB DSSS 171 voting unit is part of the ABB Safety Instrumented System (SIS). It is mainly used in industrial automation to perform voting logic operations in redundant safety systems. The voting unit ensures that the correct decision is made when there are multiple inputs, such as from sensors or safety controllers. It helps improve the fault tolerance of the system by using a voting mechanism to determine the correct output even if one or more inputs are faulty.

-What does "voting" mean here?

In the DSSS 171 voting unit, "voting" refers to the process of evaluating multiple redundant inputs and selecting the correct output based on the majority rule. If three sensors are measuring a critical process variable, the voting unit may take the majority input and discard the erroneous reading of the faulty sensor.

-What types of systems use the DSSS 171 voting unit?

The DSSS 171 voting unit is used in safety instrumented systems (SIS) especially in industries that require high safety standards. It ensures that the system continues to operate safely even if a sensor or redundant input channel fails.
