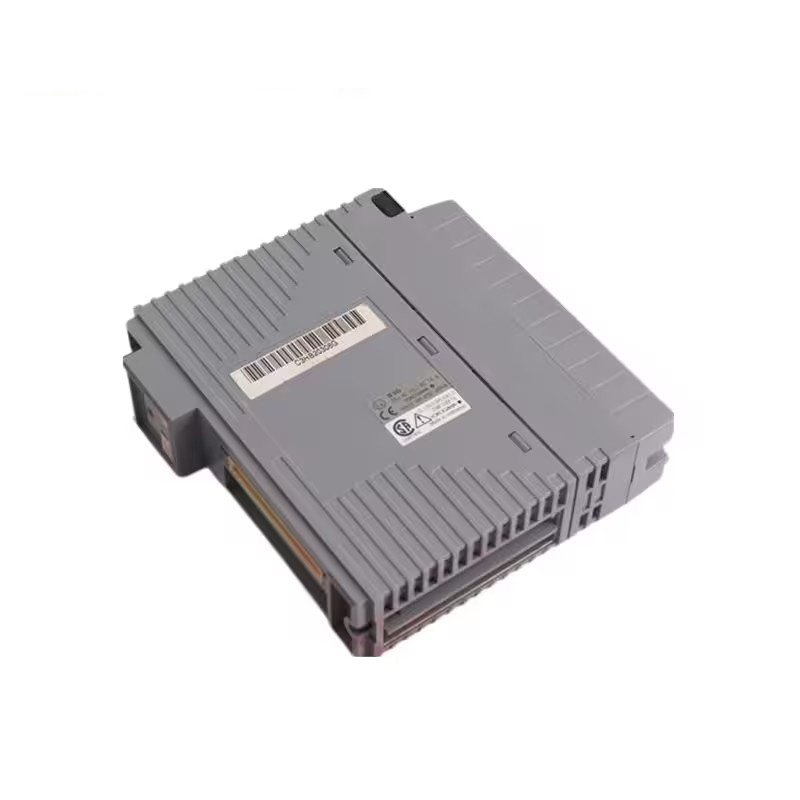

The Yokogawa AAI543 Analog Output Module is a high-performance device designed for industrial control systems. It offers 16 channels of 4-20mA analog output, making it suitable for applications requiring precise control and data transmission. This module provides high reliability, compact design, and integration with HART-enabled field devices, ensuring optimal performance in various industrial settings.

Technical Specifications

• Input Signal: 4 to 20 mA
• Withstanding Voltage: 1500 V AC between output and system for 1 minute
• Allowable Load Resistance: 0 to 750 Ω
• Circuit-Open Detection: Less than 0.65 mA
• Accuracy: ±48 µA
• Data Update Period: 10 ms
• Drift Due to Ambient Temperature Change: ±16 µA/10°C
• Maximum Current Consumption:
  • 230 mA (5 V DC)
  • 540 mA (24 V DC)
