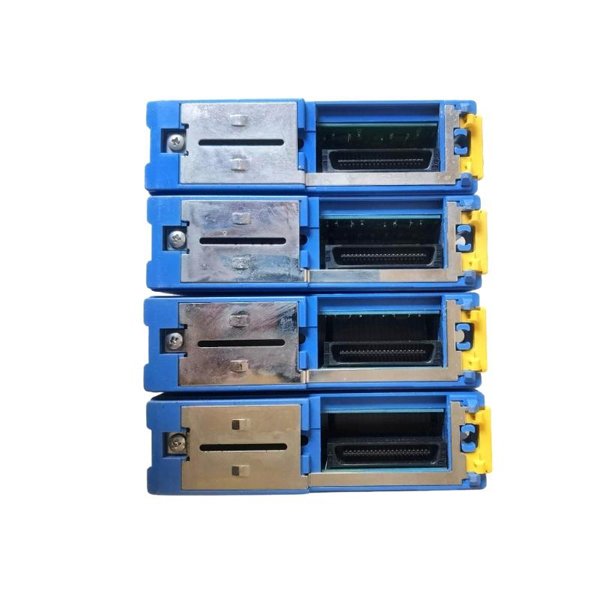

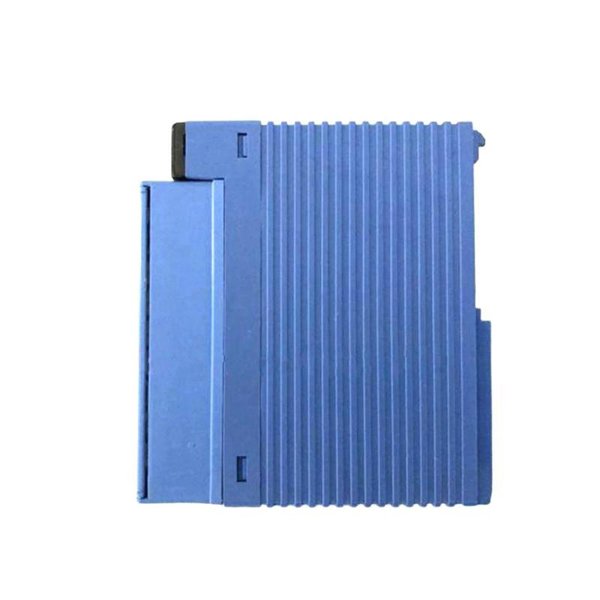

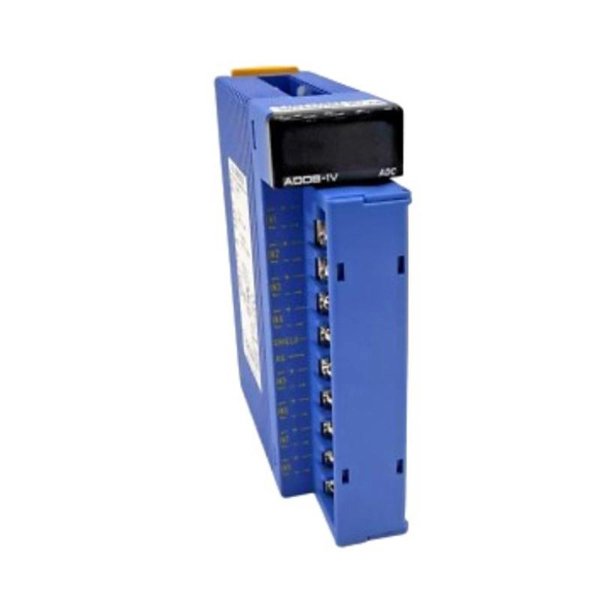

Yokogawa F3AD08-4V Analog Input Module
Manufacturer:Yokogawa
Product Number:F3AD08-4V
Product Type:Analog Input Module
Origin:Japan
Dimensions:28.9 × 100 × 83.2 mm
Weight:0.2 kg
Views:41
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The F3AD08-4V is an 8-channel analog input module for the Yokogawa FA-M3 series. It converts voltage and current signals into high-resolution digital data, enabling precise monitoring and control in industrial automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 8 differential |
| Input Signal Types |
Voltage: 0–5V DC, 1–5V DC, 0–10V DC, -10–10V DC Current: 0–20mA DC, 4–20mA DC |
| Input Impedance |
Voltage: 1 MΩ Current: 250 Ω |
| Resolution | 16-bit A/D conversion |
| Operating Temperature | -10°C to 55°C |
| Power Supply | 24V DC |
| Dimensions | 28.9 × 100 × 83.2 mm |
| Weight | 0.2 kg |
| Signal Processing | Scaling, filtering |
| Data Handling | Organized data positions for inputs and operation modes |
Applications
-
Industrial process automation
-
Data acquisition from sensors
-
Integration with FA-M3 PLC systems
-
Real-time monitoring and logging
-
Control system signal input
Advantages
-
High input impedance for minimal signal loss
-
Supports diverse voltage and current inputs
-
16-bit resolution ensures precise measurement
-
Built-in filtering and scaling for signal integrity
-
Compact size for easy rack integration
-
Reliable and low power consumption
FAQ
1. How many channels does the module support?
8 differential channels.
2. What input voltage ranges are available?
0–5V, 1–5V, 0–10V, -10–10V DC.
3. What current input ranges are supported?
0–20mA and 4–20mA DC.
4. What is the input impedance?
Voltage: 1 MΩ; Current: 250 Ω.
5. What is the resolution of the module?
16-bit analog-to-digital conversion.
6. What is the operating temperature range?
-10°C to 55°C.
7. What is the typical power supply?
24V DC.
8. Does the module provide signal filtering or scaling?
Yes, it has built-in scaling and filtering for signal integrity.
9. What are the physical dimensions of the module?
28.9 × 100 × 83.2 mm.
10. What is the weight of the module?
0.2 kg.
